Standard PF-P310 - Sheet Flow

（3）
2ndBuckle
1stBuckle
FeedRoller
Stoppers
3rdDriveRoller
2ndDriveRoller
1stDriveRoller

TransportRoller
FoldRoller
FoldRoller
Deflector
The Other Folding Patterns
Single Fold

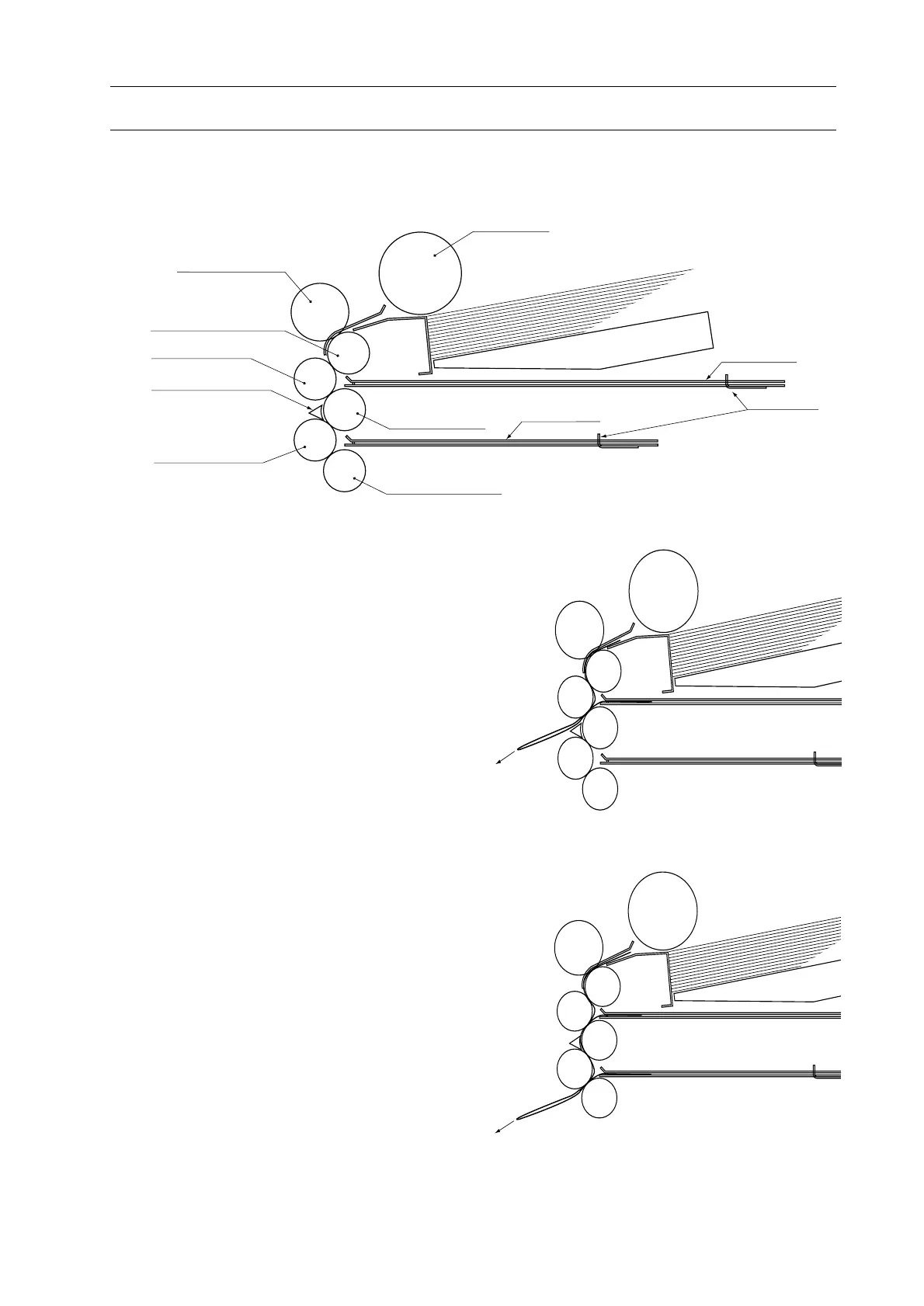

3. Sheet Flow
1. Feed roller feeds sheet to transport roller.
2. Sheet is nipped between 1st drive roller and
fold roller and then transported to 1st
buckle.
3. When sheet reaches to stopper in 1st buckle,
sheet is buckled and the buckled part of
sheet is nipped between 2nd drive roller and
fold roller.
4-1. In the case of single fold, deflector moves
to the right and sheet is delivered to tray.
4-2. In the case of the other folding patterns,
deflector moves to the left and sheet folded
between 2nd drive roller and fold roller is
transported to 2nd buckle.
5. When sheet reaches to stopper in 2nd
buckle, sheet is buckled and the buckled part
of sheet is nipped between 3rd drive roller
and fold roller.
6. Sheet is folded and delivered to tray.
Tray
Tray
