Stanley BR67 User Manual

BR67 User Manual ◄ 23
ITEM
PART
NO
QTY. DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 O-RING 2-5/8 X 2-7/8 X 1/8 -231
5 04074 1 ROD WIPER (DISOGRIN #006-021)
6 04080 1 BREAKER FOOT
7 04081 1 HEX BUSHING 1-1/8"
8 04983 1 FOOT LATCH BOLT
9 04984 1 NYLOCK NUT 3/4-16UNF
10 04985 2 SPRING WASHER
11 05464 1 SEAL INSERT
12 08411 1 DETENT
13 34127 1 CUP SEAL (DISOGRIN #500-151-000A)
6
7
13
11
12
10
8
1
9
3
2
4
5
ALIGN HEX AS SHOWN

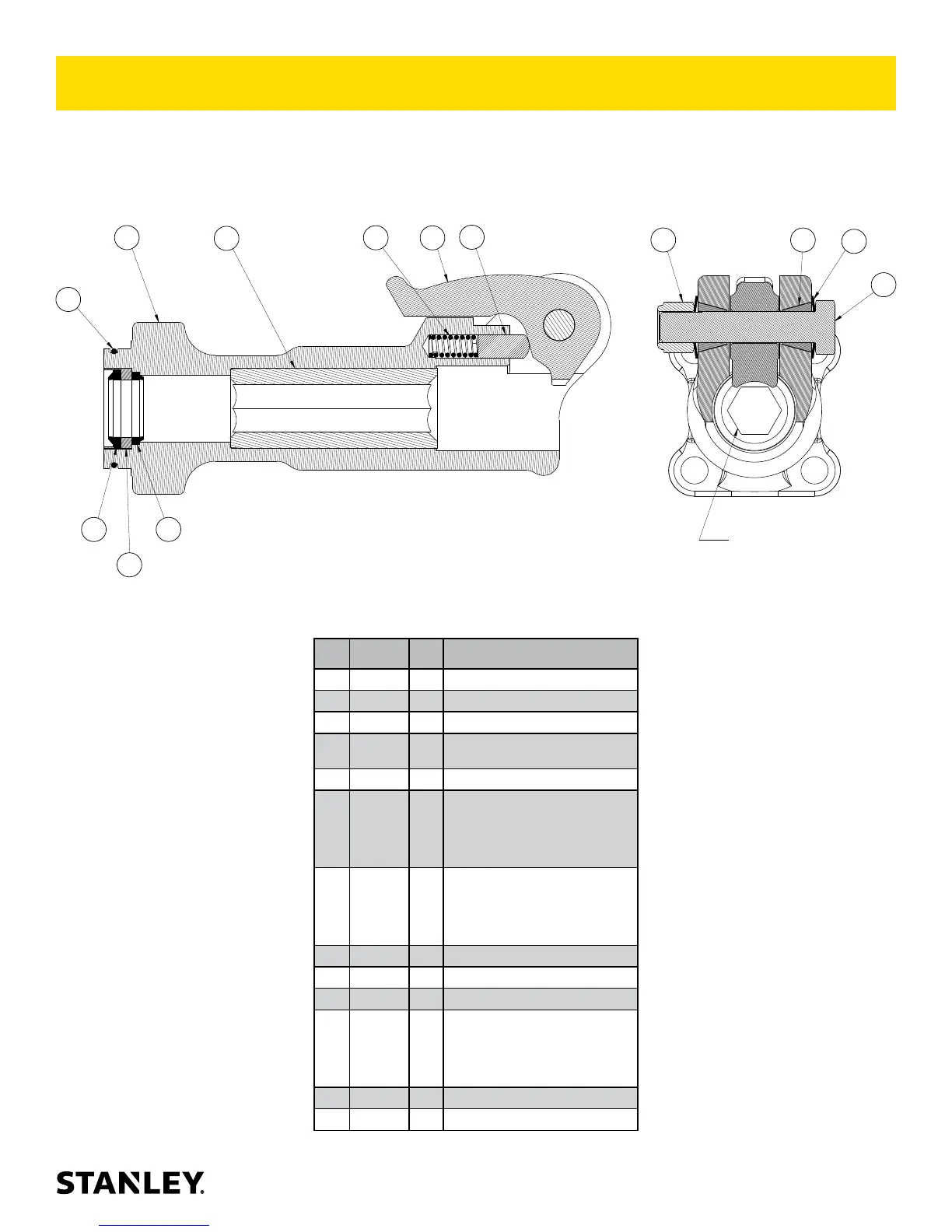

BREAKER FOOT ASSEMBLY 05466
ITEM
NO. PART NO. QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 0-RING (2-5/8 X 2-7/8 X 1/8-
231)
5 04074 1 ROD WIPER
6 05466 1 BREAKER FOOT (IF
ORDERING THE FOOT, YOU
MUST ORDER COMPLETE
FOOT ASSEMBLY, PART
NUMBER 05466)
7 05466 1 HEX BUSHING (IF ORDERING
HEX BUSHING, YOU MUST
ORDER COMPLETE FOOT
ASSEMBLY, PART NUMBER
05466)
8 04983 1 FOOT LATCH BOLT
9 04984 1 NYLOCK NUT 3/4-16 UNF
10 04985 2 SPRING WASHER
11 05466 1 SEAL INSERT (IF ORDERING
SEAL INSERT, YOU MUST
ORDER COMPLETE FOOT
ASSEMBLY, PART NUMBER
05466)
12 08411 1 DETENT
13 34127 1 CUP SEAL
BREAKER FOOT ASSEMBLY FOR MODEL BR67120, BR67120D & BR67125.
