Stanley BR67 User Manual

BR67 User Manual ◄ 27
ITEM
PART
NO
QTY. DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 O-RING 2-5/8 X 2-7/8 X 1/8 -231
5 04074 1 ROD WIPER (DISOGRIN #006-021)
6 04081 1 HEX BUSHING 1-1/8"
7 04983 1 FOOT LATCH BOLT
8 04984 1 NYLOCK NUT 3/4-16UNF
9 04985 2 SPRING WASHER
10 05464 1 SEAL INSERT
11 06643 1 BREAKER FOOT U/W
12 08411 1 DETENT
13 34127 1 CUP SEAL (DISOGRIN #500-151-000A)
2
3
4
5
6
10
11
12
13
1
7
8 9

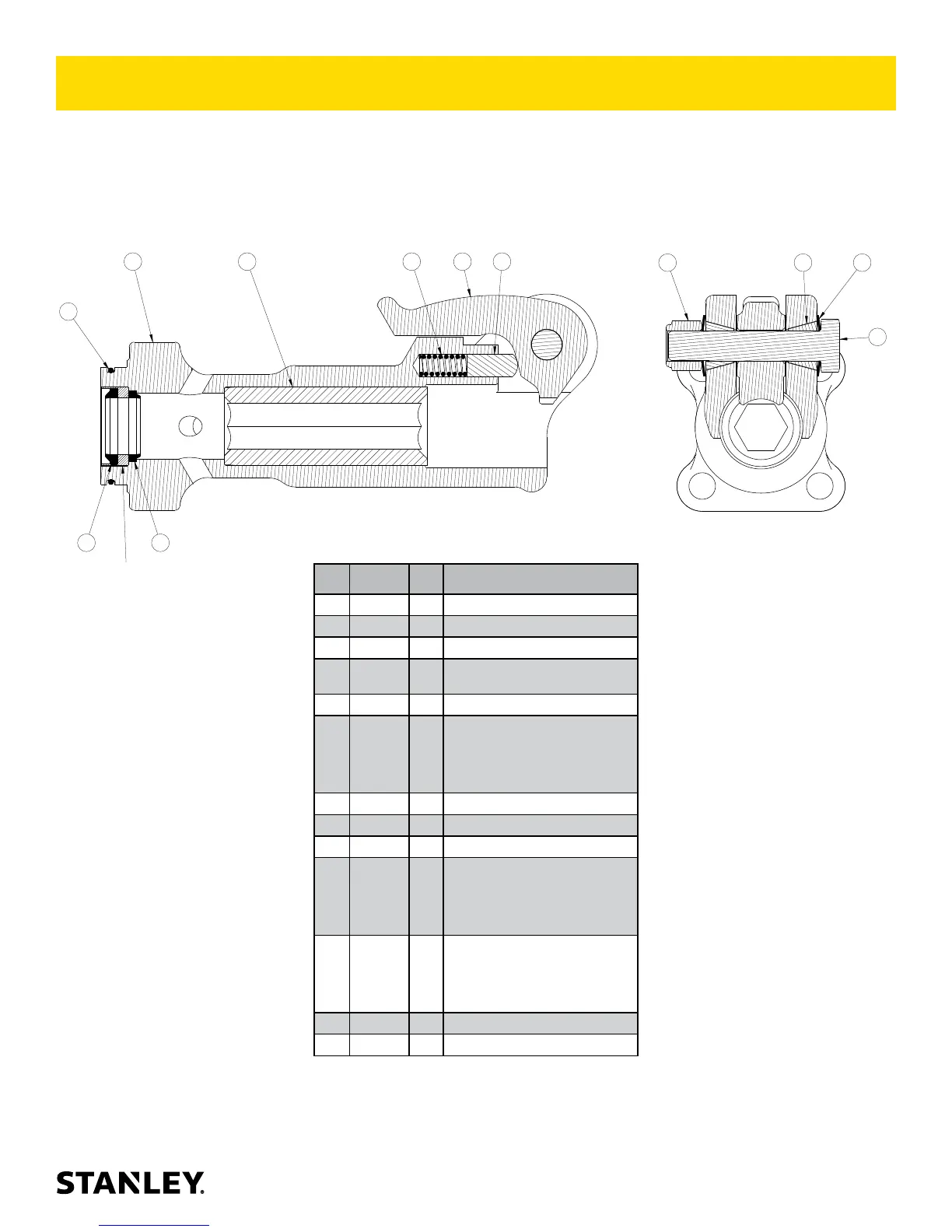

BREAKER FOOT ASSEMBLY 08855
ITEM
NO. PART NO. QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 0-RING (2-5/8 X 2-7/8 X 1/8-
231)
5 04074 1 ROD WIPER
6 08855 1 HEX BUSHING -1 1/8” (IF
ORDERING HEX BUSHING,
YOU MUST ORDER
COMPLETE FOOT ASSEMBLY,
PART NUMBER 08855)
7 04983 1 FOOT LATCH BOLT
8 04984 1 NYLOCK NUT 3/4-16 UNF
9 04985 2 SPRING WASHER
10 08855 1 SEAL INSERT (IF ORDERING
SEAL INSERT, YOU MUST
ORDER COMPLETE FOOT
ASSEMBLY, PART NUMBER
08855)
11 08855 1 BREAKER FOOT U/W (IF
ORDERING SEAL FOOT YOU
MUST ORDER COMPLETE
FOOT ASSEMBLY, PART
NUMBER 08855)
12 08411 1 DETENT
13 34127 1 CUP SEAL
BREAKER FOOT ASSEMBLY FOR MODEL BR67320 & BR67120U.

Stanley BR67 Specifications

General

Brand	Stanley
Model	BR67
Category	Power Tool
Language	English
