ITEM
PART
NO
QTY. DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 O-RING 2-5/8 X 2-7/8 X 1/8 -231
5 04074 1 ROD WIPER (DISOGRIN #006-021)
6 04983 1 FOOT LATCH BOLT
7 04984 1 NYLOCK NUT 3/4-16UNF
8 04985 2 SPRING WASHER
9 05464 1 SEAL INSERT
10 07514 1 COMPRESSION COIL SPRING
11 07517 1 HEX BUSHING 1-1/8"
12 07521 1 BREAKER FOOT
13 07522 1 RETAINING RING
14 08115 1 COLLAR SUPPORT ASSY.
15 08411 1 DETENT
16 34127 1 CUP SEAL (DISOGRIN #500-151-000A)
4
3
6
1
7
2
5
16
12
11
13
14
15
8
8
110
9
ALIGN HEX AS SHOWN

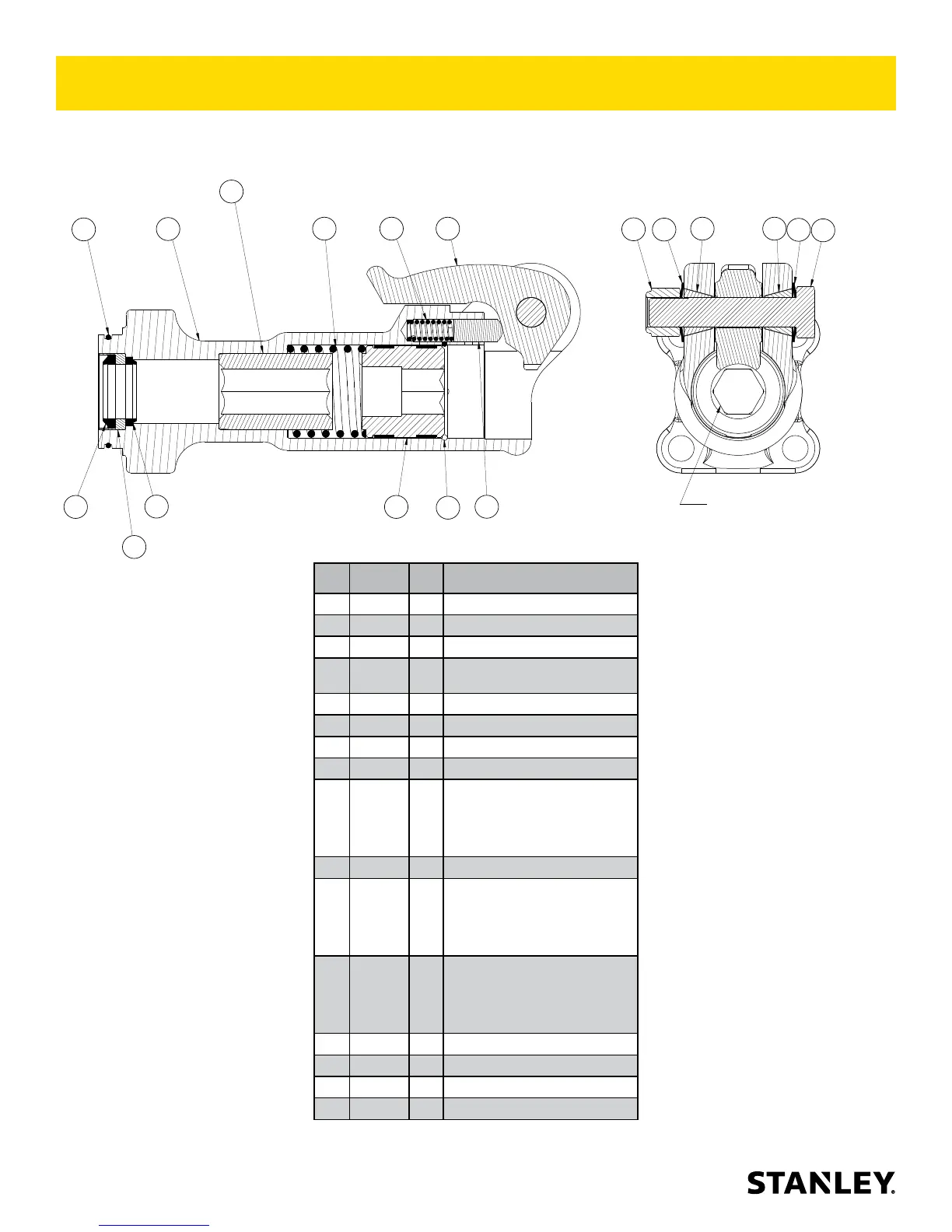

BREAKER FOOT ASSEMBLY 07525
ITEM
NO. PART NO. QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 0-RING (2-5/8 X 2-7/8 X 1/8-
231)
5 04074 1 ROD WIPER
6 04983 1 FOOT LATCH BOLT
7 04984 1 NYLOCK NUT 3/4-16 UNF
8 04985 2 SPRING WASHER
9 07525 1 SEAL INSERT (IF ORDERING
SEAL INSERT, YOU MUST
ORDER COMPLETE FOOT
ASSEMBLY, PART NUMBER
07525)
10 07514 1 COMPRESSION SPRING COIL
11 07525 1 HEX BUSHING 1-1/8”
(IF ORDERING HEX
BUSHING, YOU MUST ORDER
COMPLETE FOOT ASSEMBLY,
PART NUMBER 07525)
12 07525 1 BREAKER FOOT (IF
ORDERING FOOT YOU MUST
ORDER COMPLETE FOOT
ASSEMBLY, PART NUMBER
07525
13 07522 1 RETAINING RING
14 08115 1 COLLAR SUPPORT ASSY.
15 08411 1 DETENT
16 34127 1 CUP SEAL
BREAKER FOOT ASSEMBLY FOR MODEL BR67120E.
