Stanley BR67 User Manual

BR67 User Manual ◄ 25
ITEM
PART
NO
QTY. DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 O-RING 2-5/8 X 2-7/8 X 1/8 -231
5 04074 1 ROD WIPER (DISOGRIN #006-021)
6 04983 1 FOOT LATCH BOLT
7 04984 1 NYLOCK NUT 3/4-16UNF
8 04985 2 SPRING WASHER
9 05464 1 SEAL INSERT
10 07514 1 COMPRESSION COIL SPRING
11 07518 1 HEX BUSHING 1-1/4"
12 07521 1 BREAKER FOOT
13 07522 1 RETAINING RING
14 08116 1 COLLAR SUPPORT ASSY. 1-1/4
15 08411 1 DETENT
16 34127 1 CUP SEAL (DISOGRIN #500-151-000A)
ALIGN HEX AS SHOWN
4
3
6
1
7
2
5
16
12
11
13
14
15
8
8
1
10
9

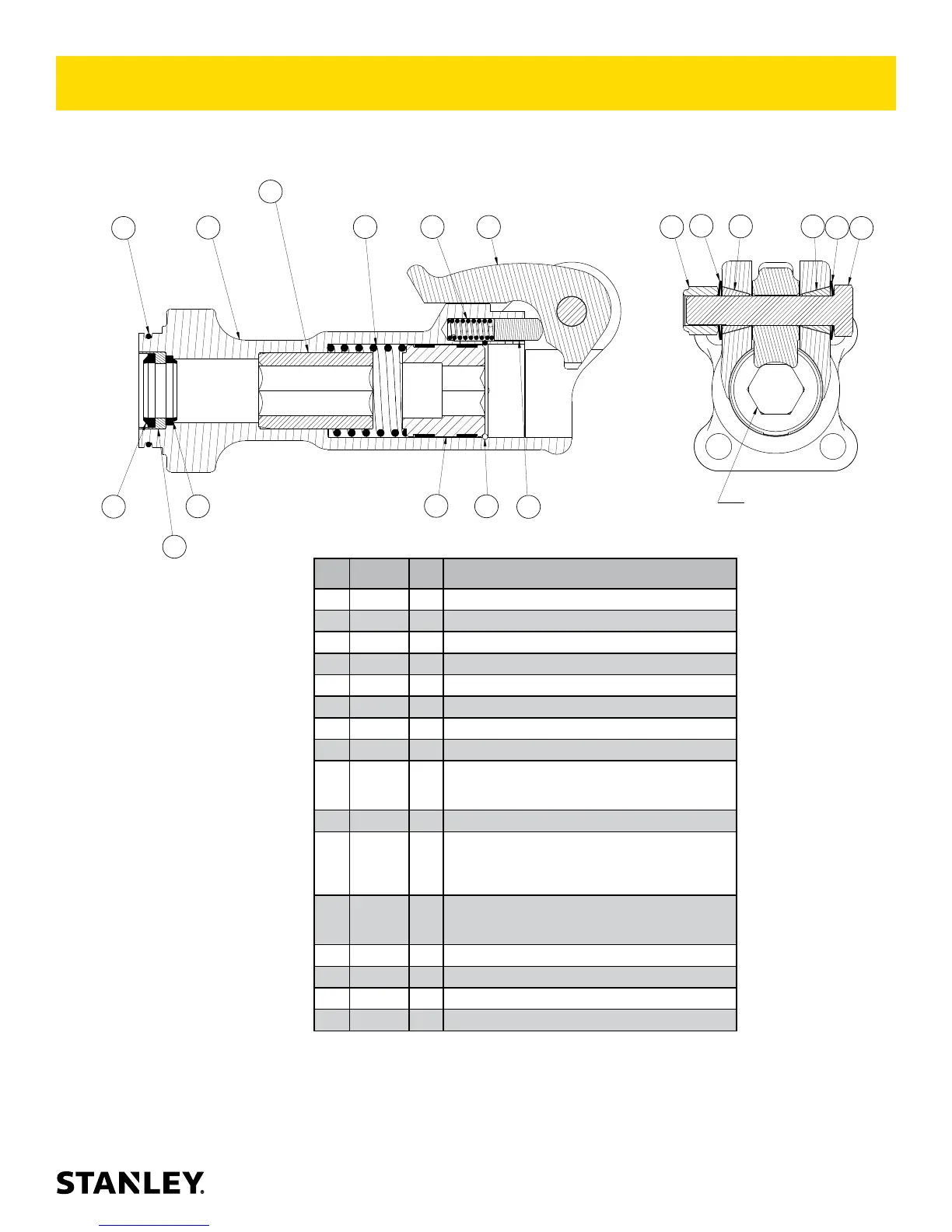

BREAKER FOOT ASSEMBLY 07524
ITEM
NO. PART NO. QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 COMPRESSION COIL SPRING
3 01837 1 LATCH (CASTING)
4 04073 1 0-RING (2-5/8 X 2-7/8 X 1/8-231)
5 04074 1 ROD WIPER
6 04983 1 FOOT LATCH BOLT
7 04984 1 NYLOCK NUT 3/4-16 UNF
8 04985 2 SPRING WASHER
9 07524 1 SEAL INSERT (IF ORDERING SEAL INSERT,
YOU MUST ORDER COMPLETE FOOT
ASSEMBLY, PART NUMBER 07524)
10 07514 1 COMPRESSION SPRING COIL
11 07524 1 HEX BUSHING 1-1/4”
(IF ORDERING HEX BUSHING, YOU MUST
ORDER COMPLETE FOOT ASSEMBLY, PART
NUMBER 07524)
12 07524 1 BREAKER FOOT (IF ORDERING FOOT, YOU
MUST ORDER COMPLETE FOOT ASSEMBLY,
PART NUMBER 07524)
13 07522 1 RETAINING RING
14 08116 1 COLLAR SUPPORT ASSY. 1/1/4”
15 08411 1 DETENT
16 34127 1 CUP SEAL
BREAKER FOOT ASSEMBLY FOR MODEL BR6713015E & BR67130E.
