DH USER MANUAL 17
Item SHT No. Qty Description
1 04353 8 NYLOCK NUT
2 04585 16 WASHER
3 06638 4 HSHCS
4 07860 8 HSHCS
7 20871 2 HHCS
8 20908 1 HHCS
9 44956 4 NYLOCK NUT
10 47351 1
DECAL, COMPOSITE
WARNING
11 52539 1 SOUND POWER LEVEL
12 67709 1 INSPECTION COVER
15 69803 1 BRACKET WELDMENT
16 67740 1 HOUSING
17 67747 1 HAMMER MACHINING
18 67748 1 HAMMER PEG
19 67749 1 PEG LOCKING PLATE
20 67750 1 HAMMER SAFETY PIN
21 67751 1 RIGHT SIDE LIFT LUG
22 67752 1 CENTER LIFT LUG
23 67753 1 MOTOR SPROCKET
24 67754 1 CHAIN
25 67755 1 SHAFT CYCLONE
26 67756 1 SPROCKET SPACER
27 67757 1 ADJUSTER BRACKET
29 67767 2 POLY-BUSH
30 67768 3 DECAL, DH1500
31 69788 1 MANIFOLD ASSEMBLY
32 67788 2 HEX NUT END
33 67789 6 WASHER
34 67790 2 HHCS
35 67791 2
DECAL, KEEP CLEAR OF
HAMMER
36 67792 1 HHCS
37 67796 2 LIFT LUG SPACER
38 67797 1 HHCS
39 67798 1 FLEX LOCK NUT
40 67799 2 HSHCS #12-24UNCX 2.1
Item SHT No. Qty Description
41 67801 1 HEX NUT
42 67802 1 HEX JAM NUT
43 67803 1 WASHER
44 67804 1 HHCS
45 67820 1 HHCS
46 67852 1 LEFT SIDE LIFT LUG
47 67859 1 DECAL, TRAVEL LOCK
48 67860 2 DECAL, TOPPLING HAZARD
49 67861 1 DECAL, STABILITY HAZARD
50 67869 2 HOSE
51 NO ITEM
52 68023 1 LOWER SPROCKET ASSY
53 68340 2 TRI-LOCK TOP LOCK NUT
54 68542 1 HYDRAULIC MOTOR
55 68578 4 HHCS
56 68641 1 CE SPECIFICATION PLATE
59 371050 3 WASHER
60 371500 1 NYLOCK NUT
61 371507 2 NYLOCK NUT
62 67746 1 HAMMER STOP
63 67742 1 TRAVELING LOCK
64 67741 1 HOUSING COVER
65 70788 1 NYLOCK NUT
66 00354 2 O-RING

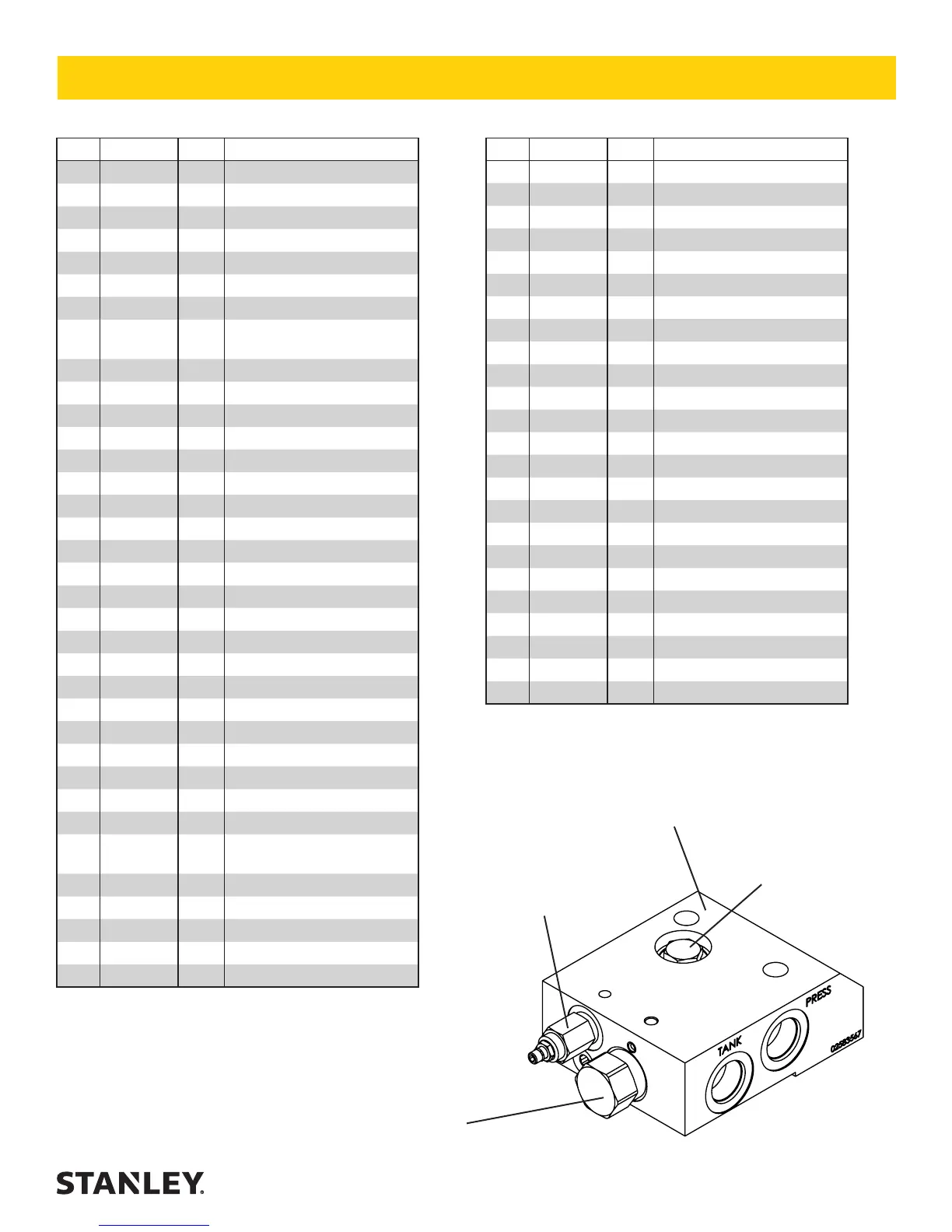

DH1500 PARTS LIST
CHECK VALVE
P/N-71489
PRESSURE
SENSING VALVE
P/N-71491
MANIFOLD ASSEMBLY
P/N-69788
RELIEF VALVE
P/N-71490
