DH USER MANUAL 21
Item SHT No. Qty Description
1 00719 2 NYLOCK NUT
2 04539 2 WASHER
3 04786 1 WASHER
4 06638 4 HSHCS
6 18600 10 NYLOCK NUT
8 20871 12 HHCS
9 47351 1
DECAL, COMPOSITE
WARNING
10 67712 1 PEG LOCKING PLATE
11 67713 1 HAMMER SAFETY PIN
12 67714 1 RIGHT SIDE LIFT LUG
13 67716 3 CENTER LIFT LUG
16 67738 1 CHAIN WEAR SHEET
17 67764 1 HAMMER MACHINING
18 67771 1 HOUSING
19 67775 1 LOWER SHAFT
20 69790 1 MANIFOLD ASSEMBLY
22 67779 2 POLY-BUSH
23 67780 3 DECAL, DH9000
24 67781 1 BRACKET WELDMENT
25 67790 4 HHCS
26 67791 2
DECAL, KEEP CLEAR OF
HAMMER
27 67805 4 HHCS
28 67808 1 HHCS
29 67809 4 LIFT LUG SPACER
30 67853 1 LEFT SIDE LIFT LUG
31 67859 1 DECAL, TRAVEL LOCK
32 67860 2 DECAL, TOPPLING HAZARD
33 67861 1 DECAL, STABILITY HAZARD
34 67862 1 DECAL, EQUIP DAMAGE
35 67869 1 HOSE
36 67869 1 HOSE
37 67896 1 CHAIN
38 68213 1 DRIVE SHAFT
39 68277 2 SPROCKET
40 68280 1 HYDRAULIC MOTOR
Item SHT No. Qty Description
41 68331 2 FLANGE BEARING PILOTED
42 68332 2 KEY
43 68366 1 HAMMER PEG
44 68503 2 FLANGE BEARING
45 68504 2 SHAFT ADJUSTER BRACKET
46 68506 2 HHCS
47 68519 4 SETSCREW
48 68520 1 HHCS
49 68521 2 SHOULDER SCREW
50 68578 6 HHCS
51 69654 5 HHCS
52 70982 1 CE SPEC PLATE
54 370252 2 HHCS
55 370253 4 HHCS
56 371050 16 WASHER
57 371500 16 NYLOCK NUT
58 371506 4 HEX NUT
59 67628 6 NYLOCK NUT
60 372037 1 SERIAL NUMBER PLATE
61 372155 2 DRIVE PIN
62 67773 1 TRAVELING LOCK
63 68206 1 HOUSING COVER
64 00354 2 O-RING

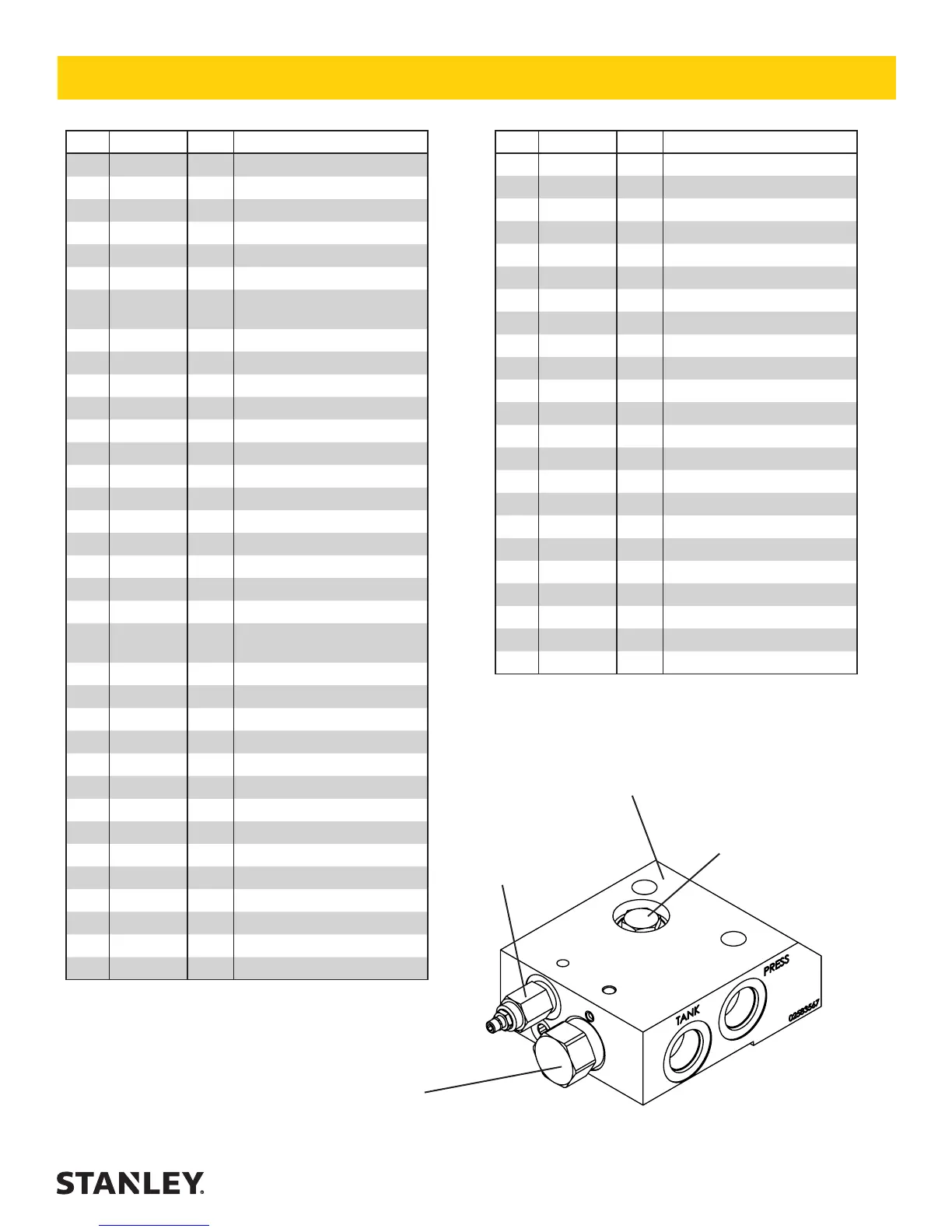

DH9000 PARTS LIST
CHECK VALVE
P/N-71489
PRESSURE
SENSING VALVE
P/N-71491
MANIFOLD ASSEMBLY
P/N-69790
RELIEF VALVE
P/N-71490
