Stanley DH3500 User Manual

DH USER MANUAL 19
Item SHT No. Qty Description
1 06638 4 HSHCS
4 20871 8 HHCS
5 23630 2 HHCS
6 44956 4 NYLOCK NUT
7 47351 1
DECAL, COMPOSITE
WARNING
8 60917 1 SOUND POWER LEVEL
9 67703 1 HOUSING
10 67709 1 INSPECTION COVER
11 67710 1 HAMMER MACHINING
12 67711 1 HAMMER PEG
13 67712 1 PEG LOCKING PLATE
14 67713 1 HAMMER SAFETY PIN
15 67714 1 RIGHT SIDE LIFT LUG
16 67716 1 CENTER LIFT LUG
17 67717 1 MOTOR SPROCKET
18 67718 1 CHAIN
19 67719 1 SHAFT, CYCLONE
20 67720 1 SPROCKET SPACER
21 67721 1 ADJUSTER BRACKET
25 67734 2 POLY-BUSH
26 67735 3 DECAL, DH3500
27 67736 1 BRACKET WELDMENT
28 69789 1 MANIFOLD ASSEMBLY
29 67787 1 HHCS
30 67788 2 HEX NUT
31 67789 5 WASHER
32 67791 2
DECAL, KEEP CLEAR OF
HAMMER
33 67795 1
NYLOCK NUT, HOLDS
SPROCKET TO MOTOR
34 67801 1 HEX NUT
35 67802 1 HEX JAM NUT
36 67803 1 WASHER
37 67808 1 HHCS
38 67809 2 LIFT LUG SPACER
39 67810 1 SCREW FOR SPACER
40 67811 1 NUT FOR SPACER
Item SHT No. Qty Description
41 67812 2 SCREW FOR CHAIN
42 67813 2 CRIMP LOCK NUT
43 67820 1 HHCS
44 67853 1 LEFT SIDE LIFT LUG
45 67859 1 DECAL, TRAVEL LOCK
46 67860 2 DECAL, TOPPLING HAZARD
47 67861 1 DECAL, STABILITY HAZARD
48 67869 2 HOSE
49 NO ITEM
50 68024 1 LOWER SPROCKET ASSY
51 68543 1 HYDRAULIC MOTOR
52 68578 4 HHCS
53 68581 1 CE SPECIFICATION PLATE
56 370352 1 HHCS
57 371050 10 WASHER
58 371052 4 WASHER
59 371500 8 NYLOCK NUT
60 371501 2 NYLOCK NUT
61 371507 1 NYLOCK NUT
62 67708 1 HAMMER STOP
63 67705 1 TRAVELING LOCK
64 67704 1 HOUSING COVER
65 02504 2 CAPSCREW
66 00354 2 O-RING

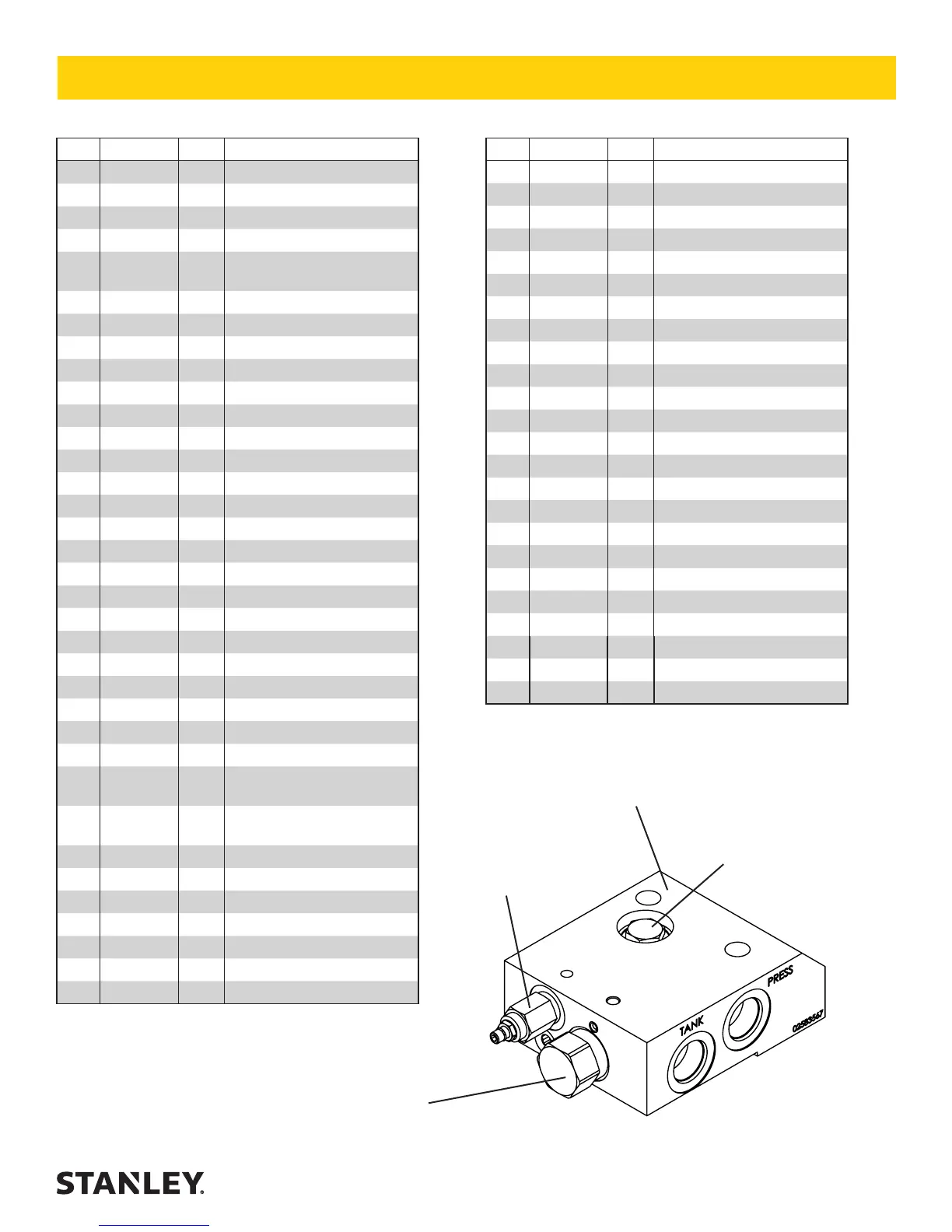

DH3500 PARTS LIST
CHECK VALVE
P/N-71489
PRESSURE
SENSING VALVE
P/N-71491
MANIFOLD ASSEMBLY
P/N-69789
RELIEF VALVE
P/N-71490
