* Insulated metal chimneys conforming to
B.S.4543 (a galvanised finish is not suitable
for exterior use).
* Clay flue linings conforming to B.S. EN
1457.
* Pre-cast concrete chimney blocks,
incorporated into the building structure. It is
particularly important that the correct
connection block be provided at the base
of the flue conforming to B.S. 3572.
* Cast iron or acid resistant vitreous enamel
lined mild steel conforming to B.S. 41.
* Sheet metal conforming to B.S. 4076.
SAFETY VALVE
A non-adjustable 3 bar safety valve must be fitted to
the primary flow pipe adjacent to boiler connection
ensuring that any discharge will not create a hazard
to occupants or cause damage to electrical compo-
nents or property.
The use of room thermostats, radiator thermostatic
valves, domestic hot water controllers, etc, can
greatly enhance a heating system and we recom-
mend their use.
Only competent personnel should be employed to
carry out your heating installation.
PIPE FITTINGS
Materials used for installation work should be resis-
tant, sound and should conform to the current edi-
tions of the following or their equivalent.
1.1 Ferrous Materials
BS 4127 Stainless steel tubes.
BS 1387 Steel tubes.
BS 1740 Steel pipe fittings.
BS 6956 Jointing Materials
1.2 Non-Ferrous Materials.
EN 29453 Soft Solder Alloys .
BS 864 Compression tube fittings.
BS 2871 & BS E.N. 1057 Copper and
Copper Alloys.
INDIRECT DOMESTIC CYLINDER
This cooker can only be connected to an in-direct
domestic cylinder of 136 litres (30 gallons).
See Fig. 12.

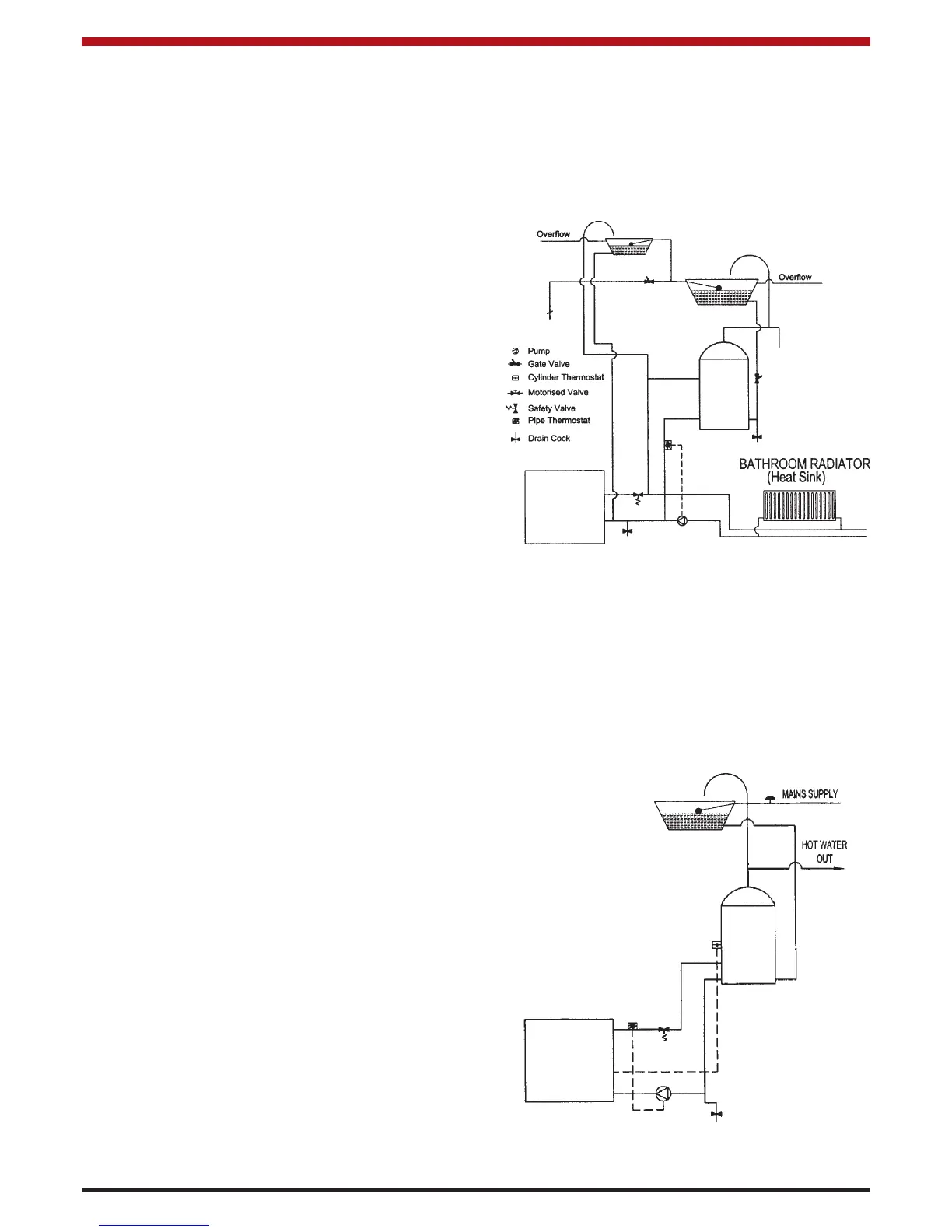

Fig.12
10
HEATING
Care should be taken to ensure that the heating sys-
tem is correctly installed and that it complies with all
relevant codes of practice.
Note: We strongly advise the use of pipe lagging if
the installation is likely to be exposed to situations
where the temperature will dip to a level consistent
with frost.
The HPB model produces up to 5.8 kW to water on
maximum setting therefore it is necessary to fit a
heat sink radiator. See output on page 3.
DIRECT DOMESTIC CYLINDER (DHW MODEL
ONLY)
A 113 litre (30 gallon) direct domestic cylinder can be
connected to this cooker. (See Fig. 13)
Fig.13
Errigal
Oil
Cooker
(HPB Model)
Errigal
Oil
Cooker
(DHW Model)
