18

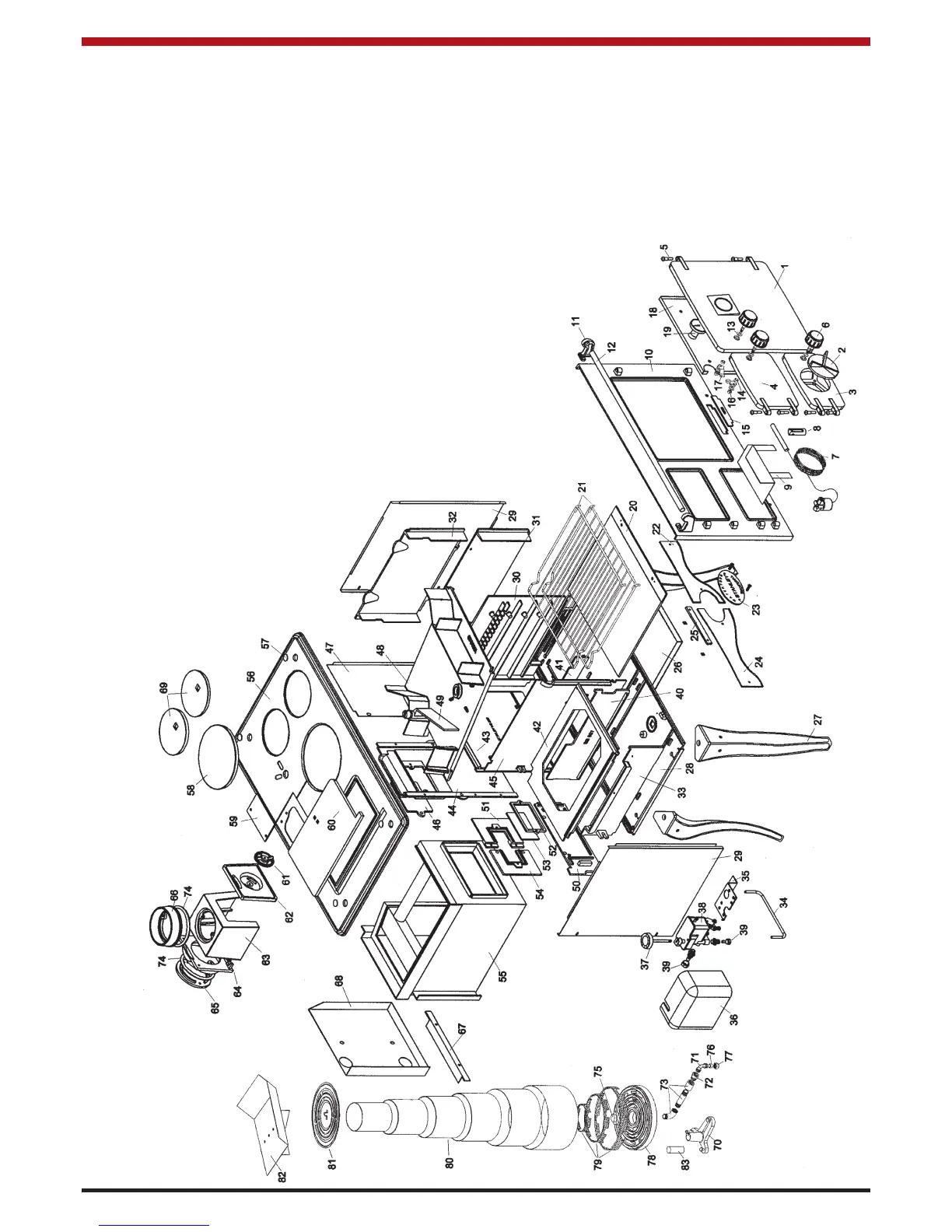

ERRIGAL OIL 20K EXPLODED VIEW
1. Oven Door
2. Spin Valve
3. Ashpit Door
4. Fire Door
5. Door Hinge
6. Door Knob
7. Fire Valve
8. Fire Valve Bracket
9. Air Distribution Baffle
10. Front
11. Towel Rail Bracket
12. Towel Rail
13. Door Knob Washer
14. Door Knob Spacer
15. Base Cleaning Door
16. Door Knob Locking
Nut
17. Door Catch
18. Oven Door Panel
19. Thermometer
20. Oven Bottom
21. Oven Shelves
22. Plinth R.H.S.
23. Nameplate
24. Plinth L.H.S.
25. Plinth Joining Clip
26. S.I. Base Protection Plate
27. Legs
28. Base
29. Sheet Iron Sides
30. R.H. Oven Side
31. Oven End Flue Bottom
32. Oven End Flue Top
33. Ashpit L.H.S.
34. Formed Fuel Line
35. Control Valve Bracket
36. Control Valve Cover
37. Control Knob
38. Oil Control Valve
39. 1/4” x 8mm Compression
Fitting
40. Ashpit R.H.S.
41. Flue Check
42. Grate Support Frame
43. Oven Back
44. Flue Back
45. LH Oven Side
46. Back Sealing Plate
47. Small Back Panel
48. Oven Top
49. Direct Damper
50. Ashpit Back
51. R.H. Window Frame
52. Viewing Glass Frame
53. Viewing Glass
54. L.H. Window Frame
55. S90 Boiler
56. Hob
57. Hob Rod Caps
58. Simmering Plate
59. Flue Deflector Plate
60. Hotplate
61. Bonnet Spin Valve
62. Bonnet Door
63. Bonnet
64. Back Outlet Adapter
65. Bonnet Blanking Plate
66. Bonnet Top Spigot
67. Boiler Rest
68. Large Back Panel
69. Cleaning Cup
70. Burner Stand
71. 1/4” x 8mm Compression
Elbow
72. Burner Pot Elbow Adapter
73. Carbon Leg Assembly
74. Bonnet Gasket
75. Centre Well Cap
76. 8mm Olive
77. 8mm Compression Nut
78. Burner
79. Wicks
80. Burner Shells
81. Burner Lid
82. Burner Baffle
83. Fixing Bolts
