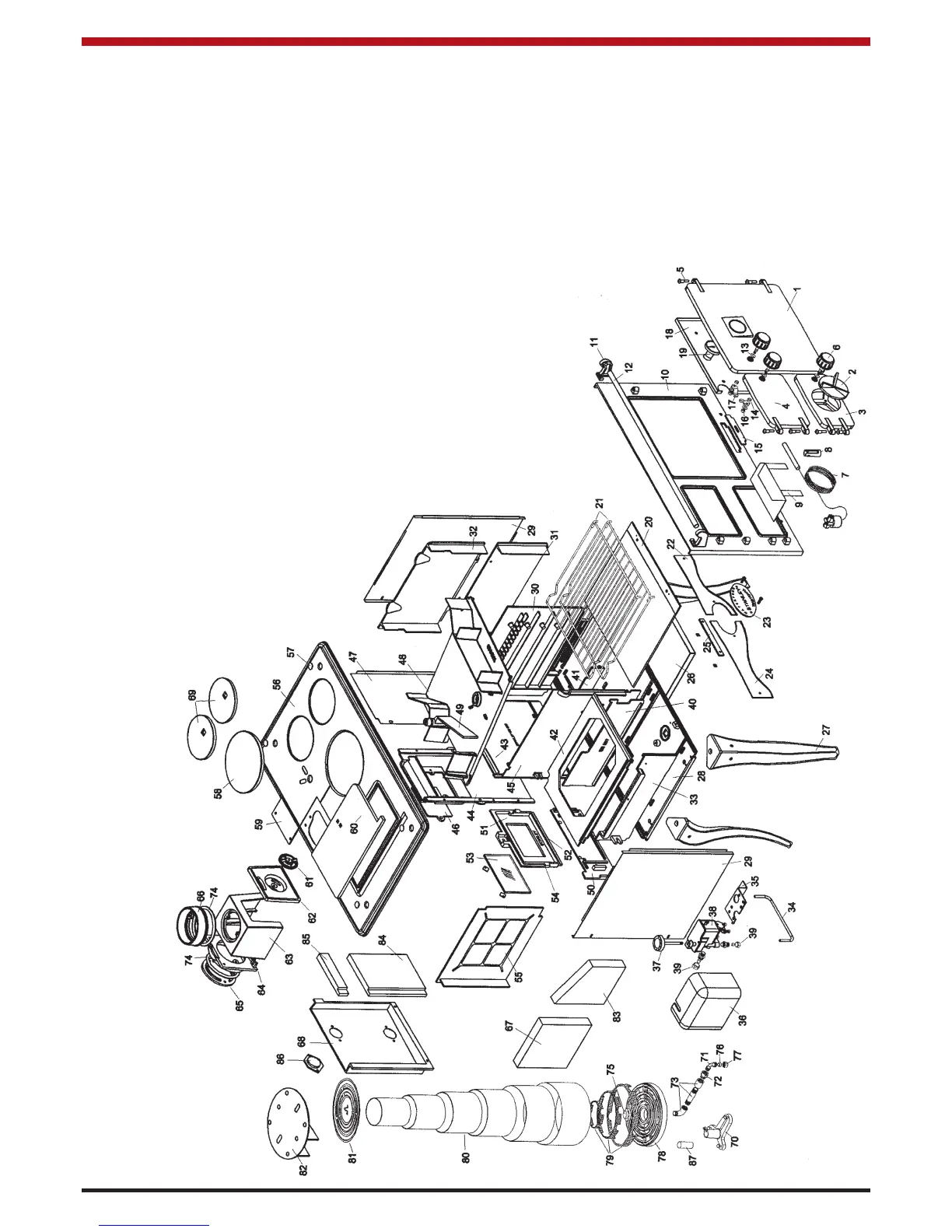

ERRIGAL OIL DRY EXPLODED VIEW
17. Door Catch 18. Oven Door Panel 19. Thermometer 20. Oven Bottom 21. Oven Shelves 22. Plinth R.H.S. 23. Nameplate 24. Plinth L.H.S. 25. Plinth Joining Clip 26. S.I. Base Protection
Plate
27. Legs 28. Base 29. Sheet Iron Sides 30. R.H. Oven Side 31. Oven End Flue
Bottom
32. Oven End Flue Top 33. Ashpit L.H.S. 34. Formed Fuel line 35. Control Valve
Bracket
36. Control Valve Cover 37. Control Knob 38. Oil Control Valve 39. 1/4” x 8mm
Compression Fitting
40. Ashpit R.H.S. 41. Flue Check 42. Grate Support Frame 43. Oven Back 44. Flue Back 45. L.H. Oven Side
46. Back Sealing Plate 47. Small Back Panel 48. Oven Top 49. Direct Damper 50. Ashpit Back 51. R.H. Window Frame 52. Viewing Glass Frame 53. Viewing Glass 54. L.H. Window Frame 55. Sham Cheek 56. Hob 57. Hob Rod Caps 58. Simmering Plate 59. Flue Deflector Plate 60. Hotplate 61. Bonnet Spin Valve 62. Bonnet Door 63. Bonnet 64. Back Outlet Adapter 65. Bonnet Blanking
Plate
66. Bonnet Top Spigot 67. RHS Back Fire Brick
(S90 No.2)
68. Back Panel 69. Cleaning Cup 70. Burner Stand 71. 1/4” x 8mm
Compression Elbow
72. Burner Pot Elbow
Adapter
73. Carton Leg Assembly 74. Bonnet Gasket 75. Center Wall Cap 76. 8mm Olive 77. 8mm Compression
Nut
78. Burner 79. Wicks 80. Burner Shells 81. Burner Lid 82. Burner Baffle 83. RHS Front Fire Brick
(S90 No.3)
84. Back Bottom Brick 85. Back Top Brick 86. Boiler Tapping
Blanking Plates
87. Burner Support Rod
1. Oven Door 2. Spin Valve 3. Ashpit Door 4. Fire Door 5. Door Hinge 6. Door Knob 7. Fire Valve 8. Fire Valve Bracket 9. Air Distribution
Baffle
10. Front 11. Towel Rail Bracket 12. Towel Rail 13. Door Knob
Washer
14. Door Knob Spacer 15. Base Cleaning
Door
16. Door Knob
Locking Nut
20
