10
ENGLISH

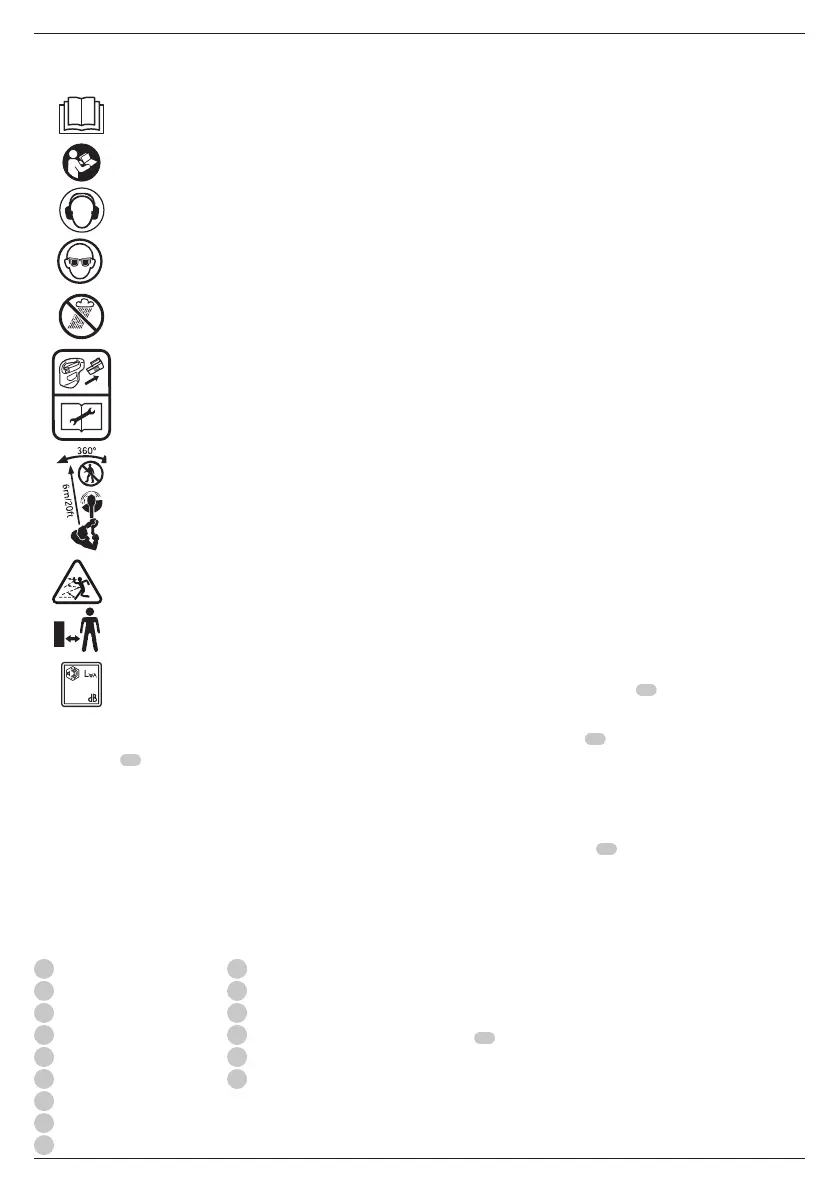

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Wear ear protection.
Wear eye protection.
Do not expose the tool to rain or high
humidity
or leave outdoors while it is raining.
Switch the tool off. Before performing any
maintenance on the tool, remove the battery
from the tool.
Keep people and animals at least 6 m away
from the work area.
Keep bystanders away.
96
Directive 2000/14/EC guaranteed
soundpower.
Date Code Position (Fig. J)
The date code
18
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2021 XX XX
Year of Manufacture
Description (Fig. A)
WARNING: Never modify the power tool or
any part of it. Damage or personal injury couldresult.
1
On/Off trigger
2
Lock-off button
3
Speed control switch
4
Main handle
5
Auxiliary handle
6
Height-adjust collar
7
Turn-to-edge collar
8
Trimmer head
9
Wire edge guide
10
Spool housing
11
Guard
12
Battery housing
13
Battery pack
14
Battery release button
15
Auxiliary handle
adjustment buttons
Intended Use
This Grass Trimmer is designed for professional
trimmingapplications.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This is not an edger and is not intended to be used foredging.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious
personal injury, turn tool off and disconnect battery
pack before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
WARNING: Use only STANLEYFATMAX
battery packs andchargers.
Inserting and Removing the Battery Pack
from the Tool (Fig. F)
NOTE: Make sure your battery pack
13
is fullycharged.
To Install the Battery Pack into the Tool
1. Align the battery pack
13
with the rails inside the tool
(Fig.C).
2. Slide it into the tool until the battery pack is firmly seated
and ensure that you hear the lock snap intoplace.
To Remove the Battery Pack from the Tool
1. Press the release button
14
and firmly pull the battery pack
out of the toolhandle (Fig. F).
2. Insert battery pack into the charger as described in the
charger section of thismanual.
Fuel Gauge Battery Packs (Fig. F)
Some STANLEYFATMAX battery packs include a fuel gauge
which consists of three green LED lights that indicate the level
of charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge
button
25
. A combination of the three green LED lights will
illuminate designating the level of charge left. When the level
of charge in the battery is below the usable limit, the fuel gauge
will not illuminate and the battery will need to berecharged.
NOTE: The fuel gauge is only an indication of the charge left on
the battery pack. It does not indicate tool functionality and is
