Stanley ProSet XT3 User Manual

12
ENGLISH
• Unscrew and remove the End Cap Assembly (76003-05110), including ORing (07003-00508). Observe
caution when removing the End Cap Assembly (76003-05110) as it will be subjected to acompressive
force from Spring (76003-02030).
• Remove Spring (76003-02030).
• If vacuum extraction is not required when using the Pin Tail Deector, unscrew and remove the Ejector
Nozzle (76003-05105 / 76004-05105) from the Piston (76003-02120 or 76003-02120).
6
D
C
B
A
E
F
G
H
E
A
B
C
D
F
5 4 3 2 1 7 8 9 10 11 12
1 2 3 4 5 6 7 8
G
WEIGHT
PART
NUMBER
PART
DESCRIPTION
EN 20286/BS 1916-H11
SURFACE
TEXTURE
DRILL
ANGULAR
1/2 DEGREE
N8
DECIMAL 0.13mm
INCH DIMENSIONS IN PARENTHESES
REMOVE ALL BURRS AND SHARP EDGES
DIMENSIONS IN mm UNLESS STATED
LUBRICATION
This document is the property of Avdel UK Limited
and is issued on the express terms that it is to be
treated as private and confidential and is not to
be communicated to any other person.
All patents, manufacturing and design rights are
reserved by Avdel UK Limited.
Avdel UK Limited
Pacific House, 2 Swiftfields,
Watchmead Industrial Estate,
Welwyn Garden City,
Hertfordshire, AL7 1LY
Registered in England: No. 315076
C.N.
ISSUE
DRAWING
DESCRIPTION
SURFACE TREATMENT
DRAWN DATE
HEAT TREATMENT
LIMITS
UNLESS
STATED
MATERIAL
Sheet:
Tool Assy - fixed bottle
A2
1 of 1
1:1
DRAWING
NUMBER
Scale:
Revision:
Size:
DO NOT SCALE

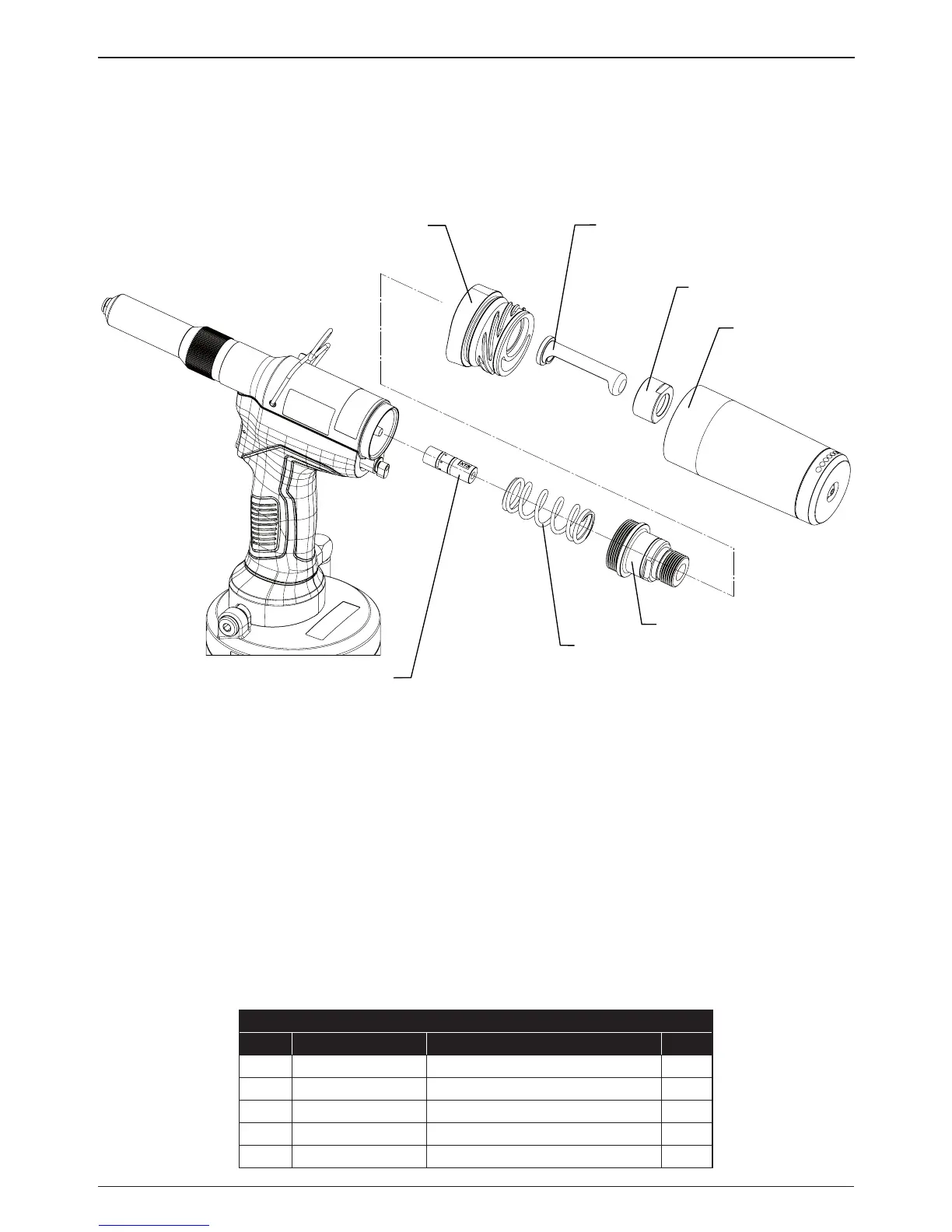

Fig. 11
Collector Adapter
76003-05104
Stem Deector
76003-05101
Retaining Nut
76003-05102
Stem Collector
76003-05200
End Cap Assembly
76003-05110
Spring
76003-02030
Ejector Nozzle
76003-05105
76004-05105
FITTING THE PIN TAIL DEFLECTOR KIT
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT3 AND PROSET XT4 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE PIN TAIL DEFLECTOR KIT.
Refer to g. 12 and the table 4 on below. Refer also to the Proset XT3 and Proset XT4 Service Manuals 07900-
09410 and 07900-09411.
Item numbers in bold refer to g. 12 and table 4.
Table 4 - PARTS LIST - PIN TAIL DEFLECTOR KIT
Item Part Number Description Qty
1 76003-20101 Pin Tail Deector 1
2 76003-20102 Deector Retaining Nut 1
3 76003-20103 Collector Adapter Cover 1
4 76003-20104 Vacuum Shut-o Nozzle 1
5 07003-00511 ORing 1
