7. FIXED COLLECTOR BOTTLE KIT
The Fixed Collector Bottle an alternative to the standard stem collector and allows greater storage capacity for
collection of large rivet stems. To replace the stem collector with the Fixed Collector proceed as follows:
PREPARING THE BASE TOOL TO ACCEPT THE FIXED COLLECTOR BOTTLE KIT
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT3 AND PROSET XT4 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE FIXED COLLECTOR BOTTLE KIT.
Refer to g.16 below. Refer also to the Proset XT3 and Proset XT4 Service Manuals 07900-09410 and 07900-
09411.
6
D
C
B
A
E
F
G
H
E
A
B
C
D
F
5 4 3 2 1 7 8 9 10 11 12
1 2 3 4 5 6 7 8
G
WEIGHT
PART
NUMBER
PART
DESCRIPTION
EN 20286/BS 1916-H11
SURFACE
TEXTURE
DRILL
ANGULAR
1/2 DEGREE
N8
DECIMAL 0.13mm
INCH DIMENSIONS IN PARENTHESES
REMOVE ALL BURRS AND SHARP EDGES
DIMENSIONS IN mm UNLESS STATED
LUBRICATION
This document is the property of Avdel UK Limited
and is issued on the express terms that it is to be
treated as private and confidential and is not to
be communicated to any other person.
All patents, manufacturing and design rights are
reserved by Avdel UK Limited.
Avdel UK Limited
Pacific House, 2 Swiftfields,
Watchmead Industrial Estate,
Welwyn Garden City,
Hertfordshire, AL7 1LY
Registered in England: No. 315076
C.N.
ISSUE
DRAWING
DESCRIPTION
SURFACE TREATMENT
DRAWN DATE
HEAT TREATMENT
LIMITS
UNLESS
STATED
MATERIAL
Sheet:
Tool Assy - fixed bottle
A2
1 of 1
1:1
DRAWING
NUMBER
Scale:
Revision:
Size:
DO NOT SCALE
Collector Adapter
76003-05104

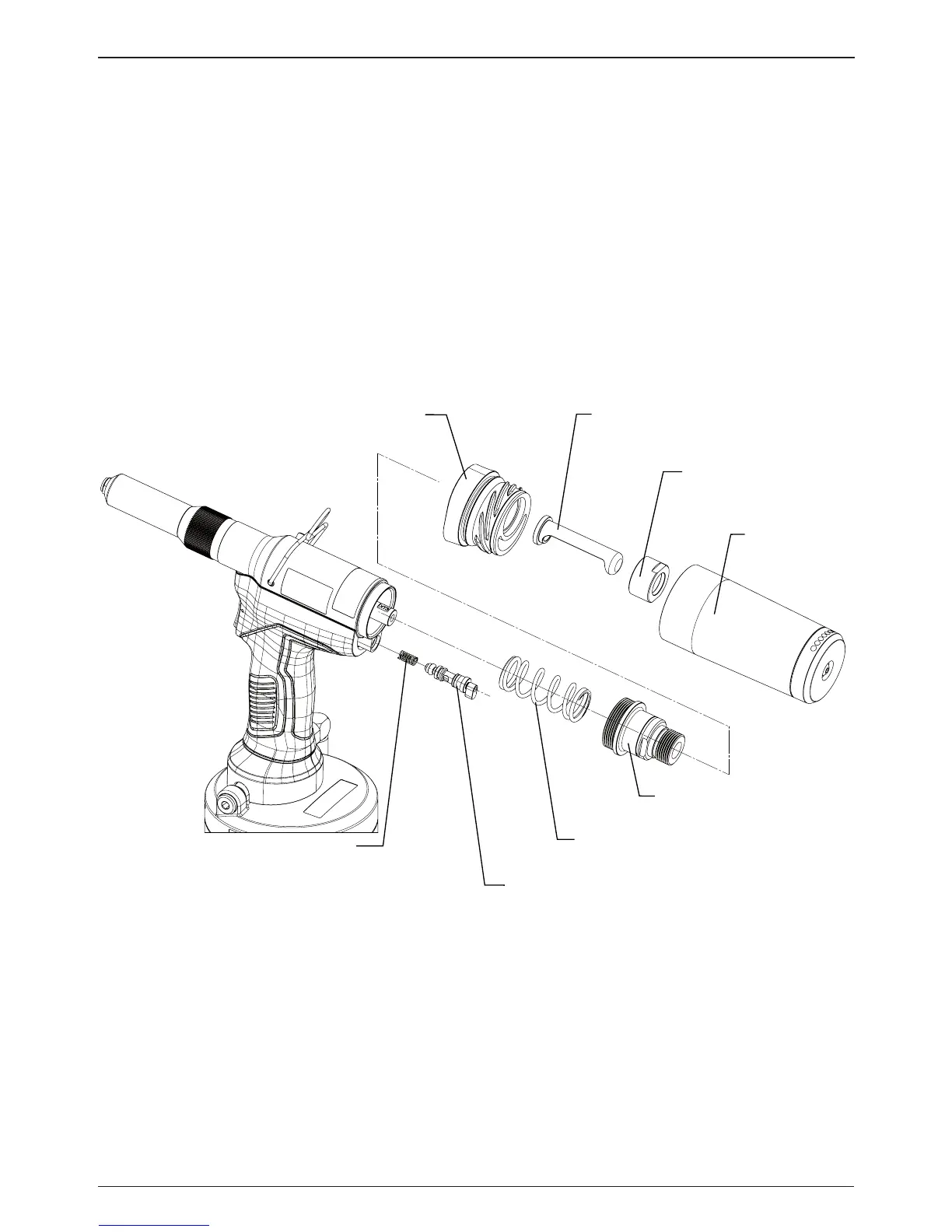

Fig. 16 Stem Deector
76003-05101
Retaining Nut
76003-05102
Stem Collector
76003-05200
End Cap Assembly
76003-05110
Spring
76003-02030
MCS Valve Assembly
76003-05300
Spring
76003-05304
• The air supply must be disconnected.
• Rotate Stem Collector (76003-05200) anti-clockwise and remove from the Collector Adapter (76003-
05104).
• Unscrew and remove the Deector Retaining Nut (76003-05102) and the Stem Deector (76003-05101).
• Remove the Collector Adapter (76003-05104), including ORing (07003-00530).
• Unscrew and remove the End Cap Assembly (76003-05110), including ORing (07003-00508). Observe
caution when removing the End Cap Assembly (76003-05110) as it will be subjected to acompressive
force from Spring (76003-02030).
• Remove Spring (76003-02030).
• Remove the MCS Valve Assembly (76003-05300) and the Spring (76003-05304) from the Tool.
