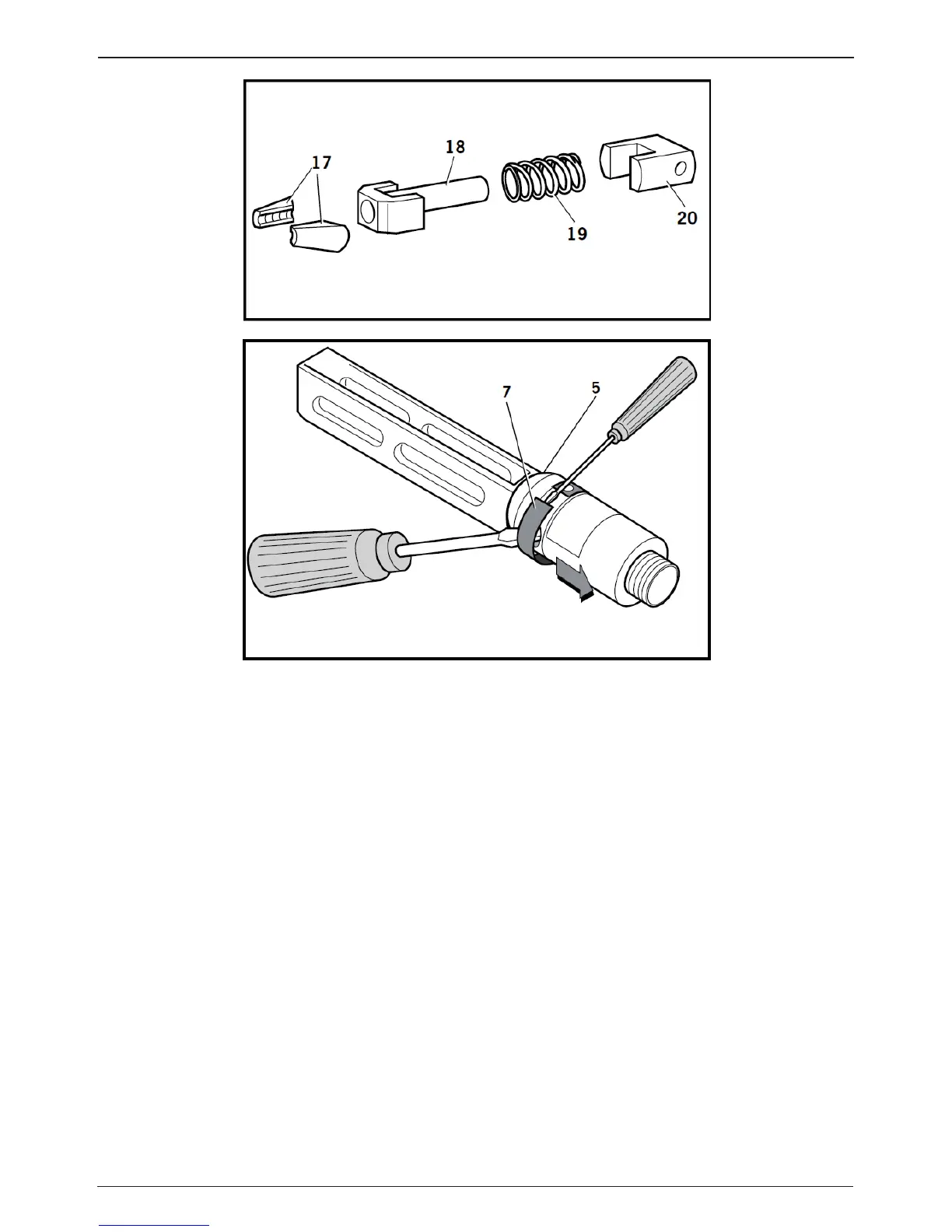

Fig. 9
Fig. 10
5. PIN TAIL DEFLECTOR KIT
The Pin Tail deector is avery simple alternative to the standard stem collector and allows access in restricted
areas. To replace the stem collector with the stem deector proceed as follows:
PREPARING THE BASE TOOL TO ACCEPT THE PIN TAIL DEFLECTOR KIT
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT3 AND PROSET XT4 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE PIN TAIL DEFLECTOR KIT.
Refer to g.11 and the table 4 on page 12. Refer also to the Proset XT3 and Proset XT4 Service Manuals 07900-
09410 and 07900-09411.
• Operate the tool so that the Piston (76003-02120 or 76004-02120) moves to the fully rear position.
• Continue to depress the trigger, then turn o the air supply to the tool using the On/O Valve (76003-
03700). The Piston Assembly will then stop in the fully rear position.
• The air supply must be disconnected.
• Rotate Stem Collector (76003-05200) anti-clockwise and remove from the Collector Adapter (76003-05104).
• Unscrew and remove the Deector Retaining Nut (76003-05102) and the Stem Deector (76003-05101).
• Remove the Collector Adapter (76003-05104), including ORing (07003-00530).
