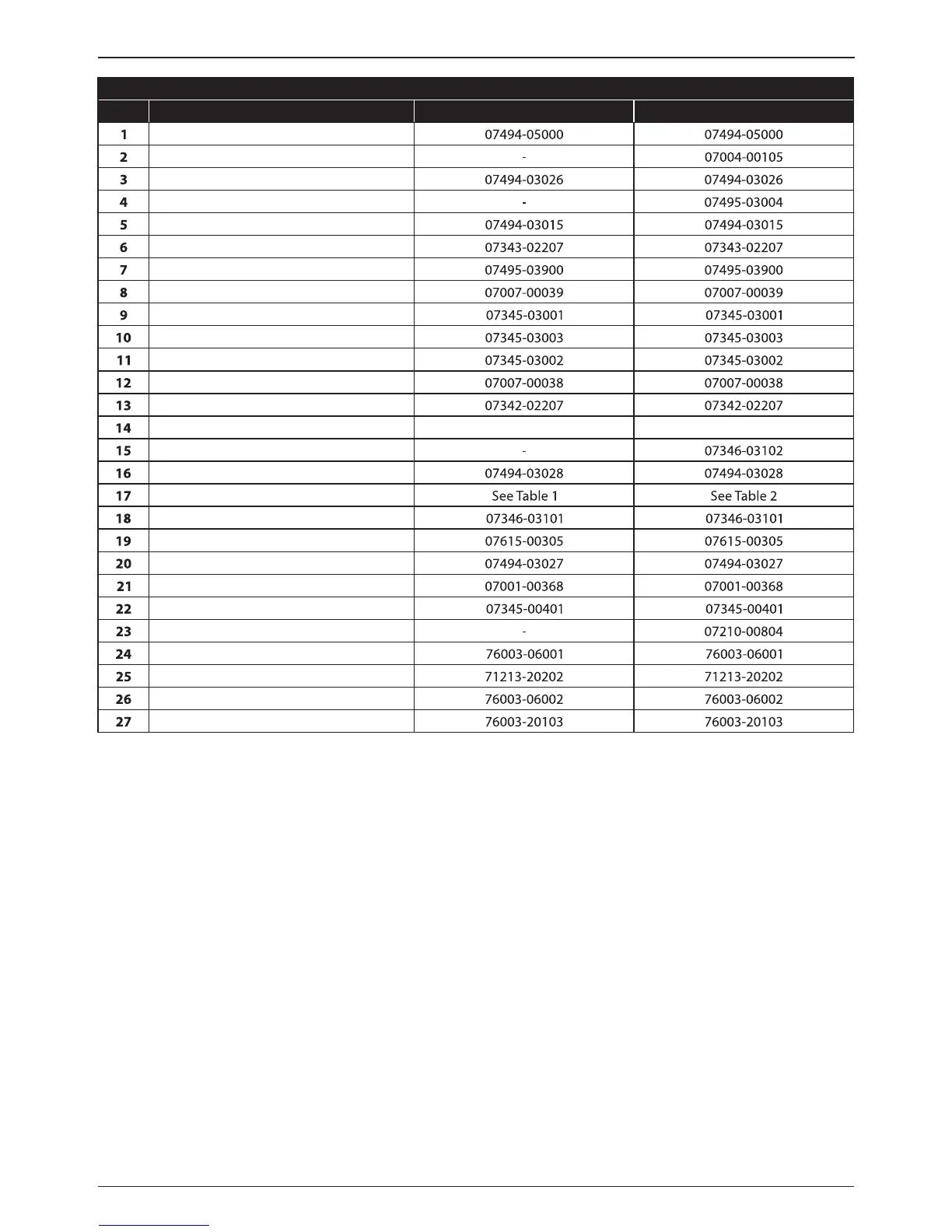

Table 3 - PARTS LIST - STRAIGHT & RIGHT ANGLED SWIVEL HEAD
Item Description STRAIGHT SWIVEL RIGHT ANGLED SWIVEL
Guard
Circlip
Jaw Carrier
Lever
Body
Pivot Pin
Spring Clip
Roller
Adapter
Locking Ring
Spindle
Dowel Pin
Screw
Nose Tip See Table 1 See Table 2
Pivot Pin
Screw
Jaws
Jaw Spreader
Spring
Spring Guide
Screw
Platform
Screw
Jaw Spreader Housing
Stop Nut
Safety Cap
Collector Adapter Cover
SWIVEL HEAD SERVICING INSTRUCTIONS
Swivel heads should be serviced at weekly intervals.
• Remove the complete head using the reverse procedure to the ‘Fitting instructions’ omitting step ‘L’.
• If Guard (1) is at all damaged it must be replaced by anew one.
• Any worn or damaged parts should be replaced.
• Pay particular attention to jaw carrier items in the upper illustration opposite as follows:
• Check wear on Jaws (17).
• Check that Jaw Spreader Tube (18) is not distorted.
• Check that Spring (19) is neither broken or distorted.
• Check that Spring Guide (20) is not damaged.
• Check that Spring clip (7) is not distorted. When removing Spring Clip (7), use two screwdrivers as shown
in the lower illustration opposite.
• Check for excessive wear on slots of Body (5).
• Assemble according to tting instructions.
Item numbers in bold refer to Swivel Head illustrations g. 9 and g. 10 on page 11. Guard (1) refers to g. 7
and g. 8 on page 8 and 9 and the table on page 10.
