A. Fit Locking Ring 10 over Jaw Spreader Housing (24).
B. Coat Screw (13) with thread locking adhesive and use to secure Nose Tip (14) onto Body (5).
C. Lightly lubricate items (17), (18), (19), (20) and insert into Jaw Carrier (3) as shown. Secure with Screws (16).
D. Position Lever (4) into Body (5) and hold in place with pin (15) through the hole of Body (5) (not aslot).
E. Lubricate the sides of the Jaw Carrier Assembly and insert into Body (5).
F. Lubricate Rollers (8) and ENSURE that they will freely rotate in the holes of Adaptor (9). If necessary ream
the holes.
G. Position Spring Clip (7) over Adaptor (9) past the holes for the rollers and rotate until the locating peg is
aligned with the corresponding hole in Adaptor (9) (smallest hole).
H. Fit Adaptor (9) over the end of Body (5) and drop Rollers (8) into place. Push Spring Clip (7) over Rollers (8).
I. Insert Spindle (11) through Adaptor (9) into Jaw Carrier (3) until the hole lines up with slot in Body (5).
Temporarily hold in place with Pin (6).
J. Insert Pin (12) through the front slot of Body (5) into Jaw Carrier (3).
K. Hold the assembly vertical to prevent all pins dropping out and slide the jaw carrier assembly back and
forth afew times to ensure free movement. Go to M.
L. Remove Screws (23) (4 o) and Guard (1). On astraight swivel head also remove Screw (21) and Platform (22).
M. Push Pin(s) (6) out and let Spindle (11) drop out. Screw Spindle (11) onto the Jaw Spreader Housing (24),
leaving the small screw xing hole uppermost for straight swivel. Tighten gently with atommy bar.
N. Screw the assembly over Spindle (11) onto the tool. Replace Pin(s) (6).
O. On straight swivel heads attach Platform (22) onto the top of the Spindle (11) with Screw (21). Deburr the
back end of Platform (22) so that it cannot catch on Guard (1).
P. Snap Guard (1) over the assembly, align screw holes in guard with tapped holes in body assembly.
Q. Insert Pivot Pin (15) through slots in guard and hole in body. Fit Circlip (2) onto pivot pin so that the circlip
seats in groove provided.
R. Coat the thread of Screws (23) (4 o) with thread locking adhesive and screw into body assembly
securing guard to body assembly.

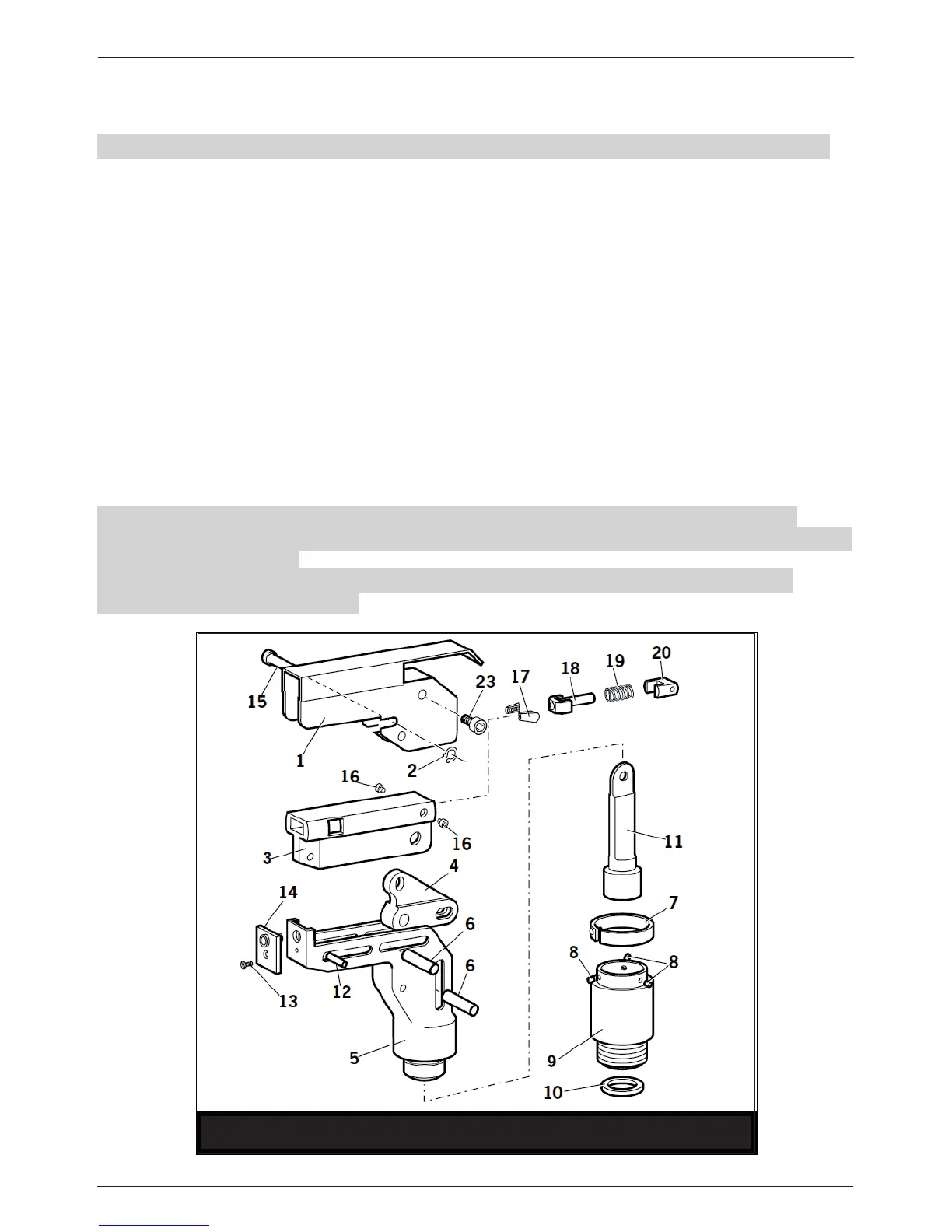

RIGHT-ANGLE SWIVEL HEAD
Fig. 8
