Stanley ProSet XT3 User Manual

17
ENGLISH
D
E
F
C
1 2 3 4
A
3 2 1 5
C
D
4 6 7 8
A
B
D
E
F
C
1 2 3 4
A
3 2 1 5
C
D
4 6 7 8
A
B
17-09-15 R. KING
DO NOT SCALE
Size:
ZB
Revision:
Scale:
DRAWING
NUMBER
3:2
1 of 1
A3
76003-20300(S)-ZB
Sheet:
MATERIAL
LIMITS
UNLESS
STATED
HEAT TREATMENT
DATE DRAWN
SURFACE TREATMENT
DRAWING
DESCRIPTION
ISSUE
C.N.
Avdel UK Limited
Pacific House, 2 Swiftfields,
Watchmead Industrial Estate,
Welwyn Garden City,
Hertfordshire, AL7 1LY
Registered in England: No. 315076
This document is the property of Avdel UK Limited
and is issued on the express terms that it is to be
treated as private and confidential and is not to
be communicated to any other person.
All patents, manufacturing and design rights are
reserved by Avdel UK Limited.
LUBRICATION
DIMENSIONS IN mm UNLESS STATED
REMOVE ALL BURRS AND SHARP EDGES
INCH DIMENSIONS IN PARENTHESES
0.13mm DECIMAL
N8
1/2 DEGREEANGULAR
DRILL
SURFACE
TEXTURE
EN 20286/BS 1916-H11
15/245
ZA
17/165
ZB
PART
DESCRIPTION
PART
NUMBER
WEIGHT
B
5
ORing
1
Jaw Housing
Extension
4
Jaw
Spreader
Housing
6
Locking Ring
3
ORing
2
Nose Casing
Extension

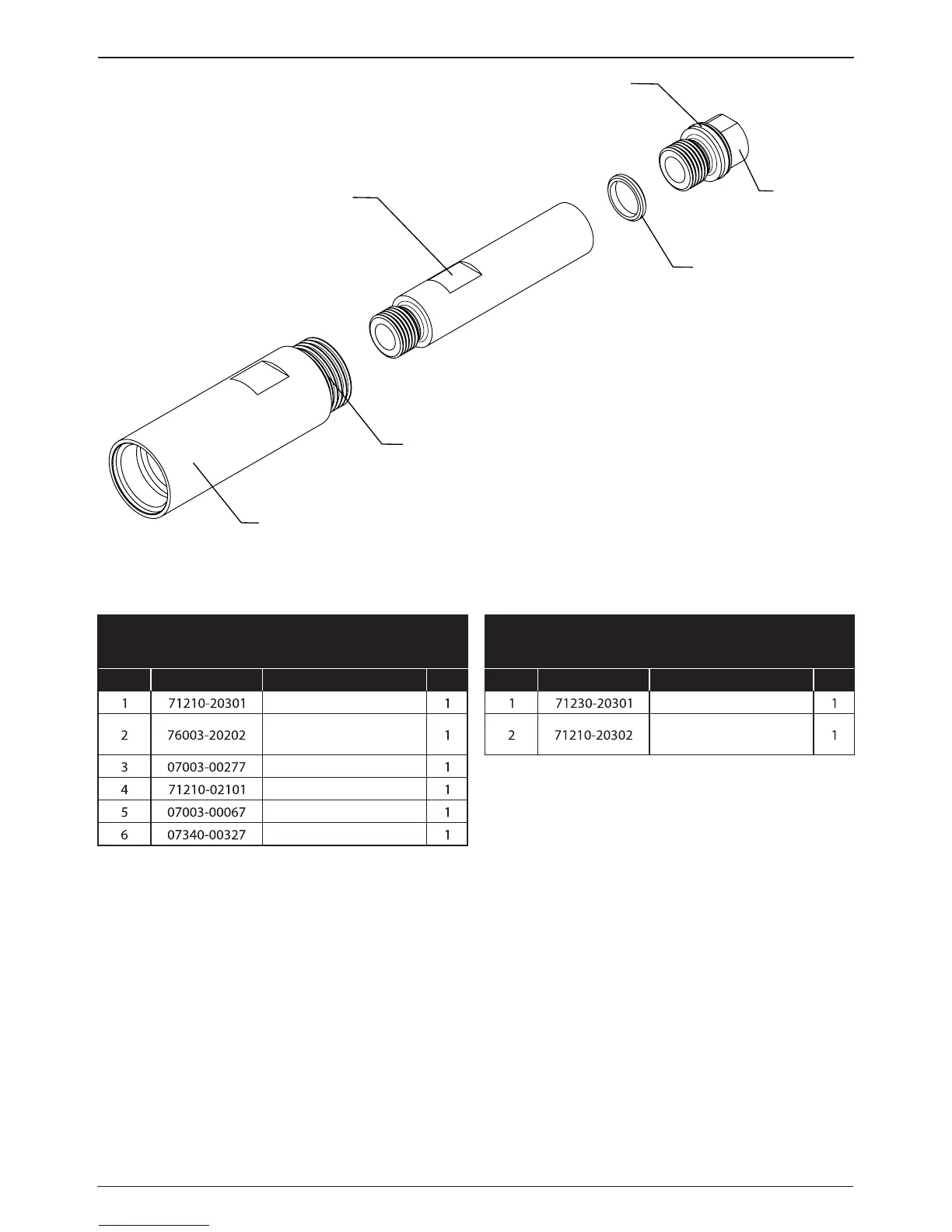

Fig. 15
Table 7 - PARTS LIST - NOSE EXTENSION ASSEMBLY
76003-20300
Table 8 - PARTS LIST - NOSE EXTENSION ASSEMBLY
71230-20300
Item Part Number Description Qty Item Part Number Description Qty
Jaw Housing Extension Jaw Housing Extension
Nose Casing Extension
- XT3
Nose Casing Extension
ORing
Jaw Spreader Housing
ORing
Locking Ring
To t Nose Extension Assembly 76003-20300
• Remove any nose assembly components.
• Install the Jaw Spreader Housing (4) and Oring (5) fully onto the tool piston and then tighten the locknut
(71210-02103) against it.
• Fit the Locking Ring (6) over the Jaw Spreader Housing (4) thread.
• Attach the Jaw Housing Extension (1) to the Jaw Spreader Housing (4) and tighten with spanners.
• Place Nose Casing Extension (2) over the Jaw Housing Extension (1) and tighten fully onto the tool.
• Fit the nose assembly onto the Jaw Housing Extension (1) and Nose Casing Extension (2).
To t Nose Extension Assembly 71230-20300
• Remove any nose assembly components.
• Attach the Jaw Housing Extension (1) to the Jaw Spreader Housing (4) and tighten with spanners.
• Place Nose Casing Extension (2) over the Jaw Housing Extension (1) and tighten fully onto the tool.
• Fit the nose assembly onto the Jaw Housing Extension (1) and Nose Casing Extension (2).
