14

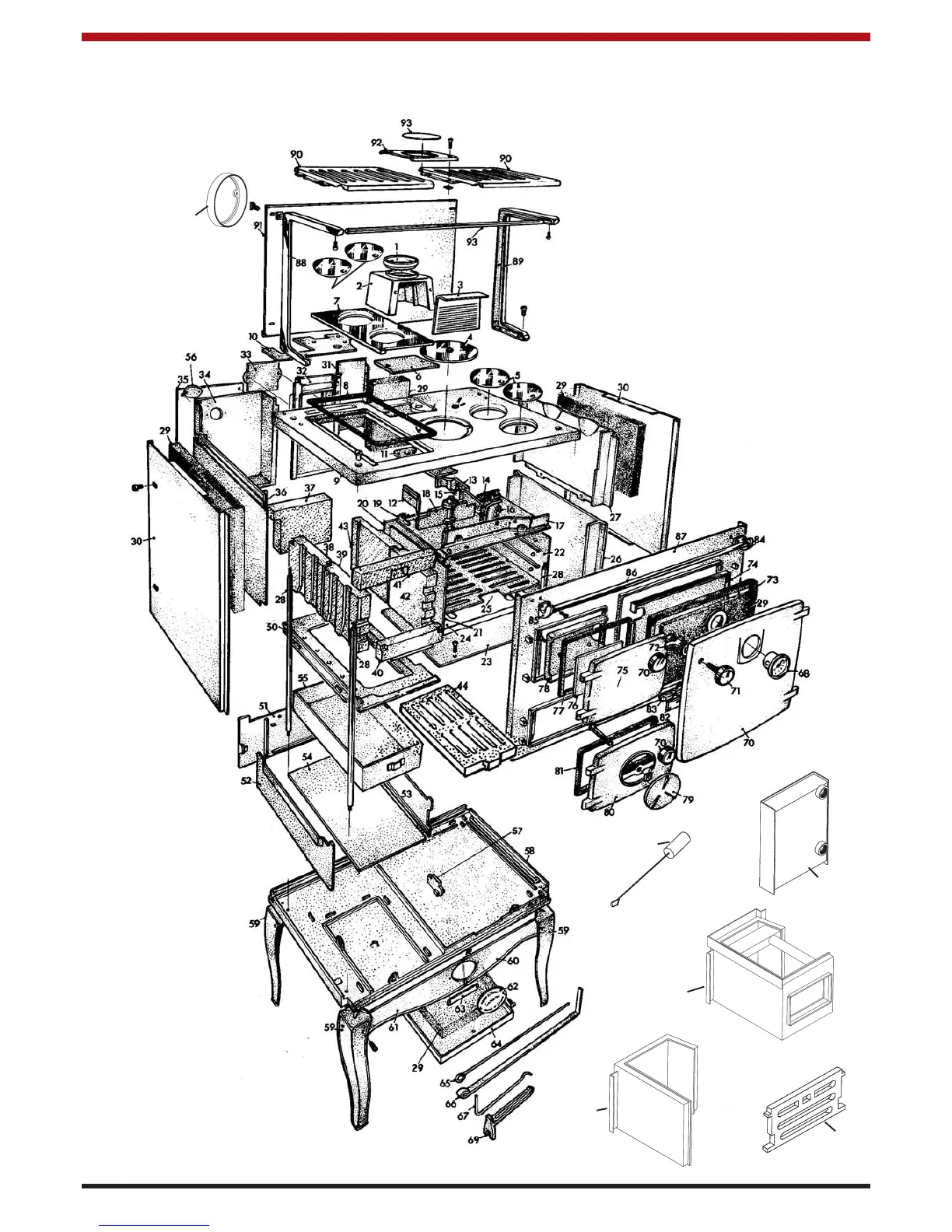

EXPLODED VIEW
1. Bonnet Ring
2. Bonnet
3. Bonnet Door
4. Simmering Plate
5. Cleaning Cup (2)
6. Hob Sealing Plate
7. Hot Plate
8. Hot Plate Cord
9. Hob
10. Hob Protection Plate (Large)
11. Hob Protecting Plate (Small)
12. Flue Guide LH
13. Flue Guide RH
14. Back Flue Guide
15. Direct Damper
16. Steam Escape
17. Front Flue Guide
18. Oven Damper
19. Oven Top
20. Oven Back
21. Oven Side (LH)
22. Oven Side (RH)
23. Oven Bottom
24. Oven Shelf (Sheet Iron)
25. Oven Shelf (Cast Iron)
26. Oven End Flue Bottom
27. Oven End Flue Top
28. Stay Rods
29. Insulation
30. Sheet Iron Sides (2)
31. Sheet Iron Back (R.H)
32. Flue Back
33. Back Sealing Plate
34. Fire Box Back
35. Fire Box Back Sheet Iron
36. Sham Cheek
37. Fire Box Brick Back
38. Fire Box Brick L.H.S. Back
39. Fire Box Brick L.H.S. Front
40. Fire Box Brick Front Bottom
41. Fire Box Brick Front Top
42. Fire Box Brick R.H.S. Front
43. Fire Box Brick R.H.S. Back
44. Riddling Grate
50. Bottom Grate Rest
51. Ash Pit Back
52. Ash Pit L.H.S
53. Ash Pit R.H.S
54. Ash Pit Bottom
55. Ash Pan
56. Fire Box Blanking Plate
57. Flue Check
58. Base
59. Legs (4)
60. Plinth R.H.S
61. Plinth L.H.S
62. Nameplate
63. Plinth Joining Clip
64. S.I. Base Protection Plate
65. Poker
66. Scraper
67. Hotplate Lifter
68. Thermometer
69. Riddling/Operating Tool
70. Oven Door
71. Door Knob (3)
72. Door Catch (3)
73. Oven Door Rope
74. Oven Door Panel
75. Fire Door
76. Fire Door Millboard Panel
77. Fire Door Rope
78. Fire Door Protection Panel
79. Spin Valve
80. Ashpit Door
81. Ashpit Door Rope
82. Base Cleaning Door
83. Base Cleaning Door Clip
84. Towel Rail Bracket R.H.
85. Towel Rail Bracket L.H.
86. Towel Rail
87. Front
88. Plate Rack Standard L.H.
89. Plate Rack Standard R.H.
90. Plate Rack Shelf (2)
91. Splashback
92. Plate Rack Centre Piece
93. Centre Piece Blanking Plate
94. Rear Outlet Spigot
95. Hotplate Cleaning Cups
96. Fire Fence
100. Cleaning Brush
Boiler Options
97. 47 K Boiler
98. DHW Boiler
99. 21K Boiler
95
94
99
100
98
97
96
