14

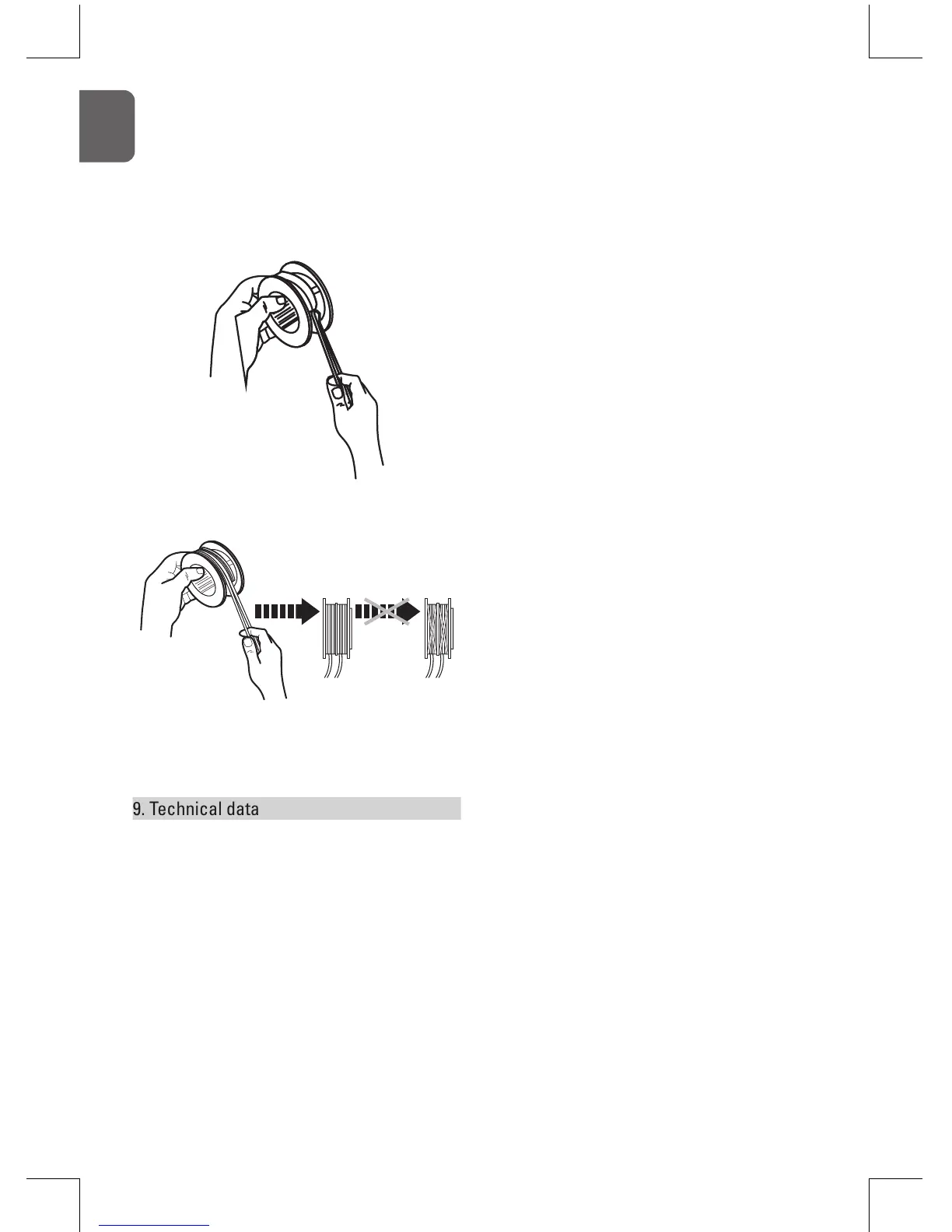

5. To replace the line take out the spool and remove the
remaining cutting line.
6. Cut a new 6m long cutting line with a diameter of
2mm. Form a loop at the middle of the line and insert
this loop into the hook on the spool.
7. Wind the two parts of the cutting line in clockwise
direction firmly around the spool each part in the guide
on the spool.
8. Insert each end of the threads in the respective holes.
The threads should stick out 150 mm on each side.
9. Screw the bumper anti-clockwise until it is completely
and safely locked.
9. Technical data
Air-cooled 2-stroke engine
Displacement: 26 cm
3
Power: 0.75 kW
Idle speed of engine: 3000 rpm
Max. speed of double string: 12500 rpm
Tank capacity: 400 ml
Cutting width: 430 mm
String thickness: 2.0 mm
Spark plug: TORCH L8RTC
CHAMPION RCJ6Y
Weight (empty tank): 5.0 kg
Sound pressure level L
pA
: 97,4 dB(A), k=3 dB(A)
Sound power level L
wA
: 110 dB(A), k=3 dB(A)
Vibration a
hv
: 8,712 m/s
2
; k=1.5 m/s
2
Guaranteed sound power level L
WA
: 114 dB(A)
The operating noise may exceed 114 dB. Please always
wear ear protection.
