MICROLIFT OPERATION LED
FOR MICROLIFTS FITTED WITH
LED CONTROL BUTTONS
Microlift controls are located beside the
landing doors on each floor that the lift serves.
The controls are very simple; each control
station contains individual call/send buttons for
each floor served, with LED indicators also
being provided. When the white LED is
illuminated (Fig.1) it indicates either the arrival
of the lift OR that the lift is already positioned
at that floor.
When illuminated, the
red LED indicates that
the lift is in use (Fig. 2). NOTE: For multiple
floors ie 3, 4 or 5 floors, the control and LED
system remain the same.

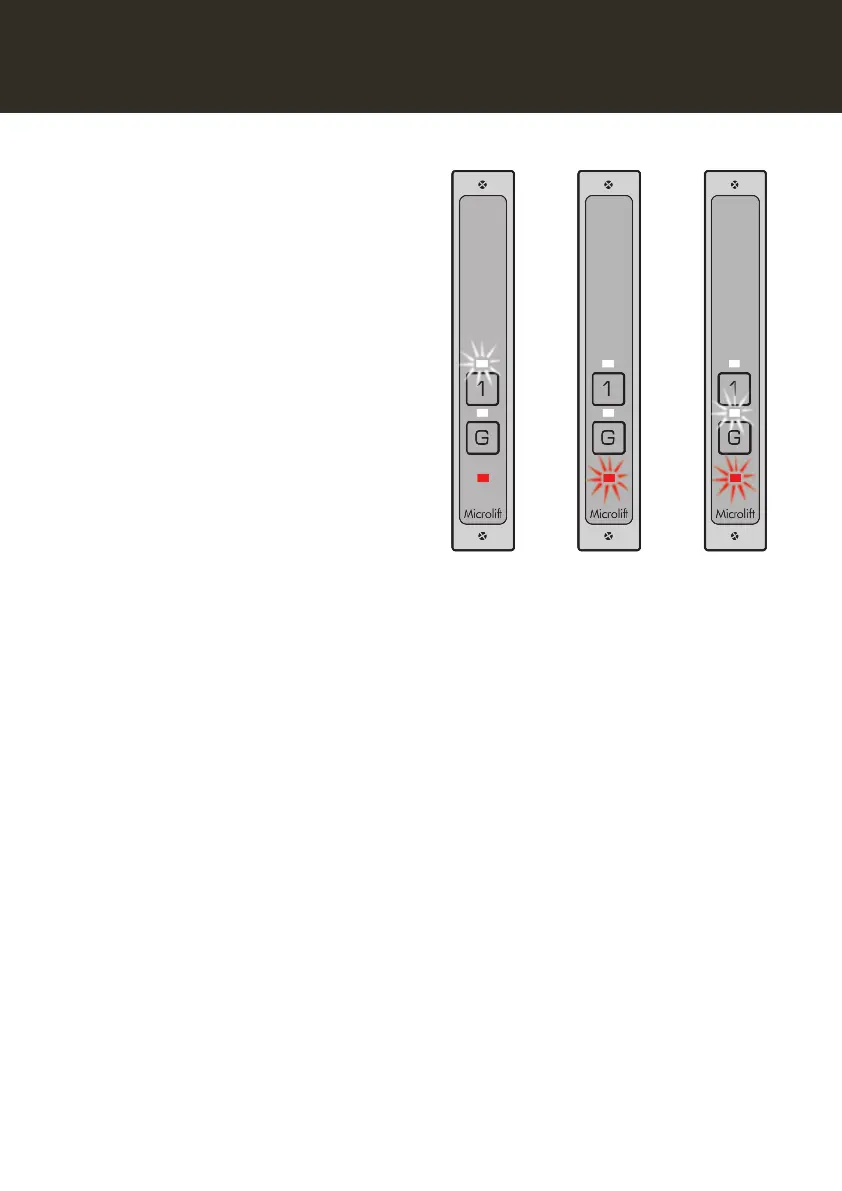

Fig. 1 shows the lift at floor 1, ready to be
called or despatched (white LED illuminated).
Fig. 2 shows the lift is in transit between floors
(
red LED illuminated).
Fig. 3 shows the lift at floor G with the
landing/car doors open (white and
red LEDs
illuminated).
IMPORTANT:
CALLING AND DESPATCHING
Before the lift can be called or despatched, all
landing and internal car doors MUST BE
closed properly. The lift will not accept a call
if the red LED is illuminated. If you have
called the lift to your floor, on arrival the white
LED will illuminate and a lift arrival buzzer will
sound.
Fig.1
6
Fig. 2 Fig. 3
