FRONT PANEL
25. Crossfader Curve - Controls the taper (fade) shape of the
crossfader (23). The crossfader curve control continually adjusts
the curve from a sharp cut to a long fade.
26. Headphone Outputs - 1/4” and 1/8” connector jacks for
headphones.

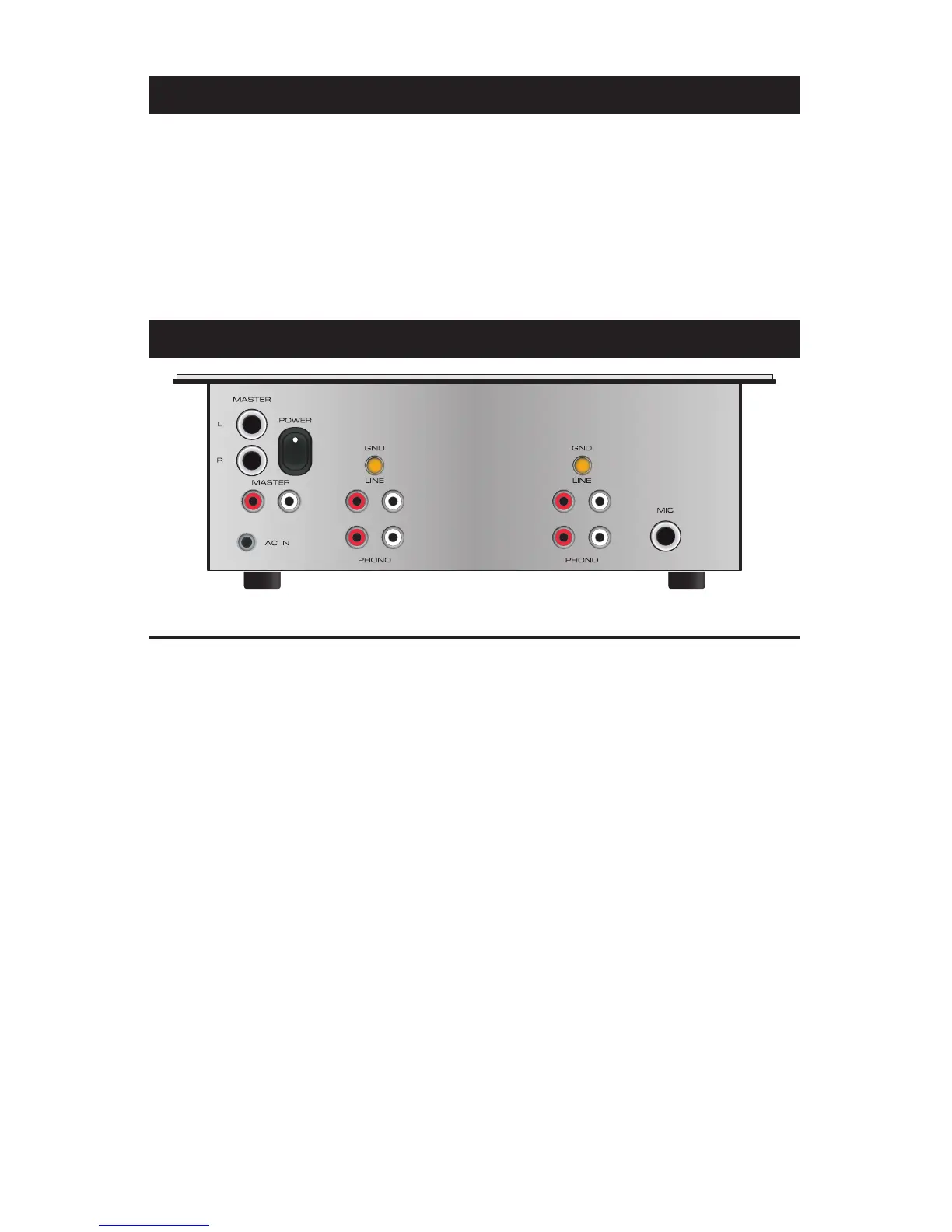

BACK PANEL
BACK PANEL
Power -
Power switch to turn the mixer “ON” or “OFF”.
AC IN: This is the input connection for the included power
supply.
Master - Connects to an amplifier, EQ, crossover, or other
outboard signal processing. Connect balance connections
to the TRS 1/4” connectors. Connect un-balanced connec-
tions to the RCA connectors.
Line - Line inputs are used to connect line level sources
such as CD players, Mini Discs, DATs, samplers, etc.
Ground - Connects to turntable ground cable to eliminate
electrical hum. Ground cables are usually supplied with
turntables.
Phono - Connects to left and right RCA cables from
turntable.
Mic - 1/4” TRS connector for use with microphones.
