lever

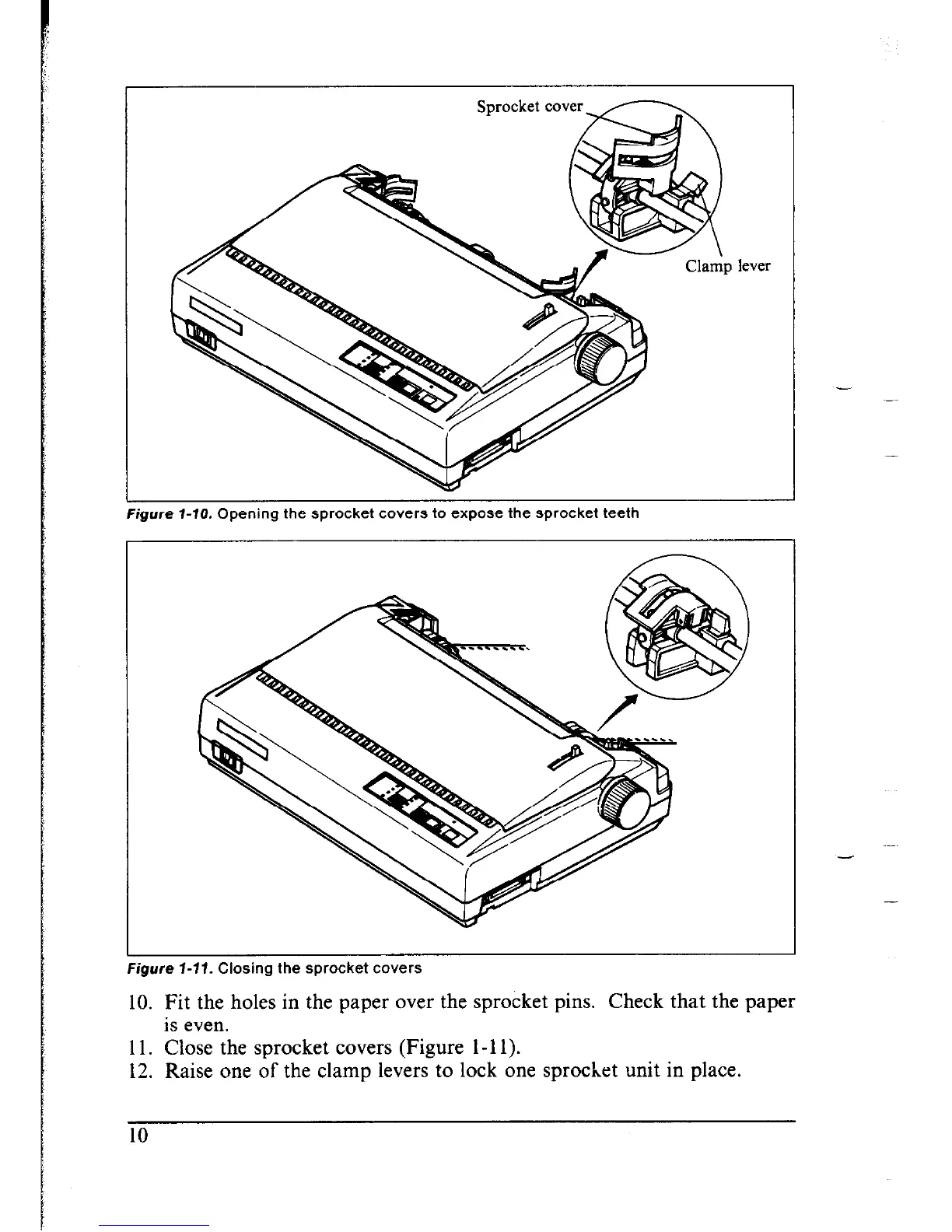

Figure l-10. Opening the sprocket covers to expose the sprocket teeth
igure l-71. Closing the sprocket covers
10. Fit the holes in the paper over the sprocket pins. Check that the paper
is even.
11. Close the sprocket covers (Figure l-l 1).
12. Raise one of the clamp levers to lock one sprocket unit in place.
-
