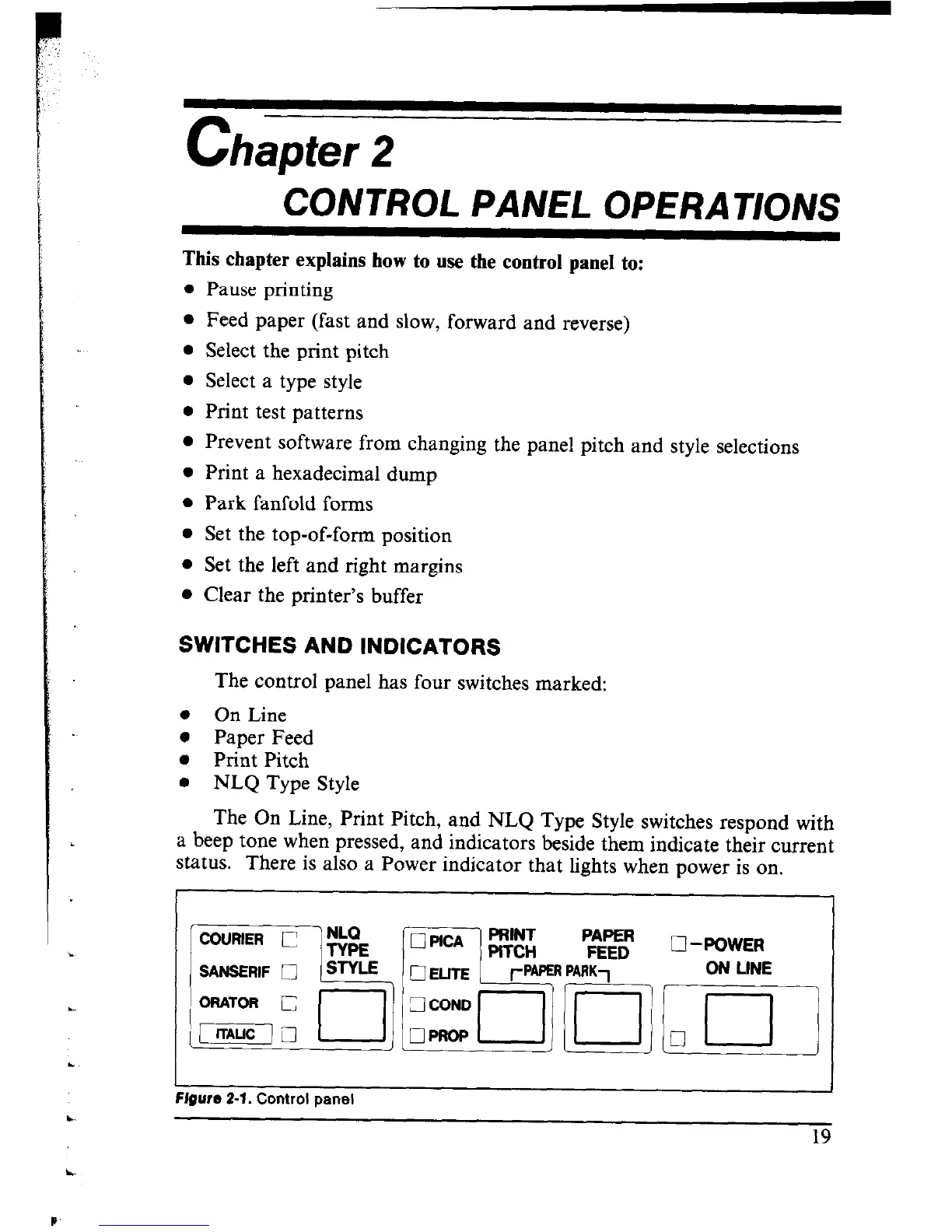

Chapter 2
CONTROL PANEL OPERAT/O/VS
This chapter explains how to use the control panel to:
0 Pause printing
l Feed paper (fast and slow, forward and reverse)
l Select the print pitch
0 Select a type style
0 Print test patterns
l Prevent software from changing the panel pitch and style selections
l Print a hexadecimal dump
l Park fanfold forms
l Set the top-of-form position
l Set the left and right margins
l Clear the printer’s buffer
SWITCHES AND INDICATORS
The control panel has four switches marked:
0 On Line
l Paper Feed
l Print Pitch
l NLQ Type Style
The On Line, Print Pitch, and NLQ Type Style switches respond with
a beep tone when pressed, and indicators beside them indicate their current
status. There is also a Power indicator that lights when power is on.
q -POWER
ON LINE
Figure 2-f. Control panel
