4
© 2019. All rights reserved.

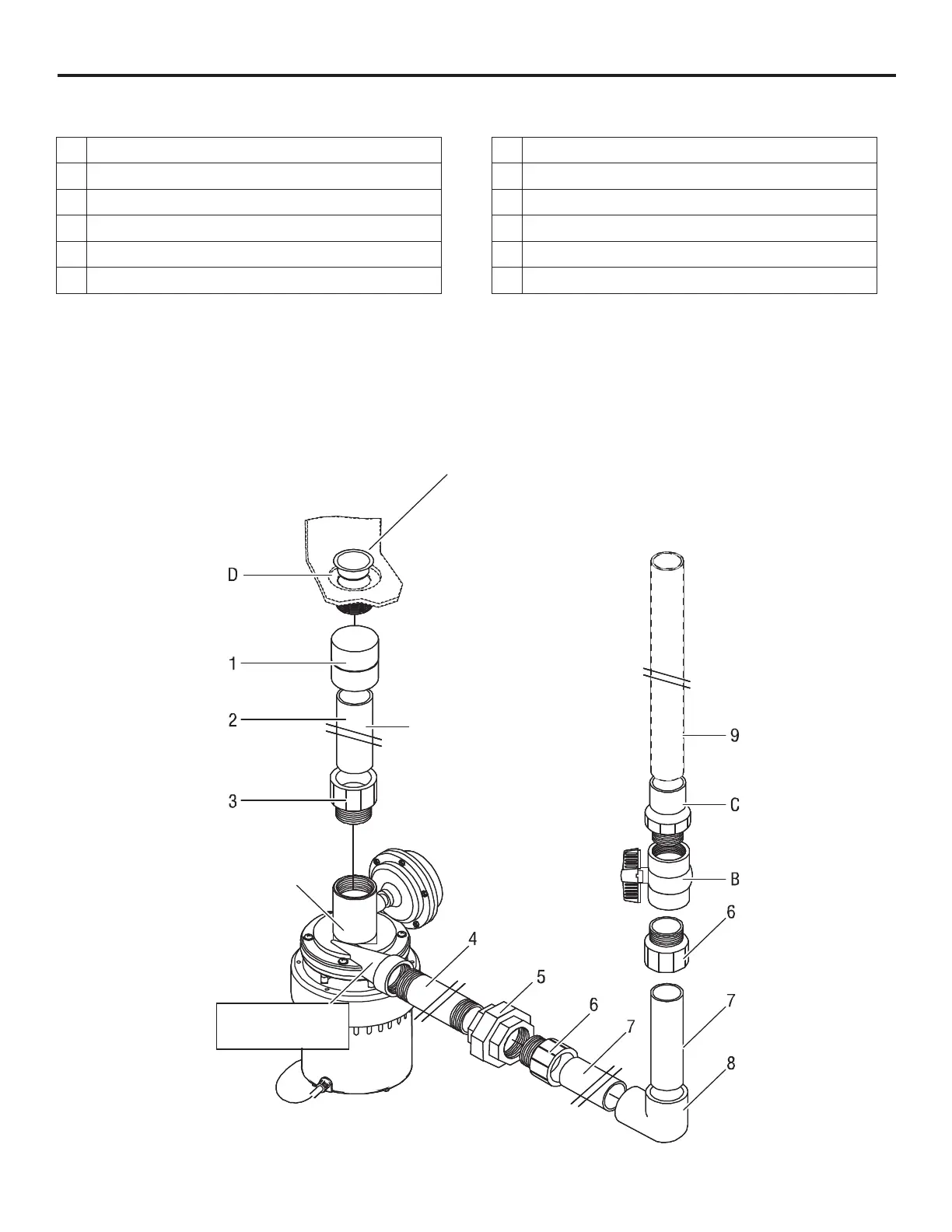

PREPARATION
Materials required for assembly:
1 1-1/2” NPT x 1-1/2” Slip Female Adapter
2 1-1/2” Schedule 40 PVC Pipe (to fit)
3 1-1/2” NPT x 1-1/2” Slip Male Adapter
4 1-1/4” NPT Galvanized Nipple (to fit)
5 1-1/4” NPT Galvanized Union
6 (2) 1-1/4” NPT x1-1/4” Male Adapter
7 (2) 1-1/4” Schedule 40 PVC Pipe (to fit)
8 1-1/4” Socket to Socket 90° Elbow
9 1-1/4” Schedule 40 PVC Pipe to Drain
PVC Pipe Cement
PTFE Pipe Thread Sealant Tape
1-1/2” PVC Solvent Union
Materials supplied: Sink Drain Screen (D), 1-1/4” NPT x 1-1/4” Slip Check Valve (C),
1-1/4” NPT Ball Valve (B)
Sink Bottom with Drain Port;
Tail Piece integral with Sink
1-1/2” Pump
Inlet Port
1-1/4” Pump
Discharge
For easier maintenance,
use 2 short sections of
pipe connected by a
1-1/2” Solvent Union.
To Next Page
