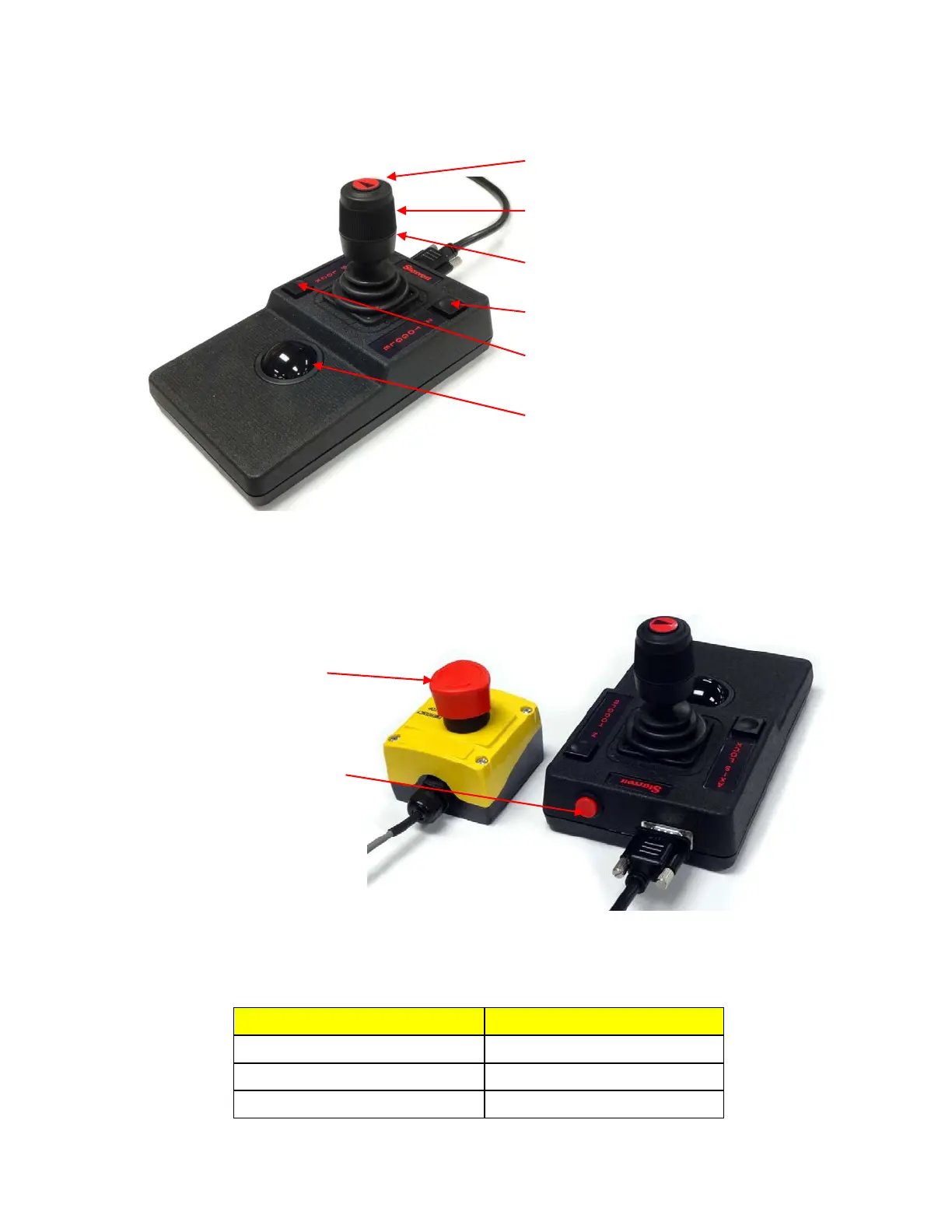

2.1 Manual Controls via Pendant
Push button to toggle between slow and fast control.
Applies to X-Y and Z axes.
Deflect joystick from left to right for X-axis control, from
front to back for Y-axis control.
Rotate joystick for Z-axis height control.
Push button to toggle between trackball control of X-Y
axes or Z axis.
Push button to toggle between axis lock, where only
one axis can be moved at one time, and non-axis lock.
Rotate trackball for X-Y or Z fine control as selected by
left pushbutton.
2.2 Emergency Stop (E-Stop) Switches
M3 CNC systems come with two latching E-Stop switches as a safety feature. These are wired in series so
that either one can remove power from the motors.
2.3 Environmental Considerations
Starrett Vision Metrology Systems are factory calibrated under the standard laboratory environ-
mental conditions
shown below:
Specification Requirement
Ambient Temperature
68°F ± 1°F (20°C ± 0.5°C)
Humidity
40-60% RH
Temperature rate of change
1°F (0.5°C) per hour
Press red button to cut
power. Rotate button
clockwise to release.
Press red button on back
of pendant to cut power.
Press again to reapply
power.
Button in = energized
Button out = de-energized
