Instruction Manual
6

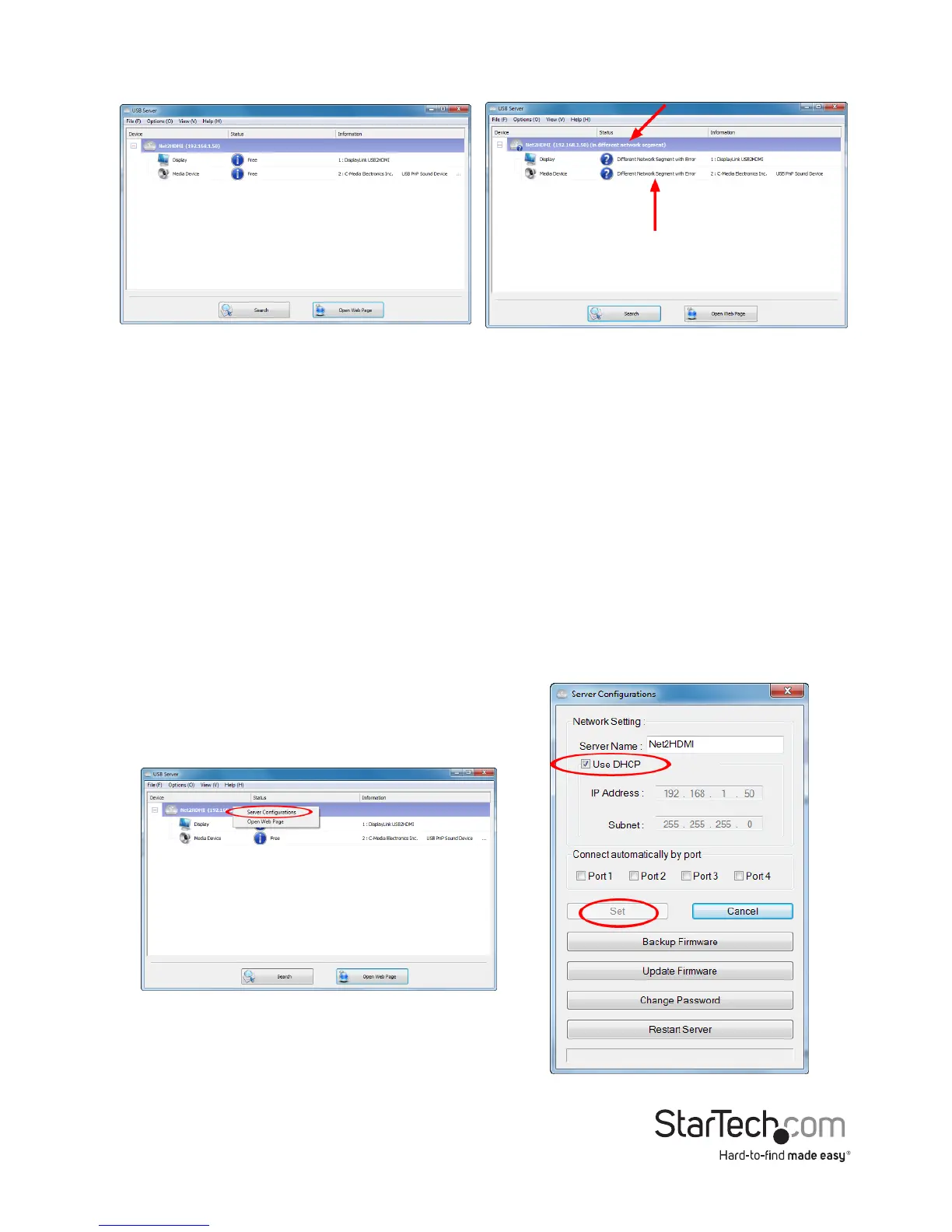

7. If DHCP (automatic IP) is available on the network, no conguration should be required.
Correct network conguration
Incorrect network conguration
If a DHCP server (automatic IP) is not available on your network (such as connecting
directly to the host computer), the video adapter will use a default IP address of
192.168.1.50. If this is not compatible with your network, the video adapter will need to
be manually congured.
a) If not already, connect the HDMI video adapter to a host computer directly via UTP
Ethernet cable.
b) Assign the host computer with a manual (static) IP address of 192.168.1.51. If the HDMI
video adapter will only be connected directly to this computer, no further changes need
to be made (skip to step g).
c) Run the USB Server application program. The HDMI video adapter will appear in the list.
d) Right-click on the main HDMI video adapter device. Select the “Server Conguration”
option.
e) Uncheck the “Use DHCP” option and manually enter the IP address and Subnet Mask you
wish the HDMI video adapter to use. Click “Set” when complete.

StarTech.com IPUSB2HD2 Specifications

General

Type	AV transmitter
Audio system	-
Product color	Black
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Maximum transfer distance	100 m
Supported graphics resolutions	1920 x 1080 (HD 1080)
DC-in jack	Yes
RJ-45 input ports	1
Storage temperature (T-T)	0 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	10 - 80 %
Current	2 A
Operating voltage	5 V
Package depth	225 mm
Package width	150 mm
Package height	60 mm

Weight and Dimensions

Weight	460 g
Dimensions (WxDxH)	71 x 132 x 28 mm
