Command Code
Output4 next: 0x63 0x69 0x72 0x20 0x34 0x30 0x0D 0x0A
Output 4 select in1: 0x63 0x69 0x72 0x20 0x31 0x38 0x0D 0x0A
Output 4 select in2: 0x63 0x69 0x72 0x20 0x34 0x34 0x0D 0x0A
Output 4 select in3: 0x63 0x69 0x72 0x20 0x30 0x46 0x0D 0x0A
Output 4 select in4: 0x63 0x69 0x72 0x20 0x35 0x31 0x0D 0x0A
Command Feedback Format
When a control command is received by the ST424HDBT, it will send feedback to show
which input port is selected. The return status format is as follows:
For example, if you send “cir 09 ” to the ST424HDBT, once received, it will feedback
“s13”, meaning Output1 selects Input4.

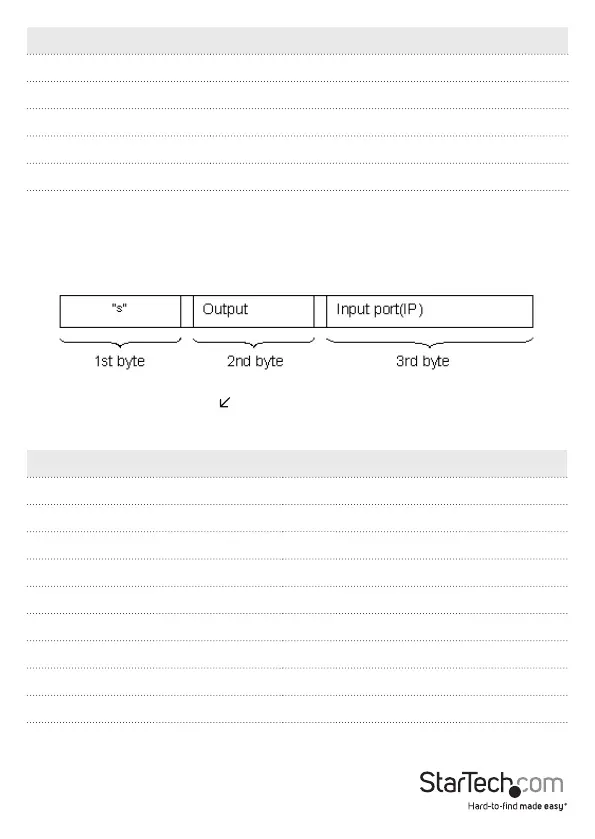

Output to Input Return status
OP1->IP1 “s10”
OP1->IP2 “s11”
OP1->IP3 “s12”
OP1->IP4 “s13”
OP2->IP1 “s20”
OP2->IP2 “s21”
OP2->IP3 “s22”
OP2->IP4 “s23”
OP3->IP1 “s30”
OP3->IP2 “s31”
