10. Tilt the entire Assembly onto its side to gain access to the
bottom of the Base. (Figure 4)
Note: It is recommended that Two People complete this step
and any subsequent steps that involve tilting or moving the
Mobile TV Cart.
11. Insert four M8 x 25 mm Hex Head Screws through the Base
and into the Left Column.
12. Tighten all four M8 x 25 mm Hex Head Screws, using the
Hex Key.
13. Repeat steps 11-12 for the Right Column.
14. Tilt the entire Assembly back to an upright position.
15. Insert one M6 x 25 mm Screw into the back of the Left
Column. (Figure 5)
Warning! Do not skip this step. The M6 x 25 mm Screws
serve as important safety stops.
16. Tighten the M6 x 25 mm Screw, using a Phillips Head
Screwdriver.
17. Repeat steps 15-16 for the Right Column.

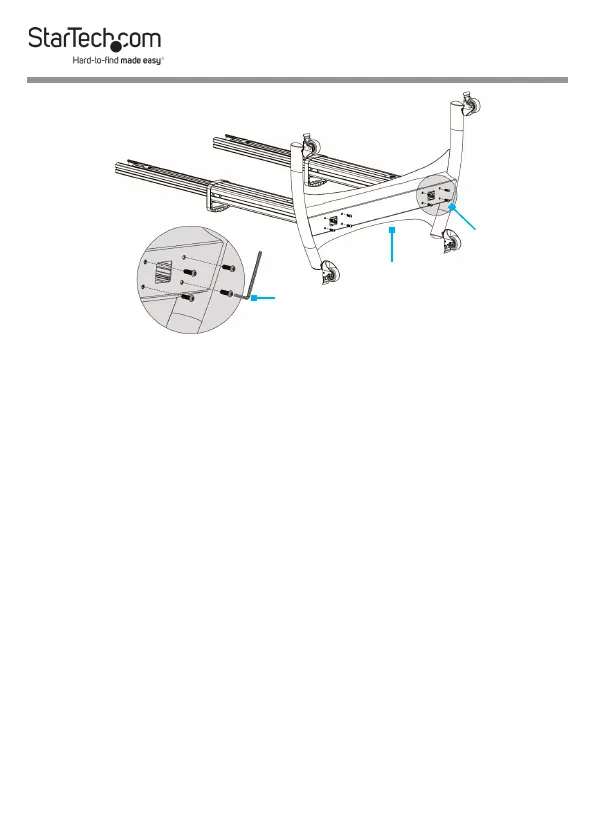

Figure 4
Base
Hex Key
M8 x 25 mm
Hex Head
Screws
