Steamfast SF-142 - Assembly and Setup; Telescopic Pole Assembly

6
|
ENGLISH

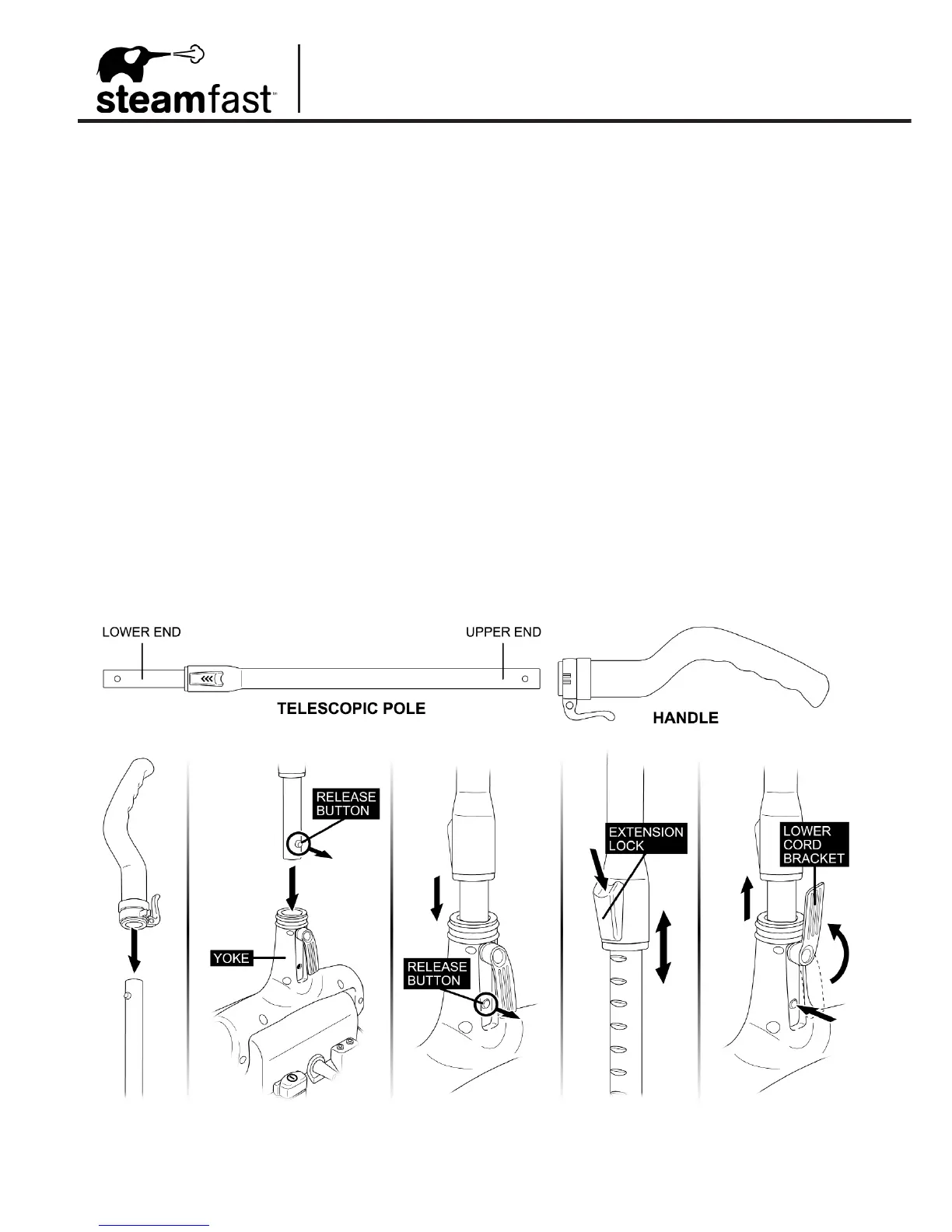

1-A 1-B 1-C 1-D 1-E
FIGURE 1
Assembling Your
Steam Mop
TELESCOPIC POLE
1. Connect Handle to upper (thicker) end of Telescopic Pole. To do this, simply slide Handle onto
Pole until it snaps in place (FIGURE 1-A).
NOTE: Once connected, the Handle is not designed to be removed from the Telescopic Pole.
If it becomes necessary to remove it, contact Consumer Service for assistance (Page 13).
2. Insert lower (thinner) end of Telescopic Pole into yoke on top side of Mop Head. When inserting,
make sure release button located on Pole faces towards back side of yoke as illustrated
(FIGURE 1-B).
3. Press Telescopic Pole into yoke until release button snaps through small hole on back side of
bracket (FIGURE 1-C). Pole should now be secured to Mop Head.
NOTE: In order to coax the release button through the hole, it may be necessary to
rotate and adjust the Telescopic Pole until button aligns properly with hole.
4. To adjust length of Telescopic Pole, press Extension Lock downward. While holding Lock
down, move the upper section of Pole until it is at the desired length (FIGURE 1-D). Release
Lock, then adjust upper section of Pole again until it “clicks” securely into place.
5. To disconnect Telescopic Pole, swivel lower Cord Bracket 180º upward, then press rmly on
release button while simultaneously pulling Pole away from Mop Head yoke (FIGURE 1-E).
