VELCRO STRIP
2
LOCKING CASTERS
Slide cable out here.
5
4
3
1b1a

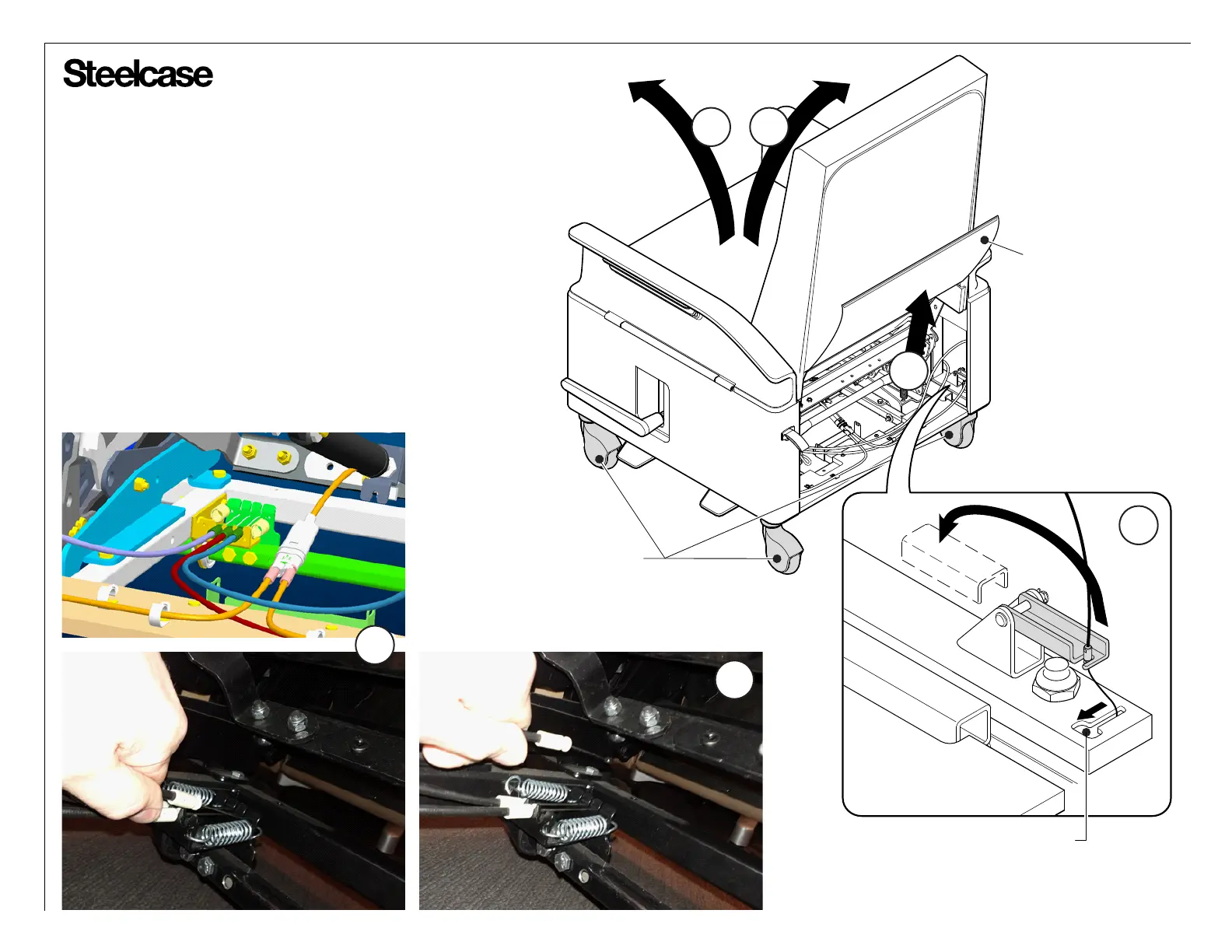

Locking Caster Replacement
1. Flip chair on front face for rear two casters (1a). Use a blanket to
protect fabric. Flip chair to non-control side for locking front caster (1b).
2. Detach velcro strip and move rear cover to gain access.
3. Unhook three (3) cables from the central activation point by
unsnapping the white fittings from the steel bracket.
4. Remove the cable ends out of the slot and set aside.
5. Lift lever away from caster.
®
