Panel Controls and Terminals
UR242 Operation Manual 10

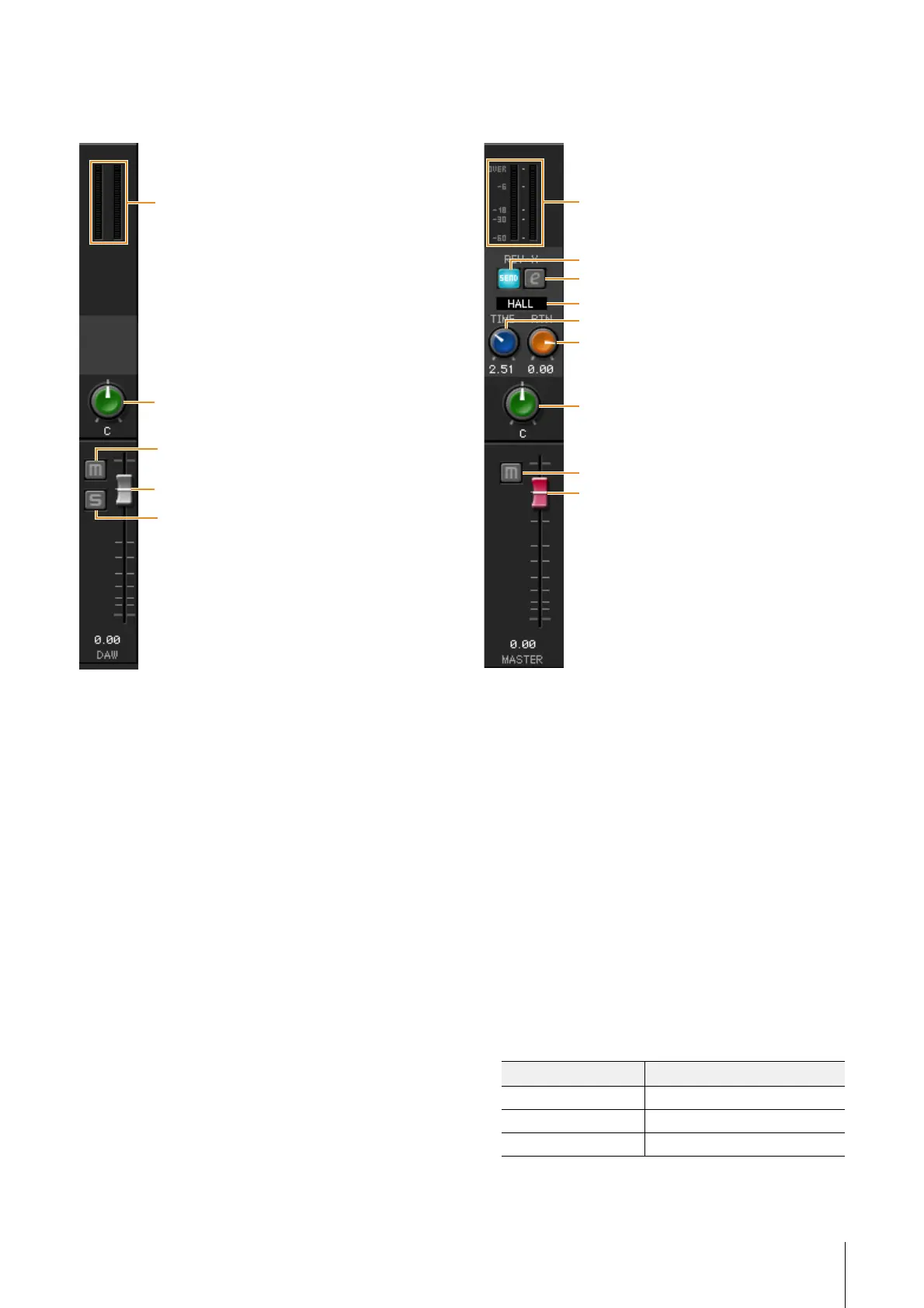

DAW Area
This is the area for configuring the DAW channel settings.
1 Level Meter
Indicates the signal level.
2 Pan
Adjusts the pan.
Range: L16
– C – R16
3 Mute
Turns the mute function on (lit) and off (dark).
4 Solo
Turns the solo function on (lit) and off (dark).
5 Fader
Adjusts the signal level.
Range: - ∞ dB
– +6.00 dB
Master Area
This is the area for configuring the master channel settings.
1 Level Meter
Indicates the signal level.
2 REV-X Send On
Indicates that REV-X Send is on. This is normally set to On.
3 REV-X Edit
Opens (lit) and closes (dark) the “REV-X” (page 18) setup
window.
4 REV-X Type
Selects the REV-X type.
Options: Hall, Room, Plate
5 REV-X Time
Adjusts the reverb time of REV-X. This parameter links to
Room Size. The adjustable range varies depending on
REV-X type.
2
3
4
5
1
REV-X Type Range
Hall 0.103 sec – 31.0 sec
Room 0.152 sec – 45.3 sec
Plate 0.176 sec – 52.0 sec
