Equalizer

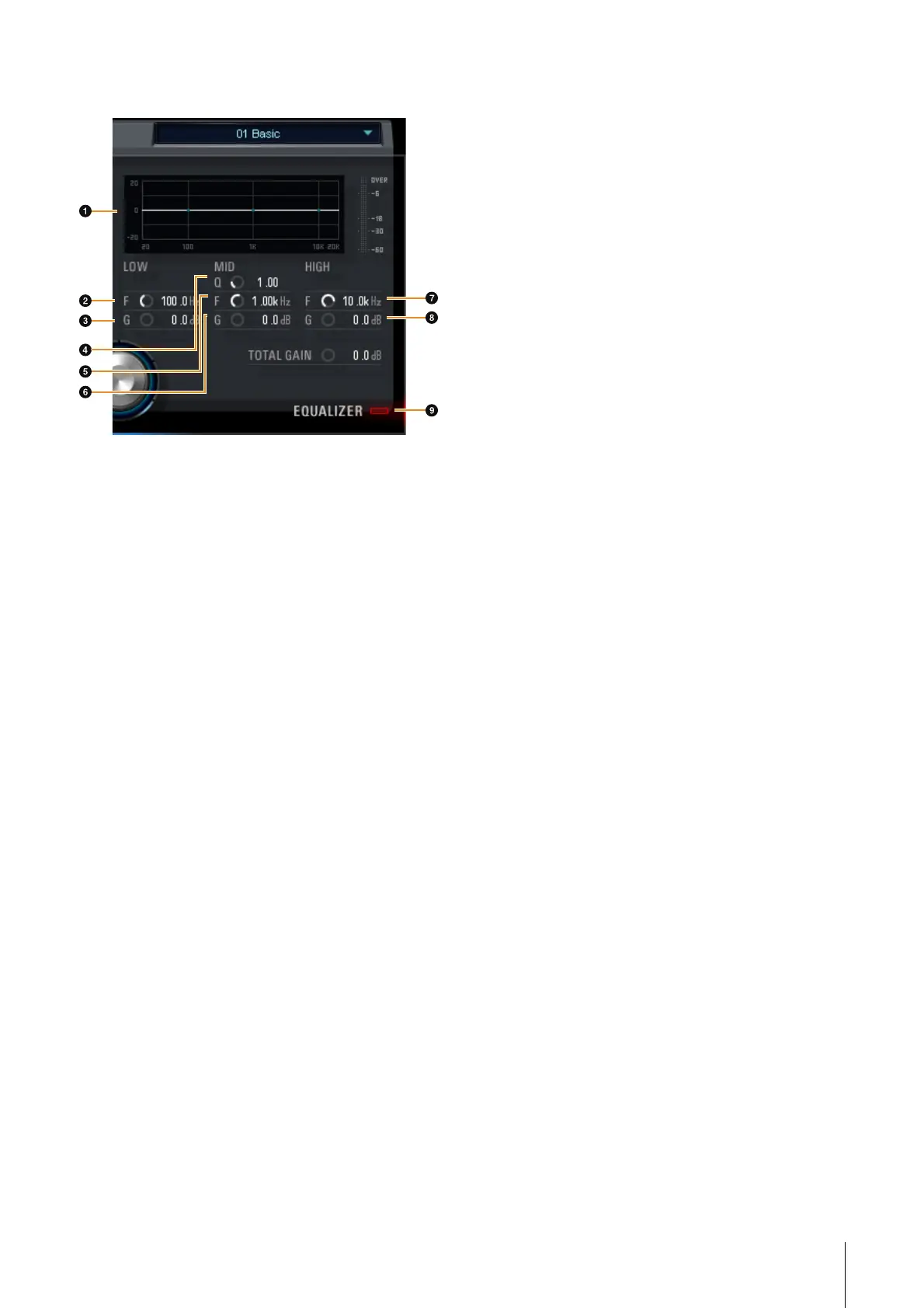

1 Equalizer Curve
This graph indicates the characteristics of the 3-band
equalizer. The vertical axis indicates the gain, and the
horizontal axis indicates the frequency. You can adjust
LOW, MID, and HIGH by dragging each handle in the
graph.
2 LOW F
Adjusts the center frequency of the low band.
Range: 20.0 Hz – 1.00 kHz
3 LOW G
Adjusts the gain of the low band.
Range: -18.0 dB – +18.0 dB
4 MID Q
Adjusts the band width of the middle band.
Range: 0.50 – 16.00
5 MID F
Adjusts the center frequency of the middle band.
Range: 20.0 Hz – 20.0 kHz
6 MID G
Adjusts the gain of the middle band.
Range: -18.0 dB – +18.0 dB
7 HIGH F
Adjusts the center frequency of the high band.
Range: 500.0 Hz – 20.0 kHz
8 HIGH G
Adjusts the gain of the high band.
Range: -18.0 dB – +18.0 dB
9 EQUALIZER On/Off
Turns the equalizer on (lit) and off (dark).
REV-X
REV-X is a digital reverb platform developed by Yamaha for
pro audio applications.
One REV-X effect is included in this unit. Input signals can
be sent to the REV-X effect, and the REV-X effect is
applied only to the monitor outputs. Three types of REV-X
are available: Hall, Room, and Plate.
The hardware REV-X equipped with the device and REV-X
of the VST Plug-in version have essentially the same
parameters. However, the [OUTPUT] and [MIX]
parameters are only available in the VST Plug-in version.
When using REV-X on Cubase series programs, you can
share the settings between the built-in REV-X and REV-X
of the VST Plug-in version as a preset file. When using the
built-in REV-X on Cubase series programs, turn on the
[Direct Monitoring] setting in the program. Also, when
assigning REV-X of the VST Plug-in version to the effect
slot on Cubase series programs, select it from the [Reverb]
category (in the case of the default settings).
The built-in REV-X is equipped with an “FX Bus” which is
used for sending the signal from DAW software to REV-X.
For example, to send the recorded audio data to REV-X,
you can check the sound with REV-X, which is used for
monitoring during the recording.
How to Open the Window
From Dedicated Windows for Cubase Series
• Click “REV-X Edit” (page 15) in the section “Input Settings
Window.”
• Click “REV-X Edit” (page 15) in the section “Reverb
Routing Window.”
From dspMixFx UR242
Click “REV-X Edit” (page 10) in the section “Master Area.”
