Panel Controls and Terminals
UR242 Operation Manual 15
8 Effect Insertion Location
Selects the insertion location of an effect.
9 Output Position of the Direct Monitoring Signal
Indicates the position from which the audio signals for
monitoring will be output when turning on Direct Monitoring
in the device settings on Cubase.
) REV-X Edit
Opens the “REV-X” (page 18) setup window.
! REV-X Send
Adjusts the signal level which is sent to the REV-X.
Range: - ∞ dB – +6.00 dB
@ Reverb Routing Edit
Opens the “Reverb Routing Window” (page 15) in the
section “Dedicated Windows for Cubase Series.”

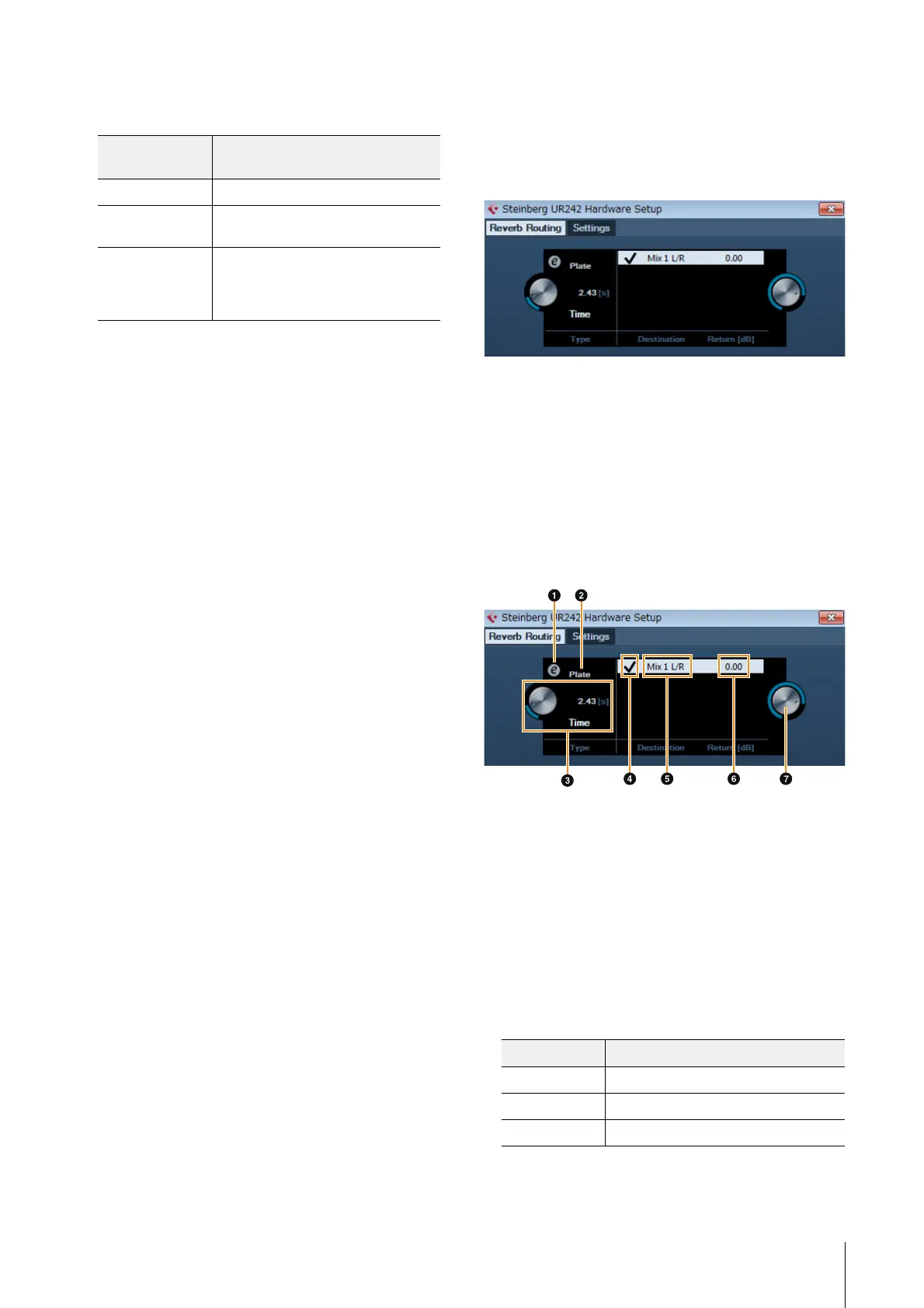

Hardware Setup Window
This window is for configuring the general settings of the
device. Click the upper tabs to select the window. Only the
settings on the Reverb Routing window are saved to the
Cubase project file.
How to Open the Window
Follow the steps below to open the window.
[Devices] [Audio Hardware Setup]
Reverb Routing Window
This window is for configuring the “REV-X” (page 18)
settings.
1 REV-X Edit
Opens the “REV-X” (page 18) setup window.
2 REV-X Type
Selects the REV-X type.
Options: Hall, Room, Plate
3 REV-X Time
Adjusts the reverb time of REV-X. This parameter links to
Room Size. The adjustable range varies depending on the
REV-X type.
4 REV-X Send Source Select
Indicates the send source signal which is sent to REV-X.
The UR242 is Mix 1 L/R only.
Insertion
location
Description
Upper (OFF) Turns the effect off.
Middle (MON.FX) Applies an effect Strip to only the
monitor signal (sent to the device).
Lower (INS.FX) Applies an effect Strip to both the
monitor signal (sent to the device) and
the recording signal (sent to the DAW
software).
REV-X type Range
Hall 0.103 sec – 31.0 sec
Room 0.152 sec – 45.3 sec
Plate 0.176 sec – 52.0 sec
