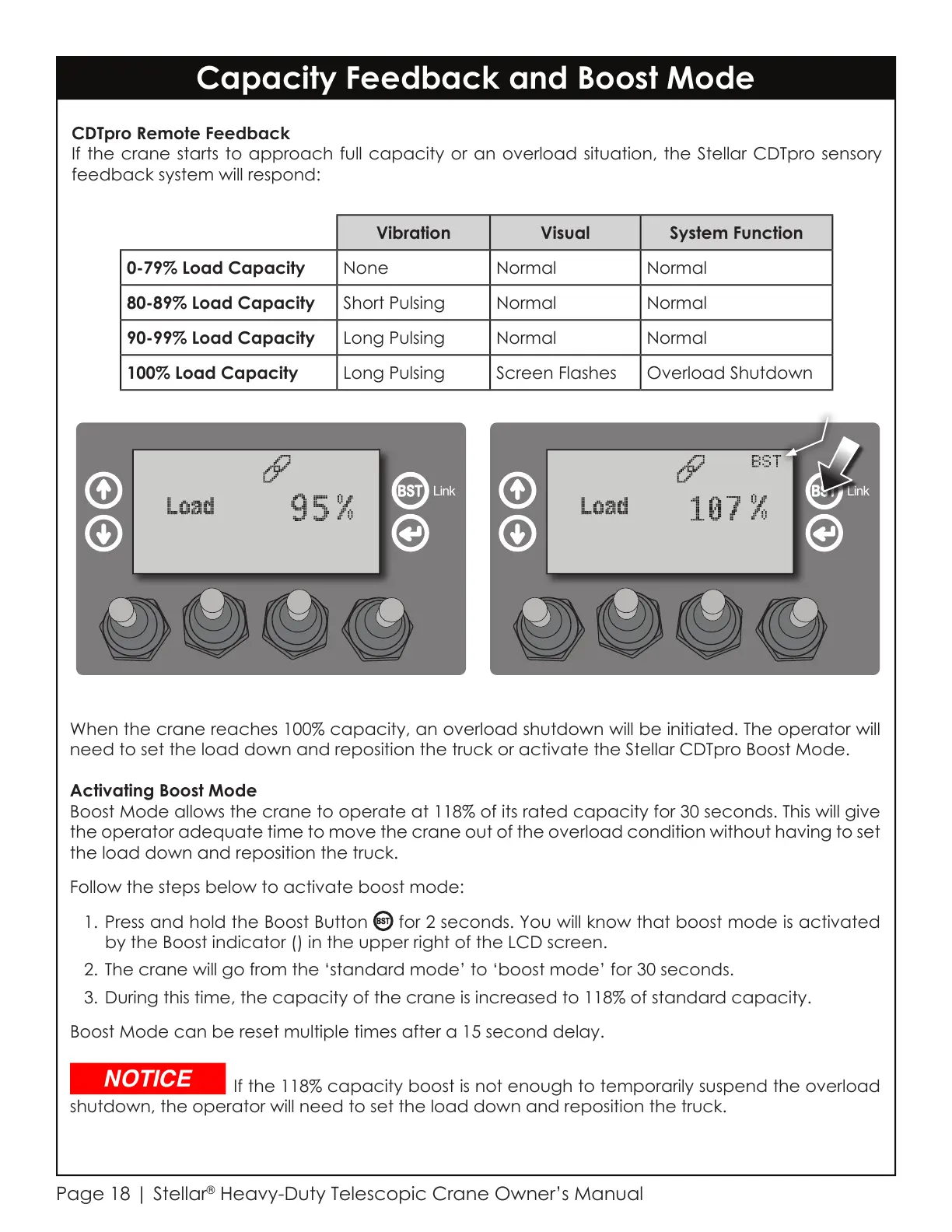

Page 18 | Stellar
®
Heavy-Duty Telescopic Crane Owner’s Manual
CDTpro Remote Feedback
If the crane starts to approach full capacity or an overload situation, the Stellar CDTpro sensory
feedback system will respond:
Capacity Feedback and Boost Mode
Vibration Visual System Function
0-79% Load Capacity None Normal Normal
80-89% Load Capacity Short Pulsing Normal Normal
90-99% Load Capacity Long Pulsing Normal Normal
100% Load Capacity Long Pulsing Screen Flashes Overload Shutdown
When the crane reaches 100% capacity, an overload shutdown will be initiated. The operator will
need to set the load down and reposition the truck or activate the Stellar CDTpro Boost Mode.
Activating Boost Mode
Boost Mode allows the crane to operate at 118% of its rated capacity for 30 seconds. This will give
the operator adequate time to move the crane out of the overload condition without having to set
the load down and reposition the truck.
Follow the steps below to activate boost mode:
1. Press and hold the Boost Button for 2 seconds. You will know that boost mode is activated
by the Boost indicator () in the upper right of the LCD screen.
2. The crane will go from the ‘standard mode’ to ‘boost mode’ for 30 seconds.
3. During this time, the capacity of the crane is increased to 118% of standard capacity.
Boost Mode can be reset multiple times after a 15 second delay.
If the 118% capacity boost is not enough to temporarily suspend the overload
shutdown, the operator will need to set the load down and reposition the truck.
