Keypad locKed
+
+
+
+
PROGRAM PUMP SETTINGS
SECONDS MODE (dry contact signal) continued
4. Program the Pump Operating Mode and the Pump Operating Time Percentage.
Unlock the Keypad
Press and simultaneously and hold for 5 seconds to unlock the keypad.
Pump Operating Mode
First, press and continue to hold , then press or ; when the display
shows 1, 5, 10, 20 or 60 SECONDS, release both buttons to select based on the
pump operating time determined in #2. The operating mode is now set.
Pump Operating Time Percentage
The pump operating time can be set from 10% to 100% in 1% increments. First,
press and continue to hold , then press or to adjust the pump
operating time percentage determined in #3. When the display shows the desired
percent, release both buttons to select. The percentage is now set.
For example, if the pump is set in the 60 seconds mode and the setting is 50%, the pump will run for
30 seconds when it receives a signal from the water meter.
MODE
%

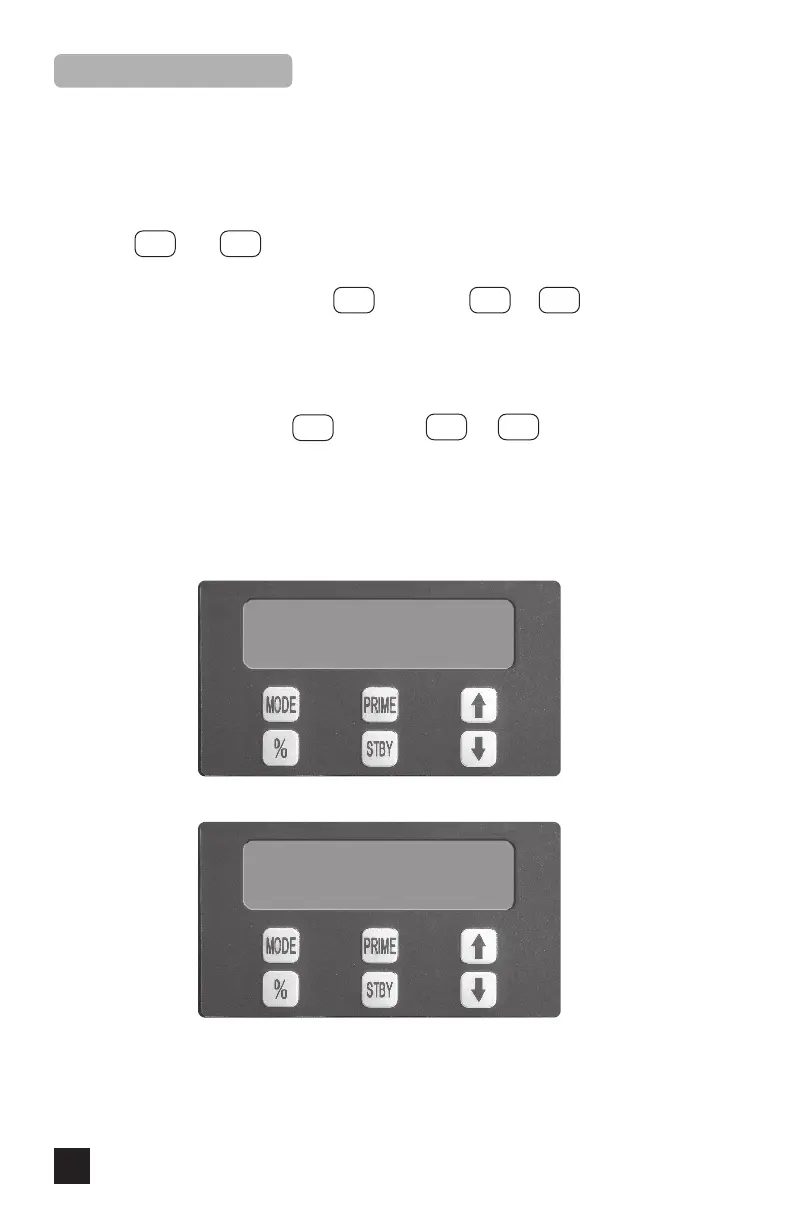

Example of control panel set for 50% of 60 seconds.
MODE
%
Example of control panel with keypad locked.
