Physical Numbers12.2
Each subscriber point in an AlphaCom XE server has a physical
number. The number is determined by the board position and the type of
module (master/slave).
There are 6 subscribers on each board of the Intercom board ASLT,
Telephone board ATLB, and AGA board.
Board in slot 1 has physical numbers 1-6 -
Board in slot 2 has physical numbers 7-12 -
Board in slot 3 has physical numbers 13-18, and so on. -
Telephone board ATLB-12 has 12 subscribers on each board. The 6 rst
lines have physical numbers according to the insertion slot, while the 6
last lines have numbers with an offset of 276 to the 6 rst numbers.
Board in slot 1 has physical numbers 1-6 and 277-282 -
Board in slot 2 has physical numbers 7-12 and 283-288 -
Board in slot 3 has physical numbers 13-18 and 289-294, and so -
on.
Since card positions 2-7 are not used in XE20, the corresponding
physical numbers are therefore missing.
PHYSICAL NUMBER TABLE
AlphaCom modules XE7 XE20 XE26
Single or master
1 - 36 1 - 6
143 - 138
1 - 138
1
st
slave
139 - 174 139 - 144
187 - 276
139 - 276
2
nd
slave
277 - 313 277 - 282
325 - 414
277 - 414
3
rd
slave
415 - 451 415 - 421
510 - 552
415 - 552

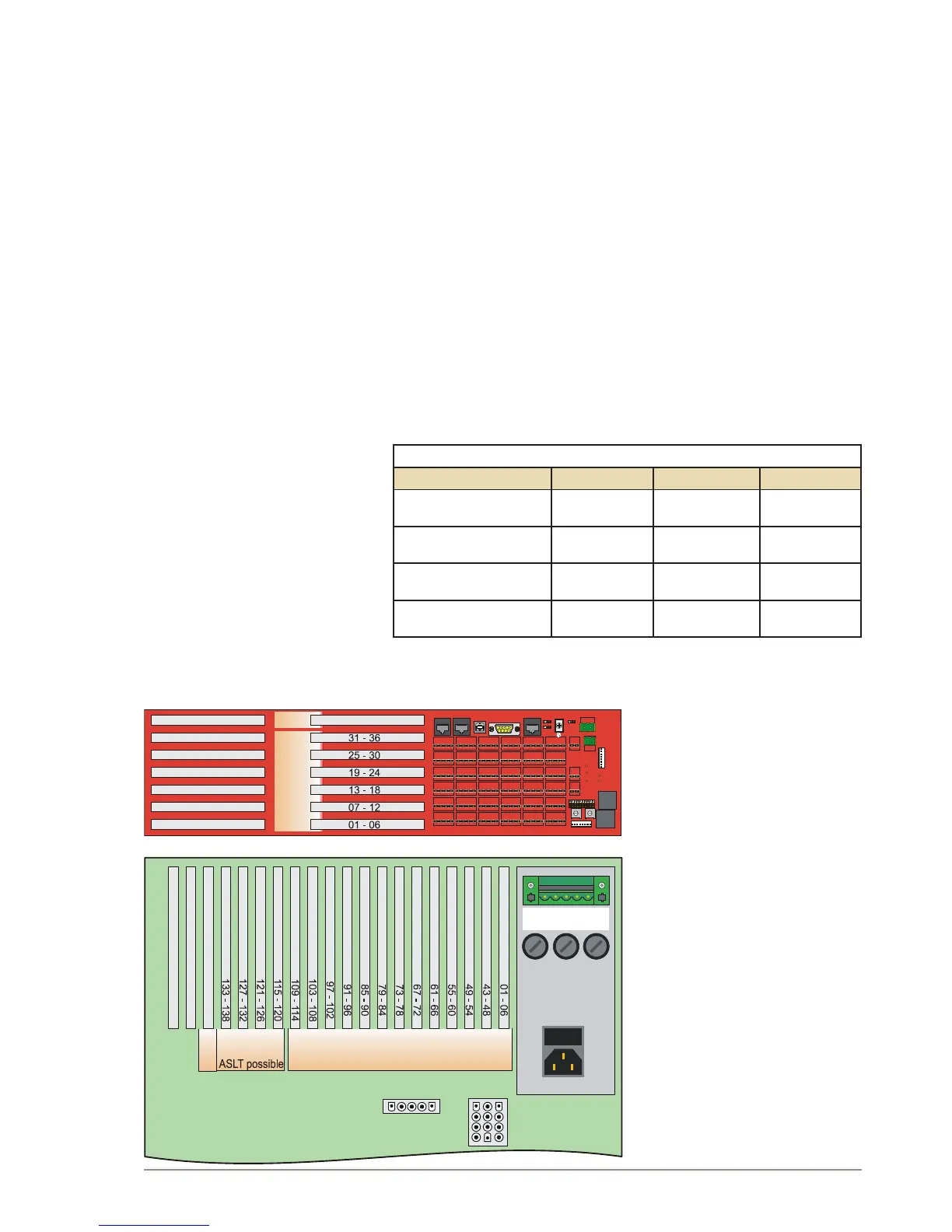

ASLT & AGA Board Positions12.3
Board positions and physical
numbers in AlphaCom XE7
Board positions and physical
numbers in AlphaCom XE20
