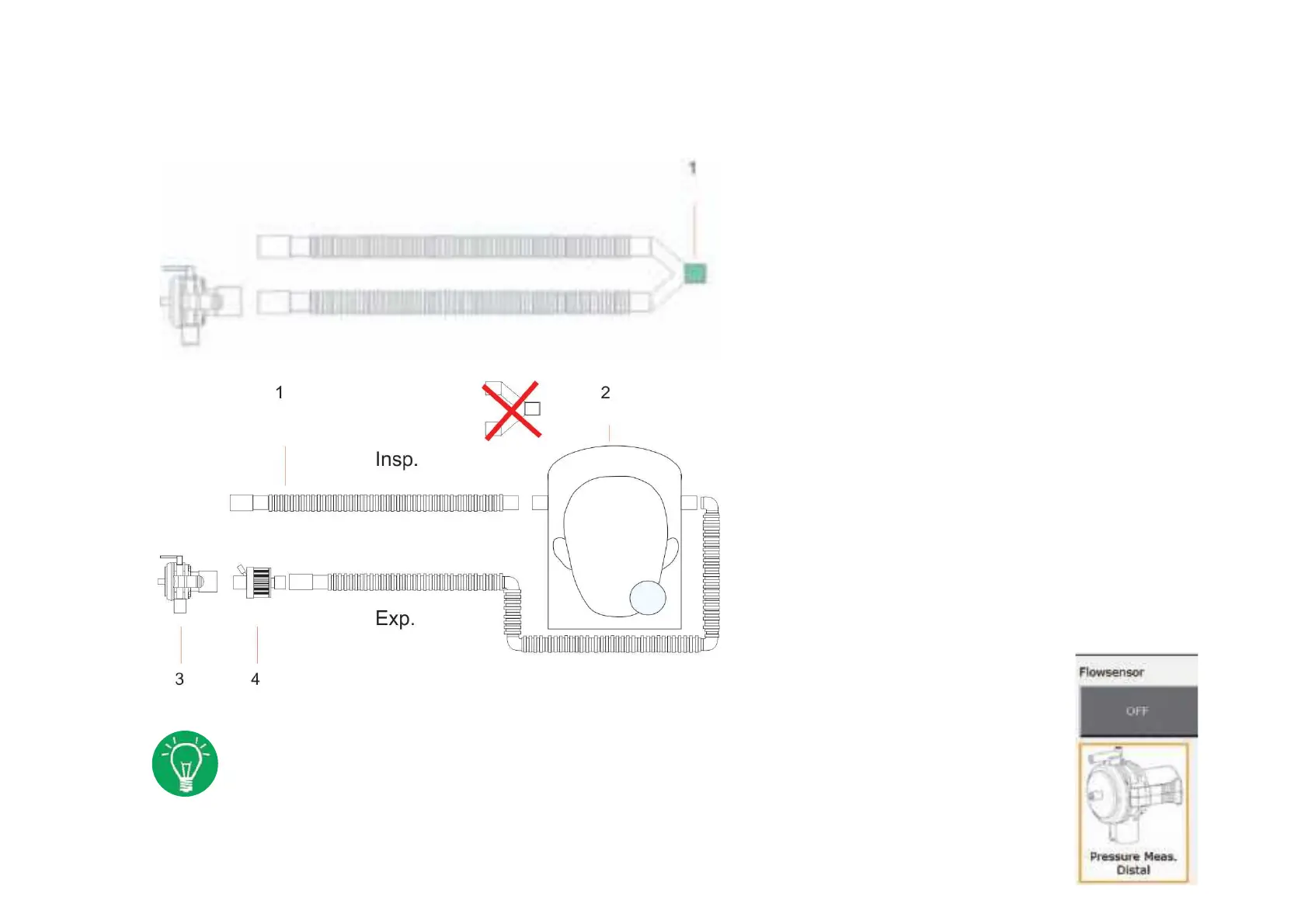

Connecting with ventilation helmet
1 Double limb tube system
2 Ventilation helmet
3 Expiration valve with pressure
measurement (Art.-No. 107061081)
4 Bacteriafilter
Connect patient and start ventilation
Settings:
Noninvasive ventilation (PC-CMV, PC-CPAP, PC-CPAP+ PSV)
Flow sensor off • Select Expiration valve with pressure measurement port
1 Start/Test EVE with double limb tube
system (Art.-No. 107061203) and Y-piece
