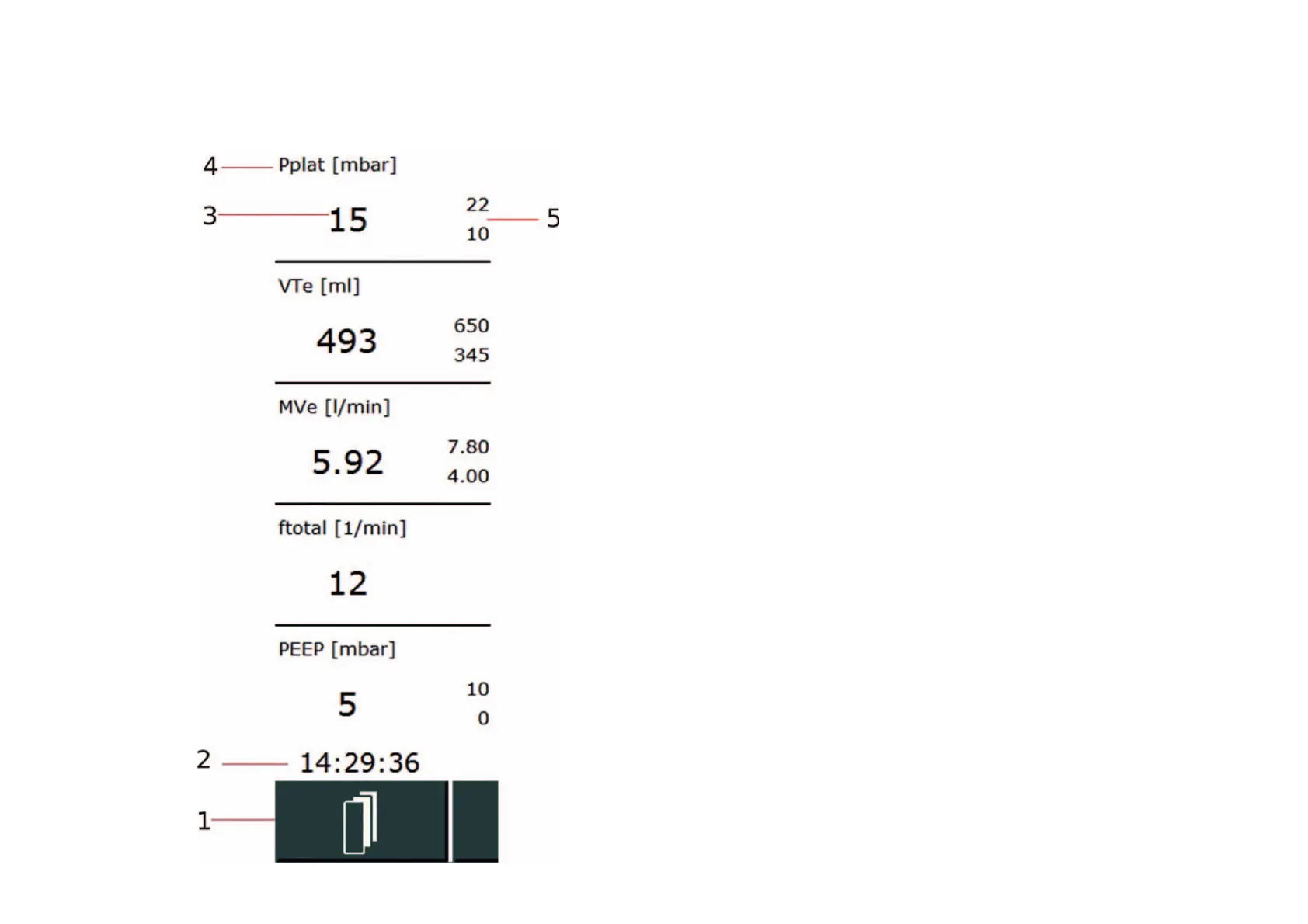

This display gives a quick view of the relevant
measured values together with the alarm
limits shown after the measured value.
1 Function field for toggling between the
measured value display and the display
of the active measured block
2 Time display
3 Measured value
4 Name of measured value including unit
5 Alarm limits display
Five measured values are displayed.
Three sets of 5 measured values each are
available. Only one set can be displayed
at a time. Use the function field to switch
between the sets.
Measured value display
