This display indicates the current ventilation
mode, the active additional functions, the patient
type and the flow sensor type.
Selecting a non-invasive ventilation mode causes
the display to turn orange. In addition, the icon
for non-invasive ventilation appears.
1 Flow sensor type
2 Icon for invasive ventilation
3 Additional function for ventilation mode
4 Ventilation mode
5 Patient type
6 Icon for non-invasive ventilation
Selecting this field opens a ventilation
menu where you can adjust the settings
to the current ventilation scenario.

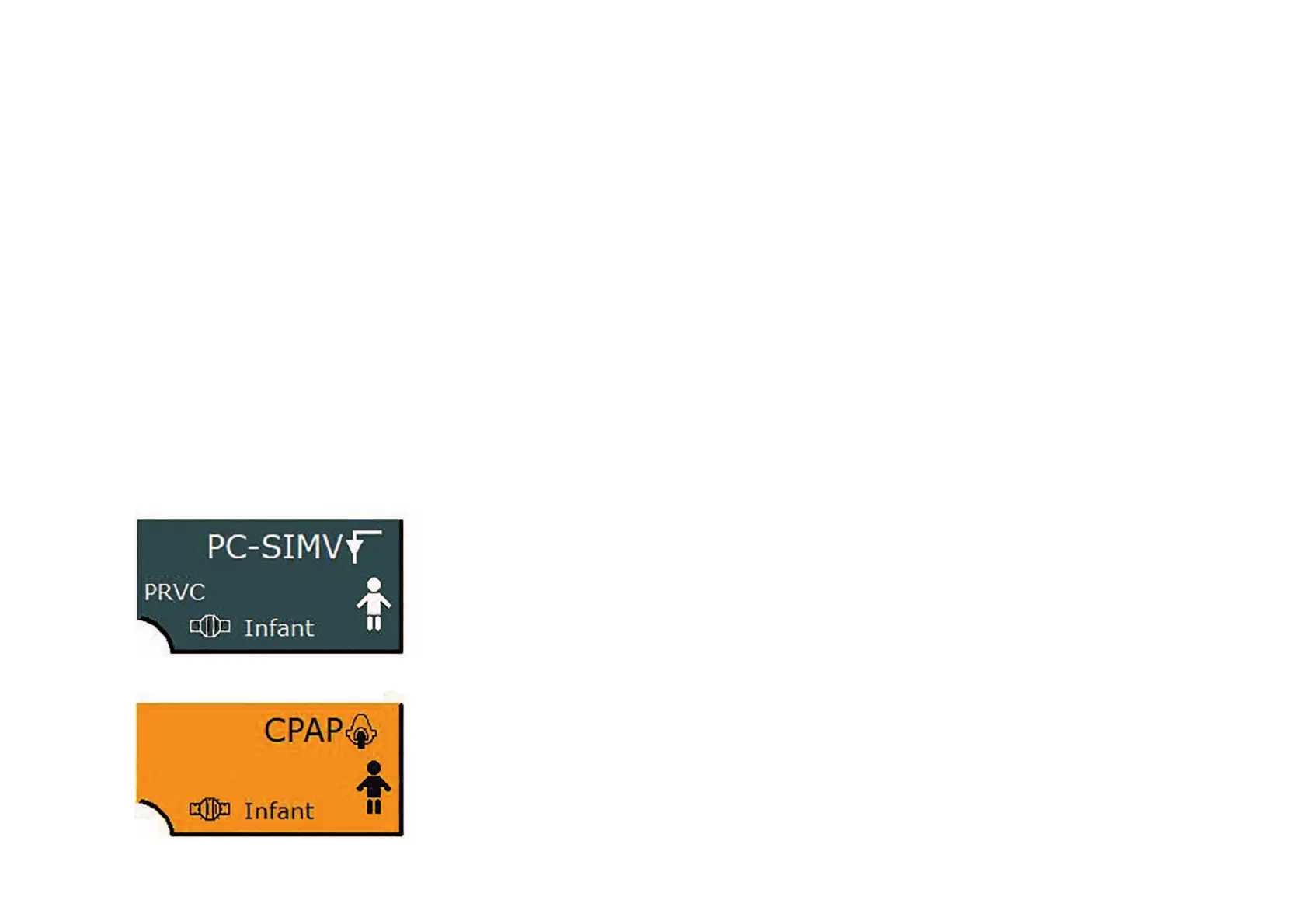

Ventilation mode display
Invasive ventilation mode
Non-invasive ventilation mode
