Stephill SSD10000S - DSE 3110 Control Module Operations

SSD10000S - SSD10000S/3PH
16
Fig.8
Fig.9 Fig.10
Once the correct connections have been made to the remote start terminals the DSE 3110 control module
will require activating to an AUTO MODE - See DSE 3110 Control Module - Overview . It will then be ready to
accept a remote start request.

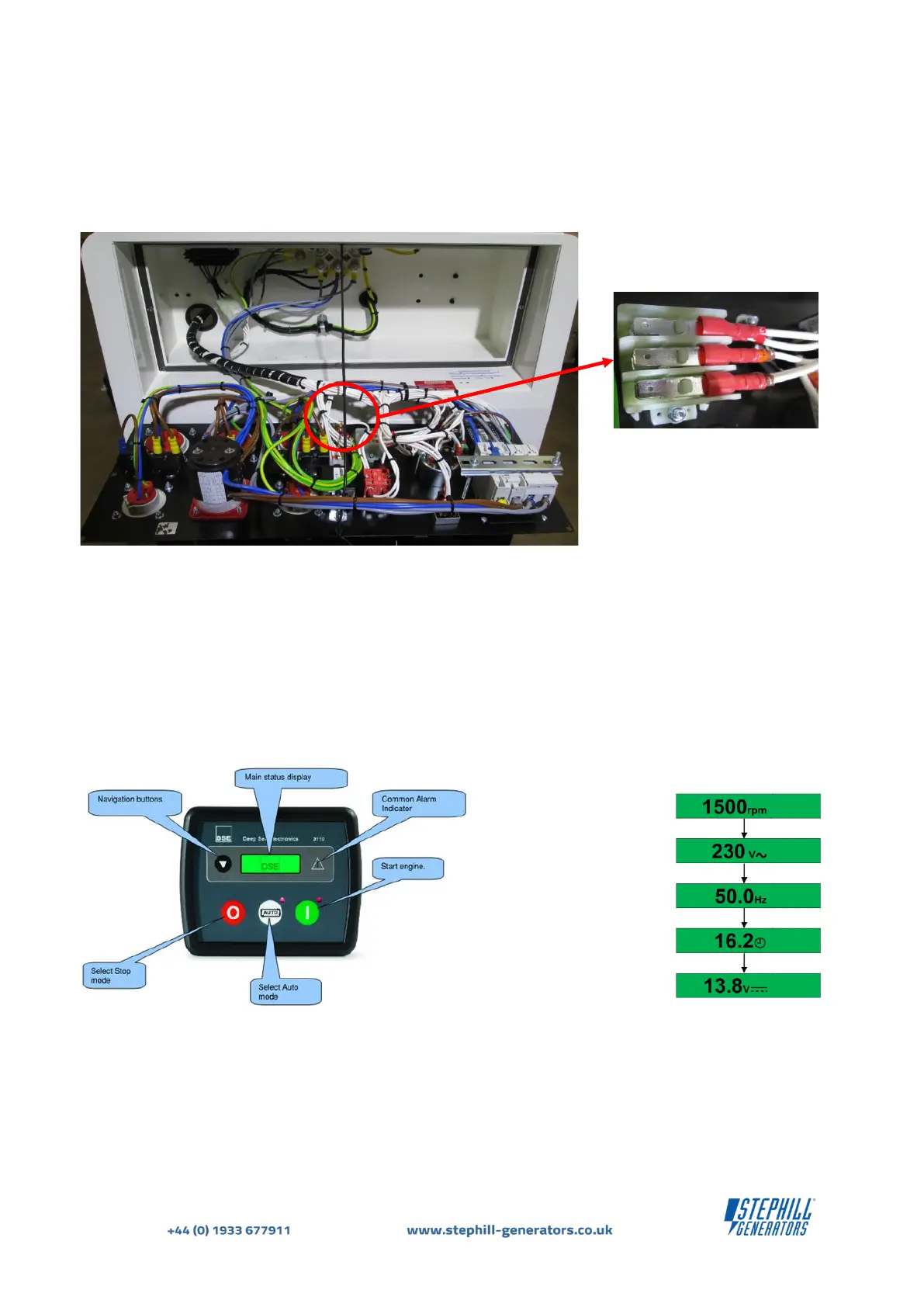

2-Wire Remote and ATS Auto Start/Stop Connection Location
Behind the control panel there is a small push-on connector block for the remote and auto start/stop
connections. Refer to the DC wiring diagram at the back of this handbook or corresponding ATS handbook for
the relative terminal positions. - Fig.7 & 8.
DSE 3110 Operation
The DSE 3110 control module is used to start/stop and monitor key elements of the engine and main AC
alternator. Fig.9 show the layout and control buttons.
DSE 3110 Control Module - Overview
Engine Speed
Generator Volts (AC)
Generator Frequency
Engine Run Time
Battery Volts (DC)
Page Order
