Stephill SSD10000S - Assembly and Wiring Diagrams

11
3
1
20
8
24
6525
21 2218 19
16
23
14
13 4 9 7
17
15 1012
Part No Description Qty
1 024-0100 SSD10000 Skid base 1
1 024-0184 SSD8500S / SSD10000S Skid base 1
2 024-0101 SSD10000 D722 Engine foot service side 1
2 024-0194 SSD10000 Z602 Engine foot service side 1
3 024-0102 SSD10000 D722 Engine foot non service side 1
3 024-0195 SSD10000 Z602 Engine foot service side 1
4 024-0139 SSD10000 Mark 2 Access cover plate 1
5 024-0002 SSD10000 Dual voltage control panel 3110 1
6 024-0116 SSD10000 Control panel divider 1
7 024-0115 SSD10000 Alternator end panel 1
8 024-0125 SSD10000 Control panel cover catch 1
9 024-0106 SSD10000 Air inlet duct 1
9 024-0124 SSD10000 PE31 Air inlet duct 1
10 024-0107 SSD10000 Air inlet duct battery side 1
10 024-0122 SSD10000 PE31 Air inlet duct battery side 1
11 024-0150 SSD10000 PE32/NPE31 Alternator cowl 2
11 024-0181 SSD10000 PE28 Alternator cowl 2
12 024-0126 SSD10000 Battery bracket 1
13 024-0104 SSD10000 Battery tray 1
14 024-0154 SSD10000 Fuel tank filler hose 1
15 024-0112 SSD10000 Fuel tank bracket 2
16 024-0129 SSD10000 Fuel tank 1
17 024-0128 SSD10000 Radiator plate 1
18 024-0158 SSD10000 Radiator air outlet plate 1
19 024-0123 SSD10000 Engine end panel 1
20 024-0103 SSD10000 Door 2
20 024-0185 SSD8500S / 10000S Door 2
21 024-0138 SSD10000 Angled skid 4
22 024-0105 SSD10000 Lifting beam 1
23 024-0137 SSD10000 Fuel filter bracket 1
24 024-0199 SSD10000 Z602 Air filter plate 1
25 024-0198 SSD10000 Alternator channel NSM 1
2
Material
Description
Fax 01933 677916
Phone 01933 677911
Drawing Number
Drawn

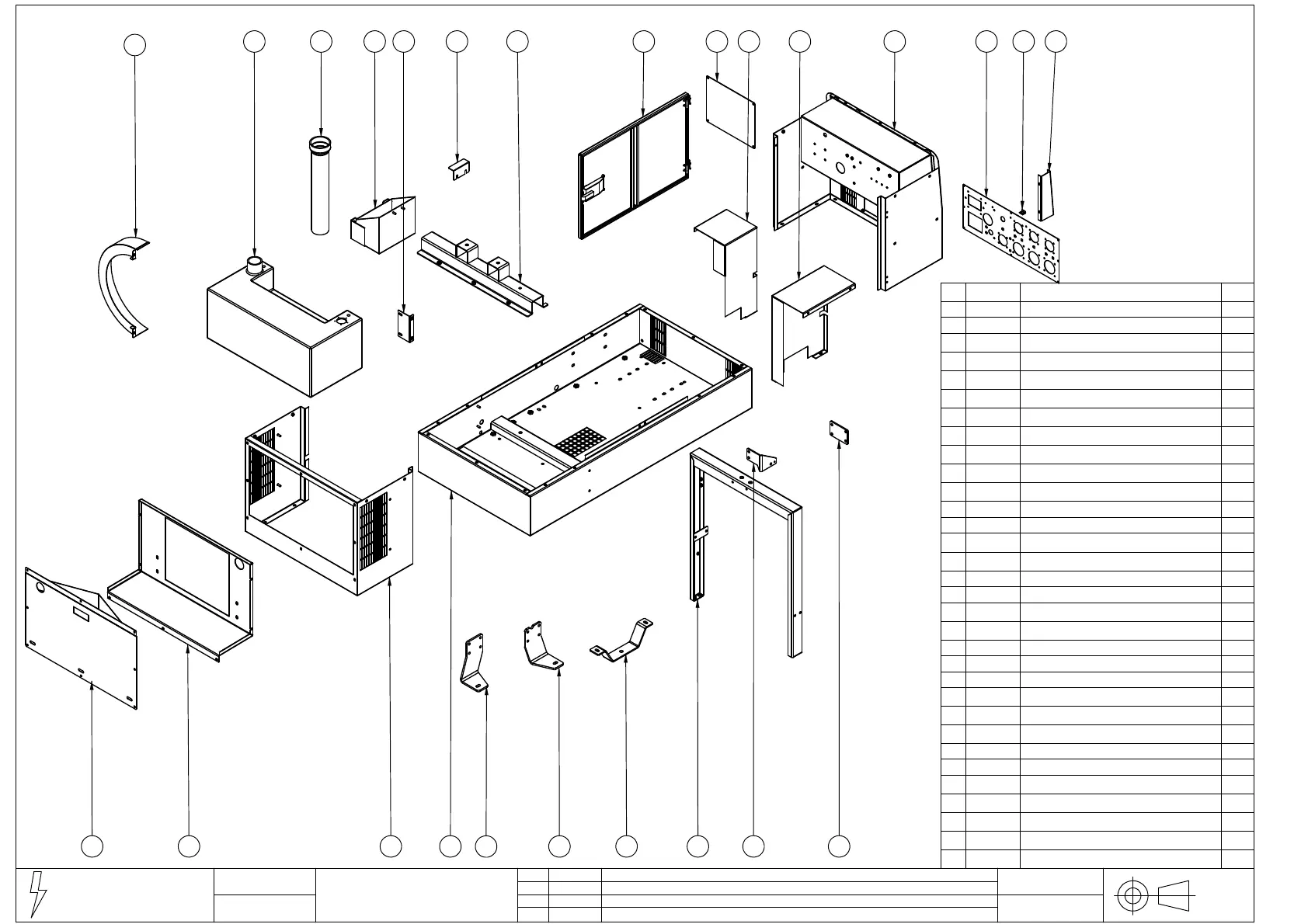

SSD8500S/10000/10000S Canopy
ed.
Colour
24-167
R Golding
D 31/01/08 New drawing
Date
Revision
Issue
PROJECTION
Mild steel
N/A
STEPHILL GENERATORS
E New drawing21/09/10
C
ANGLE
exploded view
THIRD
Part numbers add09/01/08
