Stephill SSD10000S - Page 33

81013 912 11 7 56 4 3 12
Item Part No Description Qty
1 024-0114
SSD10000 Roof
1
1 024-0186
SSD8500S/10000S Roof
1
2 024-0117 Control panel cover 1
3 024-1003 Finger pull 1
4 024-1002 Control panel lock 1
5 024-0118 Polycarbonate cover 1
6 024-1018 Hinge 2
7 024-0127 Lifting eye 1
8 048-0008 Fuel cap 1
9 024-0113 Radiator flap 1
10 023-1029 Hinge 2
11 023-1019 Cam 28mm 1
12 023-1020 Insert slot 1
13 023-1021 Housing 1
R Golding
D
21/09/10
Drawing updated.
Date
Revision
Issue
THIRD
ANGLE
PROJECTION
Colour
Material
Description
Fax 01933 677916
Phone 01933 677911
Drawing Number
Drawn

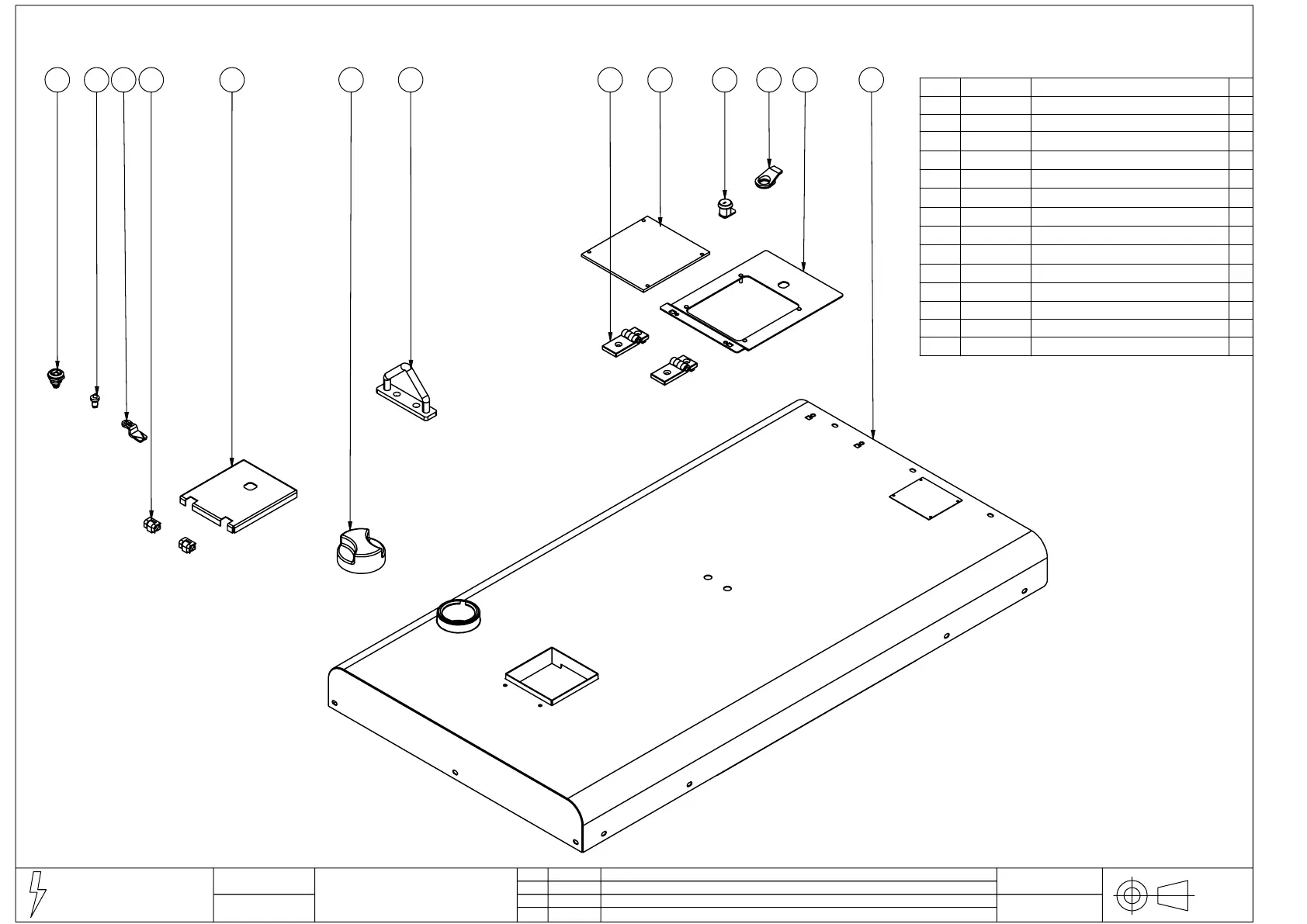

SSD8500S/10000S/10000 Roof
exploded view
24-168
Mild steel
N/A
STEPHILL GENERATORS
B Part numbers changed. 27/03/06
C Part numbers added . 09/01/08
