Part No Description Qty
1 022-0627 SSD6000 Base 1
1 022-0675 SSD6000S Base 1
2 022-0607 SSD6000 Battery tray 1
2 022-0673 SSD6000S Battery tray 1
3 022-0576 SSD6000 Engine air inlet duct 1
4 022-0575 SSD6000 Battery door 1
5 022-0598 SSD6000 Axle 1
6 027-0022 Wheel 2
7 027-0023 Wheel cap 2
8 022-0599 SSD6000 Trolley foot 2
9 022-0643 SSD6000 Handle right 1
9 022-0655 SSD6000 Light tower handle right 1
10 022-0642 SSD6000 Handle left 1
10 022-0654 SSD6000 Light tower handle left 1
11 022-0614 SSD6000 Fan cowl 1
12 022-0538 SSD6000 Engine mounting bracket 1
13 022-0697 SSD6000 NSM Alternator air inlet duct 1
14 022-0609 SSD6000 Lift beam 1
14 022-0677 SSD6000S Lift beam 1
15 022-1002 Stay 1
16 022-0666
SSD6000 Mark 5 Trolley foot brace
1
16/06/15
R Golding
A 04/02/13
New drawing
Date RevisionIssue
Descriptions updated.
+44 (0)1933 677916
PROJECTION
Colour
Material
Description
Fax :
Phone :
Drawing Number
Drawn
ANGLE
view
22-697
Mild steel
N/A
STEPHILL GENERATORS
+44 (0)1933 677911
THIRD

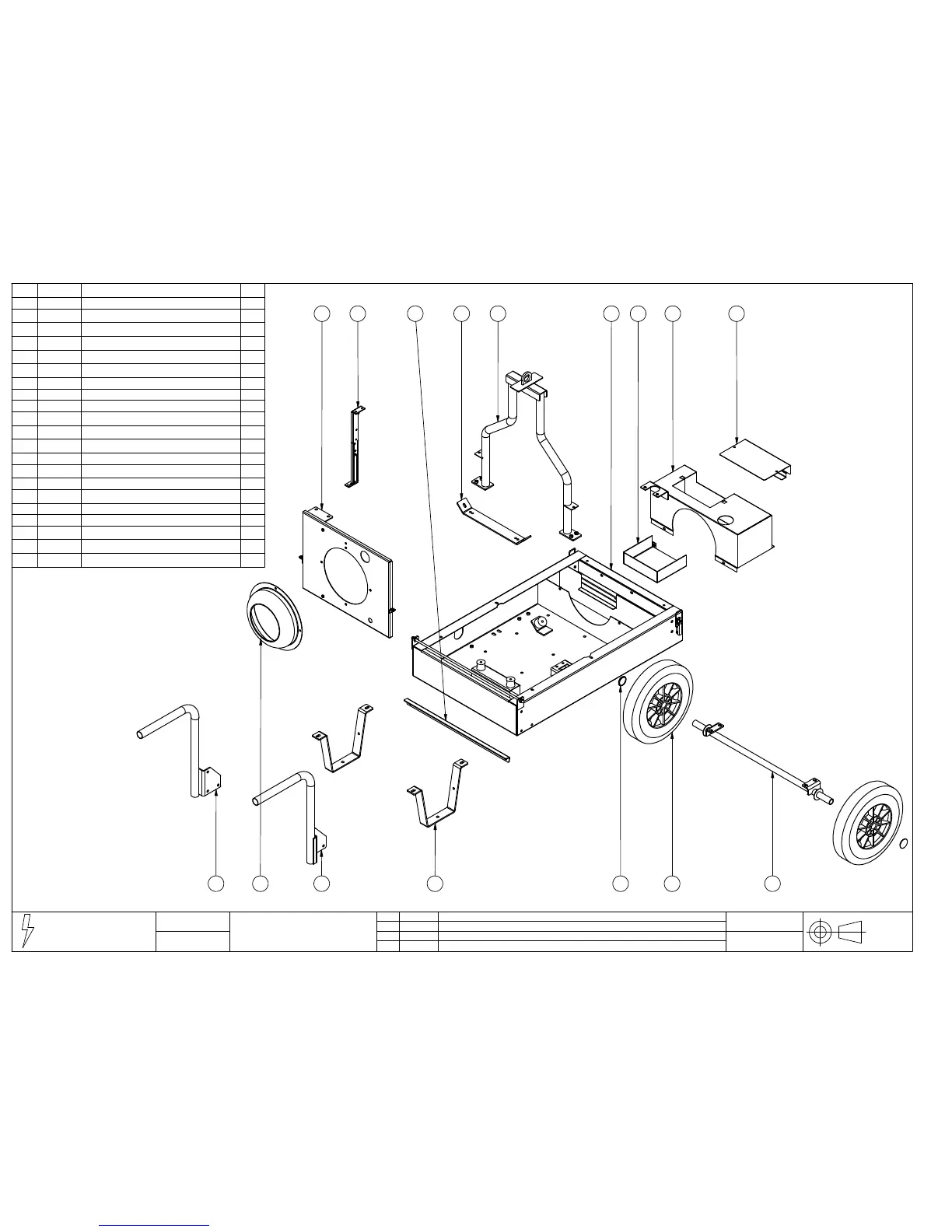

SSD6000 & SSD6000S Base exploded
B
3
16
41 2
5
15 12
8
910
13
14
6711
