7.8 Viewing the instruments
It is possible to scroll to display the different pages of information by repeatedly operating
the scroll button
Once selected the page will remain on the LCD display until the user selects a different
page or after an extended period of inactivity, the module will revert to the status display.
When scrolling manually, the display will automatically return to the Status page if no
buttons are pressed for the duration of the configurable LCD Page Timer.
If an alarm becomes active while viewing the status page, the display shows the Alarms
page to draw the operator’s attention to the alarm condition.

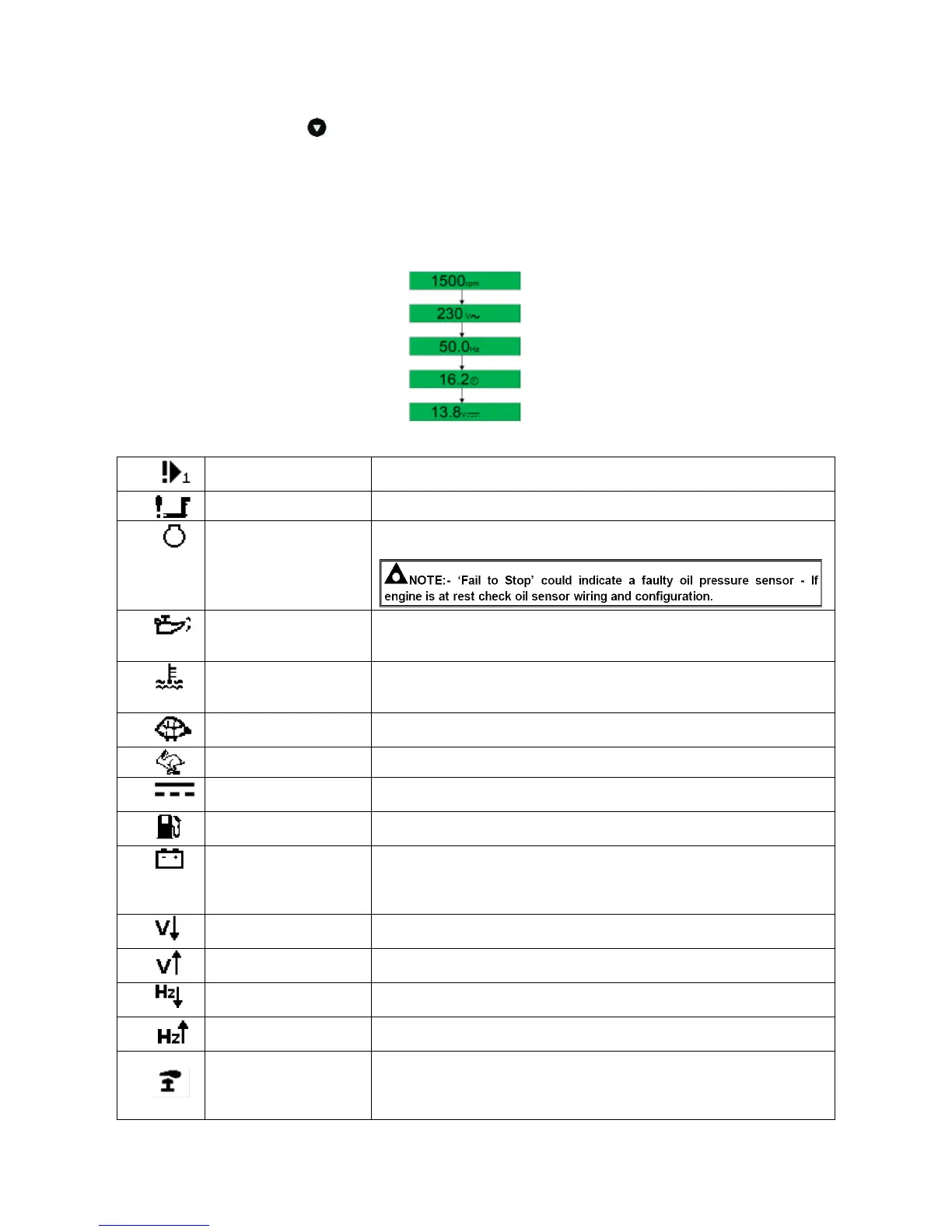

Page order:-
Engine speed
Generator volts
Generator frequency
Engine run time
Battery volts
7.9 Fault icons
AUXILIARY INPUTS
Auxiliary inputs can be user configured and will display the message
as written by the user.
FAIL TO START
The engine has not fired after the pre-set number of start attempts.
FAIL TO STOP
The module has detected a condition that indicates that the engine is
running when it has been instructed to stop.
LOW OIL PRESSURE
The module detects that the engine oil pressure has fallen below the
low oil pressure pre-alarm setting level after the Safety On timer has
expired.
ENGINE HIGH
TEMPERATURE
The module detects that the engine temperature has exceeded the
high engine temperature pre-alarm setting level after the Safety On
timer has expired.
UNDERSPEED
The engine speed has fallen below the underspeed pre alarm
setting.
OVERSPEED
The engine speed has risen above the overspeed pre alarm setting.
CHARGE FAILURE
The auxiliary charge alternator voltage is low as measured from the
W/L terminal.
LOW FUEL LEVEL
The level detected by the fuel level sensor is below the low fuel level
setting. (Optional)
BATTERY UNDER
VOLTAGE /
BATTERY
OVER VOLTAGE
The DC supply has fallen below or risen above the low/high volts
setting level.
GENERATOR UNDER
VOLTAGE
The generator output voltage has fallen below the pre-set pre-alarm
setting after the Safety On timer has expired.
GENERATOR OVER
VOLTAGE
The generator output voltage has risen above the pre-set pre-alarm
setting.
GENERATOR UNDER
FREQUENCY
The generator output frequency has fallen below the pre-set pre-
alarm setting after the Safety On timer has expired.
GENERATOR OVER
FREQUENCY
The generator output frequency has risen above the pre-set pre-
alarm setting.
EMERGENCY STOP
The emergency stop button has been depressed. This is a failsafe
(normally closed to battery positive) input and will immediately stop
the set should the signal be removed. Removal of the battery positive
supply from the emergency stop input will also remove DC supply
