Elevated mounting: For those who are experienced with tuning elevated vertical antenna radial systems
(more info on pg. 37-38) it is possible to mount the BigIR with its base raised off of the ground. This can be
done in a number of ways, however it is crucial that the vertical mounting post (if conductive) is electri-
cally disconnected from the radials/counterpoise to prevent arcing.
N = 2/band
* Top view

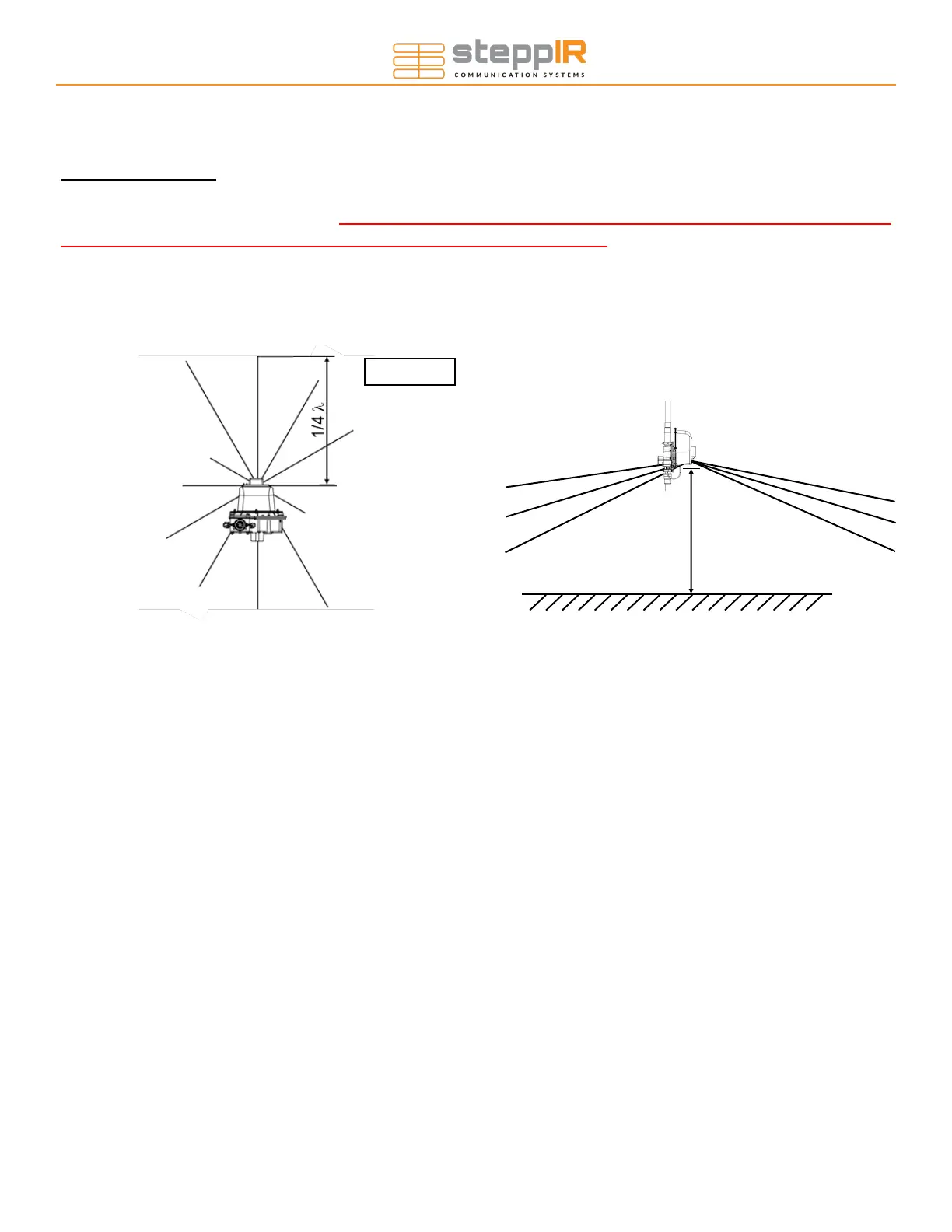

Figure 1.03: Elevated radials Figure 1.04: Example of elevated radials
* Side view
≥5ft
*for 80m
VERTICAL MOUNTING POST OVERVIEW CONT.
To Next Page
