SteppIR SDA 100 - Tranciever Interface to Radio; Tranciever Interface with y Cable; Controller Stacked with y Cable; Tranciever Interface to PC Only

2112 116TH AVE NE SUITE 1-5, BELLEVUE WA, 98004 WWW.STEPPIR.COM TEL: (425)-453-1910 FAX: (425)-462-4415
14

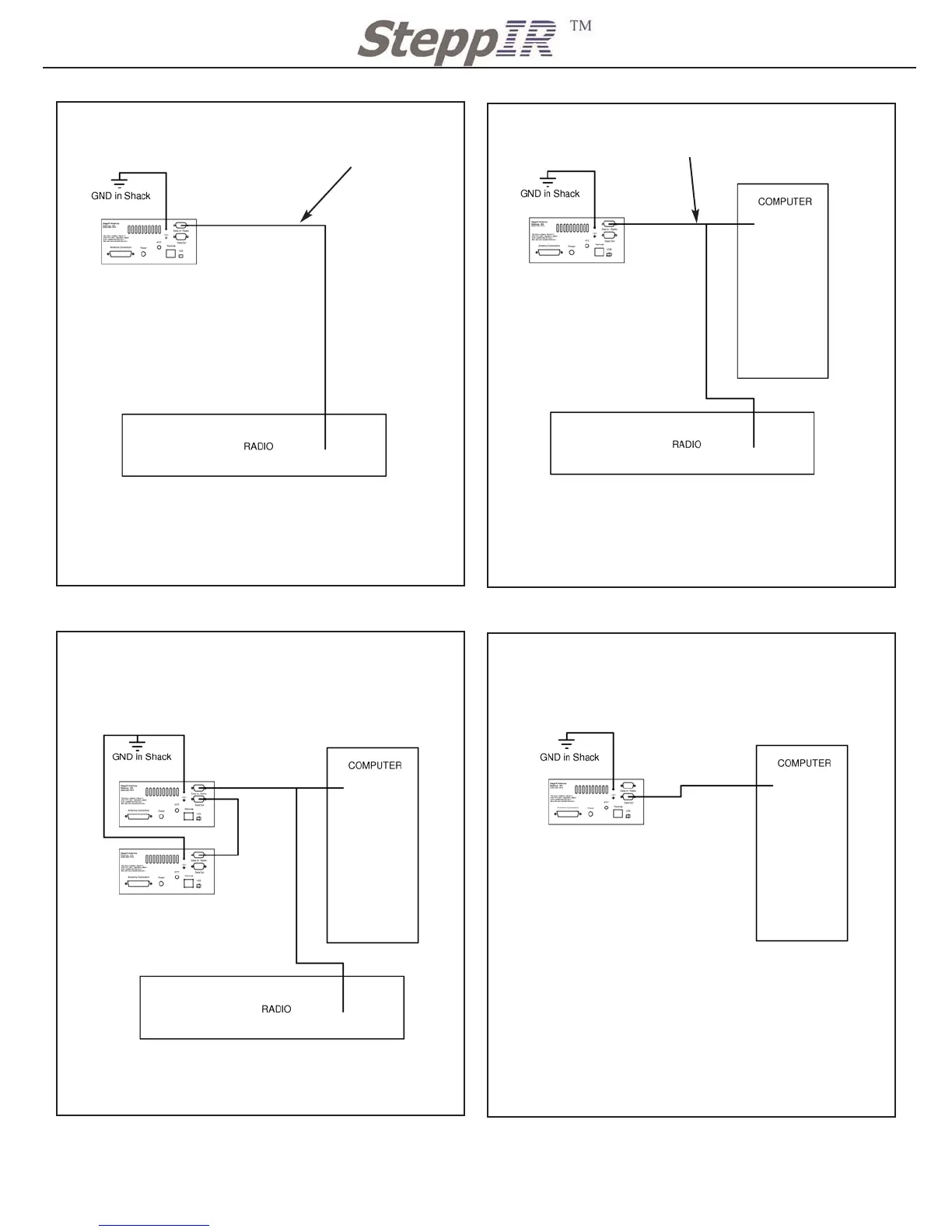

Figure 3
Tranciever Interface to Radio
Figure 4
Tranciever Interface with Y cable
Figure 5
Controller stacked with Y cable
Figure 6
Tranciever Interface to PC only
Linking cable for the controller and
Radio to communicate. (Cable is differ-
ent depending on radio type and model)
Y cable is used to link the antenna con-
troller and radio to a PC. Used with
logging programs.
Shown below are two SteppIR controllers
stacked using a S-16 cable. Also being
used is the Y cable to link both controllers
to the radio and a computer.
S-16
Y cable
This configuration is showing the controller
just being linked to a computer with a S-16
cable. This can be used if the station has
many different radio’s linked to a computer
and will allow the user to control everything
from the computer.
S-16
