2112 116TH AVE NE SUITE 1-5, BELLEVUE WA, 98004 WWW.STEPPIR.COM TEL: (425)-453-1910 FAX: (425)-462-4415
16

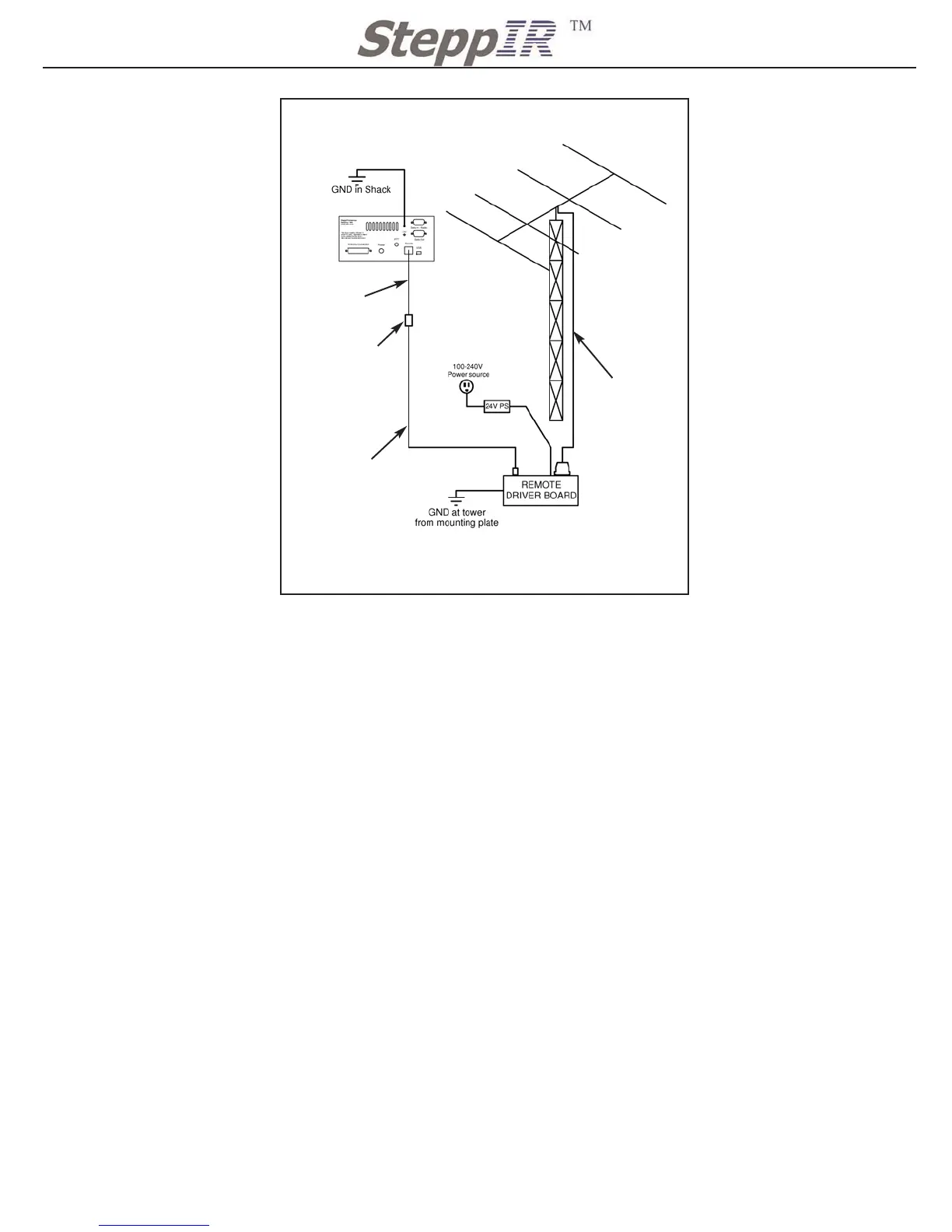

Figure 8
Remote Driver Board
Provided CAT5
Crossover Cable
Provided Female to
Female RJ 45 Connector
CAT 5 cable that is not
provided with option
Antenna Control Cable
Advanced Lightning Protection (ALP)
This option is for protecting the controller against static and lightning. This is done by using a
passive electronic circuit. The ALP driver board has relays that are mounted to the driver
board to physically disconnect the controller circuit from the antenna when there is a large
surges of current.
There is no set up or activation for this option it is ready as soon as your controller is pow-
ered up.
ALP is included with the purchase of the Remote Driver Board Option. IT will be located in
the remote driver board not in the controller driver board.
WARNING
This option does not 100% guarantee that your controller is protected against lightning
or static build up. This option is intended to greatly reduce the chance of blow-
ing a driver chip from lightning and static.
WARNING
