SOURCE WATER CONNECTION
Supply Tee
• Turn off the water on the municipal supply line.
• Remove the existing hose, wrap the supply tee threads with thread tape, and install the supply tee
on the cold water supply. Tighten the tee with a wrench. Hot water should
not be used to feed the Sterisil® Ac+ System. For now the main valve will
remained closed.
TUBING CONNECTIONS
To make a connection with quick connect fittings, simply push the tubing
into the fitting until it stops. When making cuts, be sure to cut at a right
angle to the tubing itself, and inspect the ends for burrs. Be sure to factor
any movement in the system into the tubing length so as to not put tension
on ports or components.

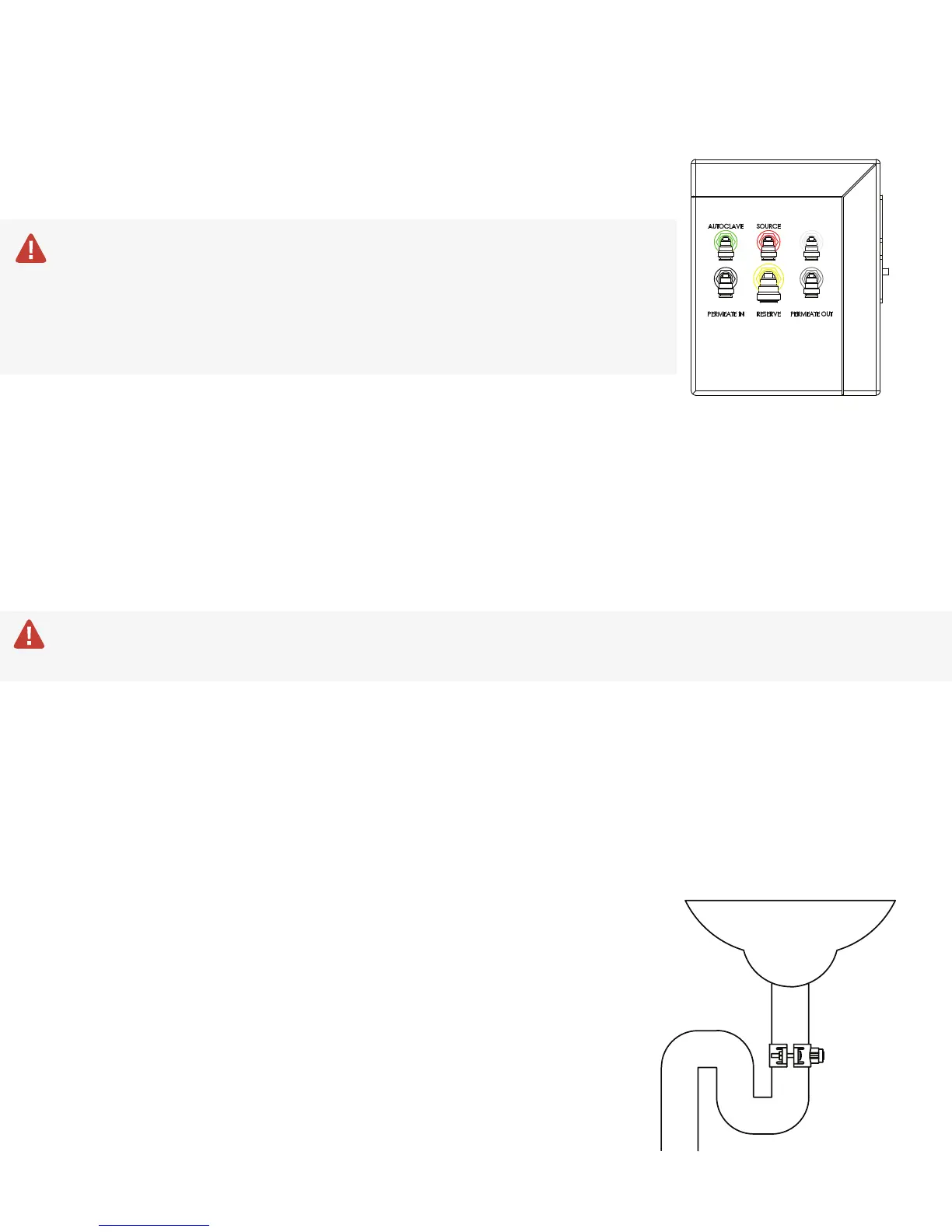

Source Water: (Supply Tee to Source Port) (Red fitting indicator)
OPTIONAL ADD-ONS: Booster Pump and Pre-filter Kit, see pages 10-11.
• Insert the white 1/4” tubing into the supply tee. The other end of this tubing will run to the “SOURCE”
port on the side of the system.
• Cut the tubing and install a 1/4” Inline Ball Valve.
• Cut the tubing and install Single Check Valve (SCV) on this line.
Autoclave Port: (Green fitting indicator)
• Run 1/4” tubing from the green “AUTOCLAVE” port on the system to the white Autoclave Faucet.
Permeate Pump:
IMPORTANT: The Permeate Pump must be mounted with the long arrow pointing up. The Permeate
Pump will not function properly if positioned sideways or upside down.
• Run 1/4” tubing from bottom of Stage 3 to “BRINE IN” on the Permeate Pump.
• Cut and insert the Flow Restrictor with the arrow pointing towards the Permeate Pump.
• Run 1/4” tubing from “BRINE OUT” on the Permeate Pump to Drain Saddle Valve (DSV).
• Note: If you have a floor drain that is accessible, you can always run tubing straight from the
“BRINE OUT” port on the pump to the floor drain. If not, you will need to install the DSV on an
existing drain pipe. Ensure tubing is secured into the drain.
• Run 1/4” tubing from “PERMEATE IN” on the Permeate Pump to black “PERMEATE IN” port on the
System.
• Run 1/4” tubing from “PERMEATE OUT” on the Permeate Pump to grey “PERMEATE OUT” port on the
System.
Drain Saddle Valve (DSV):
• Start by marking the drain pipe where you intend to drill your 1/4” hole.
The DSV will need to be before or after the peatrap.
• Attach the gasket and mount the saddle valve with the provided nuts
and bolts to the drain pipe.
• Once the DSV is properly mounted remove the gray collet from the
hole.
• Drill through the hole into the drain pipe.
• When you drill the hole, be sure not to drill through the other side of the
drain pipe.
• Clear any metal shavings from the hole, then reinsert the collet.
(PLUGGED)
