34 | Spare parts
Fortress Calypso
Po
s
Qt
y
A
r
t
i
c
l
e
n
umb
er
D
e
s
c
r
i
p
t
i
o
n

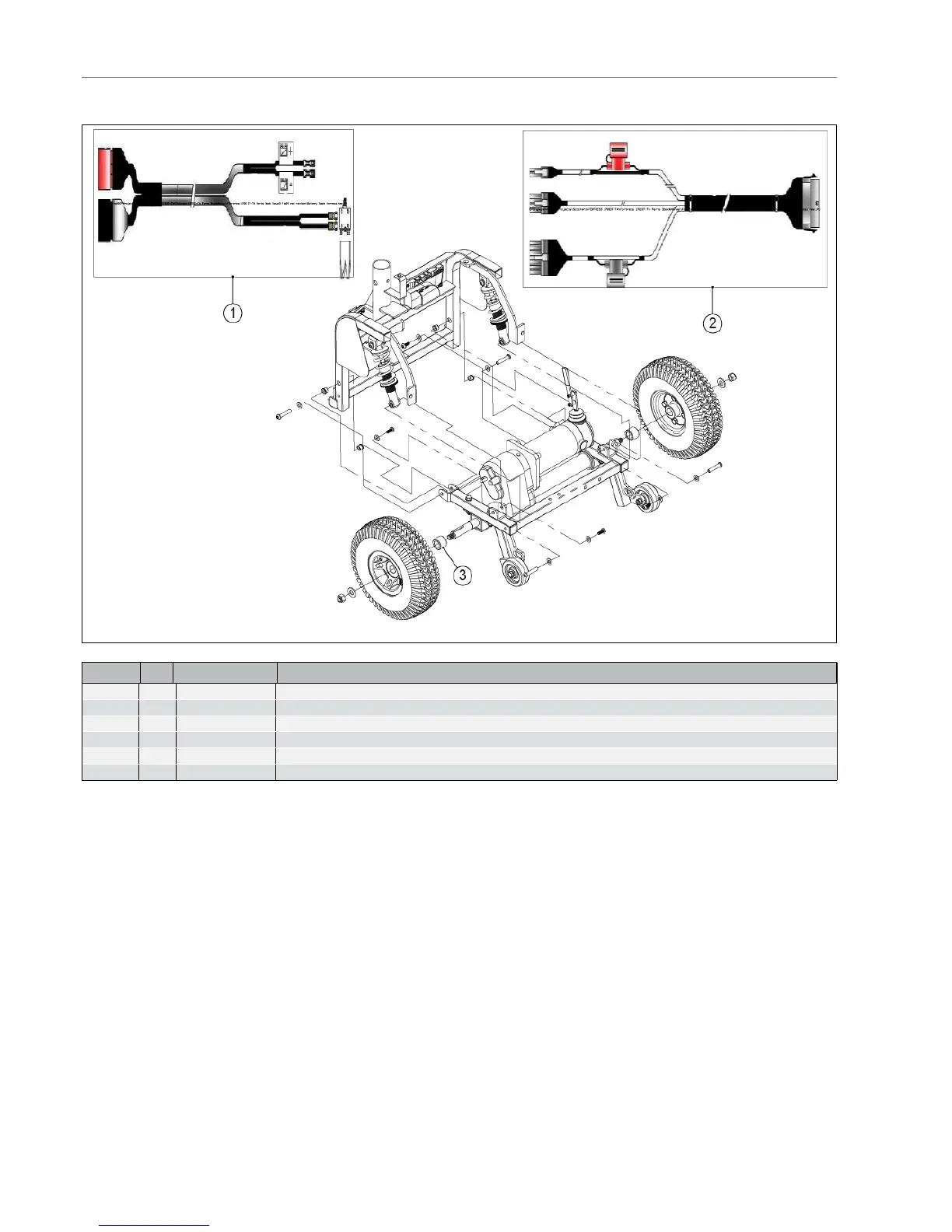

18 Rear frame assy
Pos
Qt
y
Ar
ticle number
Descr
ipt
ion
1
1
1008990
Cable battery harness
2
1
1015177
Main harness + controller harness
3
1
1014753
Rear wheel spacer
-
2
9002752
Set battery connection covers
-
1
1014125
Battery cable with red connector
-
1
1014126
Battery cable with black connector
33
35
Table of Contents
Table of Contents
4
Introduction
6
This Manual
6
Identification of the Product
6
Symbols Used in this Manual
6
Intended Use
7
Safety
8
Personnel Qualification
8
Identification on the Product
8
Temperature
8
Electromagnetic Radiation and Interference
8
Markings on the Scooter
9
Transportation
10
Technical Specifications
10
Modifications / Adaptations
10
Tools
11
Programmer
11
Spare Parts
12
Use of the Parts Lists
12
A Overview 3W
13
B Overview 4W
15
Wheel Front Assy
17
Wheel Rear Assy
18
Bumper Rear Assy
19
Top Console Assy
20
Bottom Console Assy
21
Tiller Assy
22
Tiller Strut Assy
23
Cover Battery Assy
24
Cover Motor Assy
25
Frame Front 3W Assy
26
Front Fork Assy
27
Cover Front 3W Assy
28
Frame Front 4W Assy
29
Swing Arm Right Assy
30
Swing Arm Left Assy
31
Cover Front 4W Assy
32
Rear Frame Top Assy
33
Rear Frame Assy
34
Rear Frame Bottom Assy
35
Transaxle Assy
36
Captain Seat Assy
37
Armrest Adjustable Assy
38
Options
39
Service Instructions
40
Batteries
40
Tyres
41
Adjustment Options and Repairs
41
Troubleshooting
42
Technical Product Information
43
CE Declaration and Standards
43
Technical Specifications
43
Driving Programs
44
Scooter Settings
45
Electrical Diagram
46
Warranty
47
Definitions of Terms
47
Warranty Period Table
48
Serial Number
52
